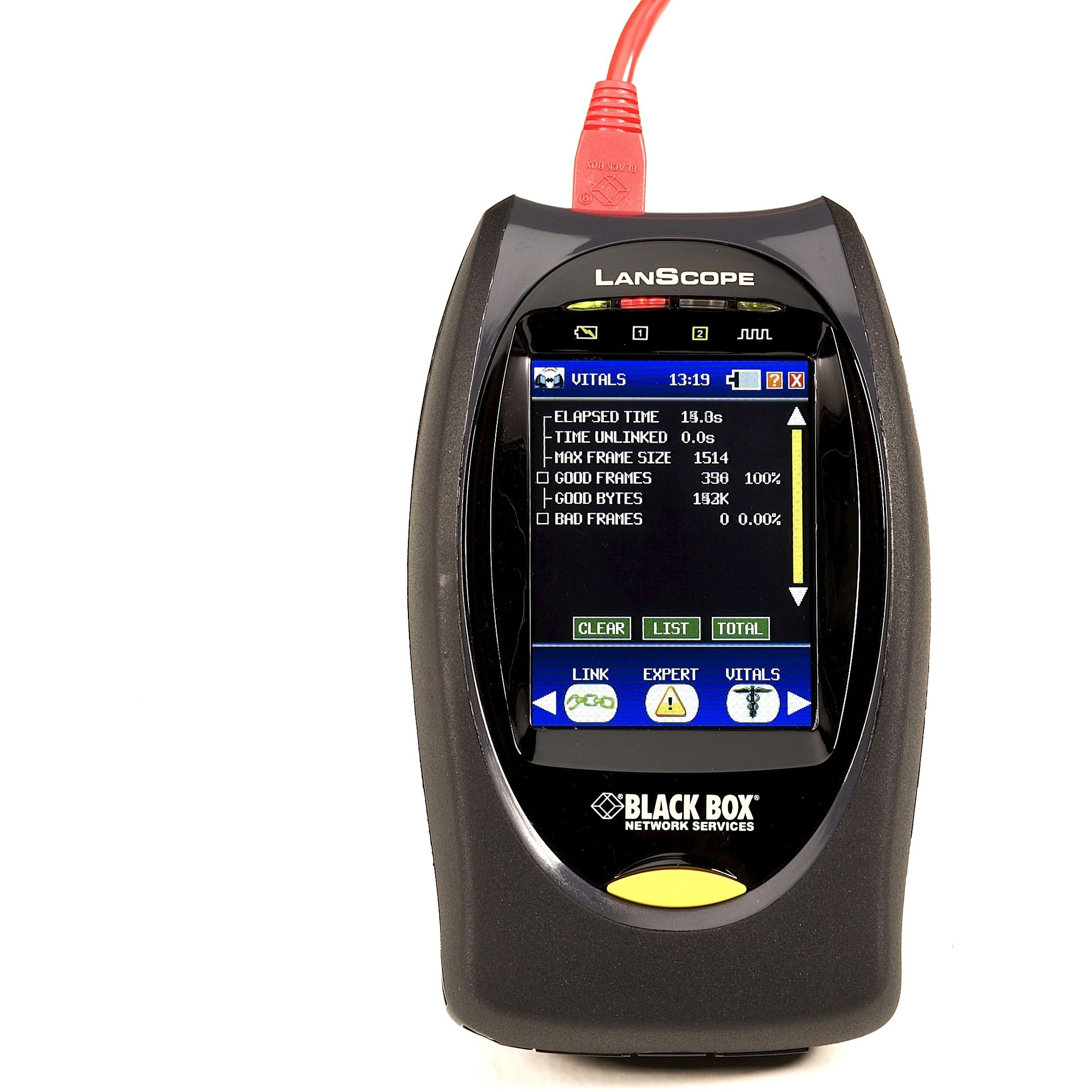

Black Box Lanscope Network Analyzer
PoE Testing, Twisted Pair Cable Testing, Open Circuit Testing, Short Circuit Testing, Reversed Pair Testing, Split Pair Testing, Cable Length Testing - LCD - 1 x USB - 2 x Network (RJ-45) - Twisted Pair - Gigabit Ethernet
$4542.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LANSCOPE |
| Brand Name | Black Box |
| Product Name | Lanscope Network Analyzer |
| Marketing Information | Make the Lanscope Network Analyzer an essential part of your tool kit. Use it for installing, monitoring, maintaining, upgrading, and troubleshooting any network. With this one tool, you have one of the most complete suites of testing and analysis functions available at a very affordable price. Use the Inline mode to non-intrusively monitor network traffic (10/100/1000BASE-T) to identify protocols, port usage, VoIP statistics, and network utilization. The Lanscope can capture and store up to 10,000 packets with user-defined filters for detailed analysis in the field. Or download test results over the network or to a flash drive. The analyzer features two RJ-45 ports, which you can use for tests such as PING, Link, Trace, DHCP, and Discovery to quickly identify network problems. The Lanscope can also generate up to 100% traffic loading with control of packet rate and size to demonstrate network performance at various traffic levels. You can perform a stress test that generates traffic and measures performance in accordance with RFC 2544. Run the test using the two independent ports on a single unit or run it with a second unit located remotely on the network. PoE tests include voltage and inline current measurement to determine the actual power used by a device. Lastly, use the Lanscope to test cables for shorts, opens, split pairs, and reversed pairs; measure cable length; and to generate tones for cable tracing. |
| Product Type | Network Testing Device |
Technical Information
| Device Function |
|
Interfaces/Ports
| USB | Yes |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |

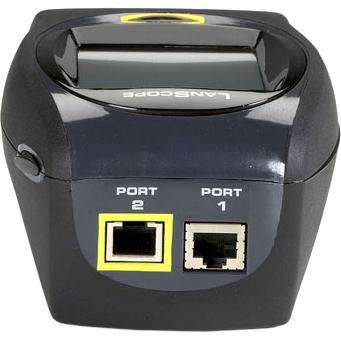

| Number of Network (RJ-45) Ports | 2 |
Media & Performance
| Media Type Supported | Twisted Pair |
Network & Communication
| Network Standard | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
Display & Graphics
| Display Screen Type | LCD |
| Touchscreen | Yes |
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
Physical Characteristics
| Height | 2.80" (71.12 mm) |
| Width | 4" (101.60 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 635 g |
Miscellaneous
| Certifications & Standards | CE |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Condition | No |
| UPC | 822088129899 |
Warranty
| Limited Warranty | 1 Year |
