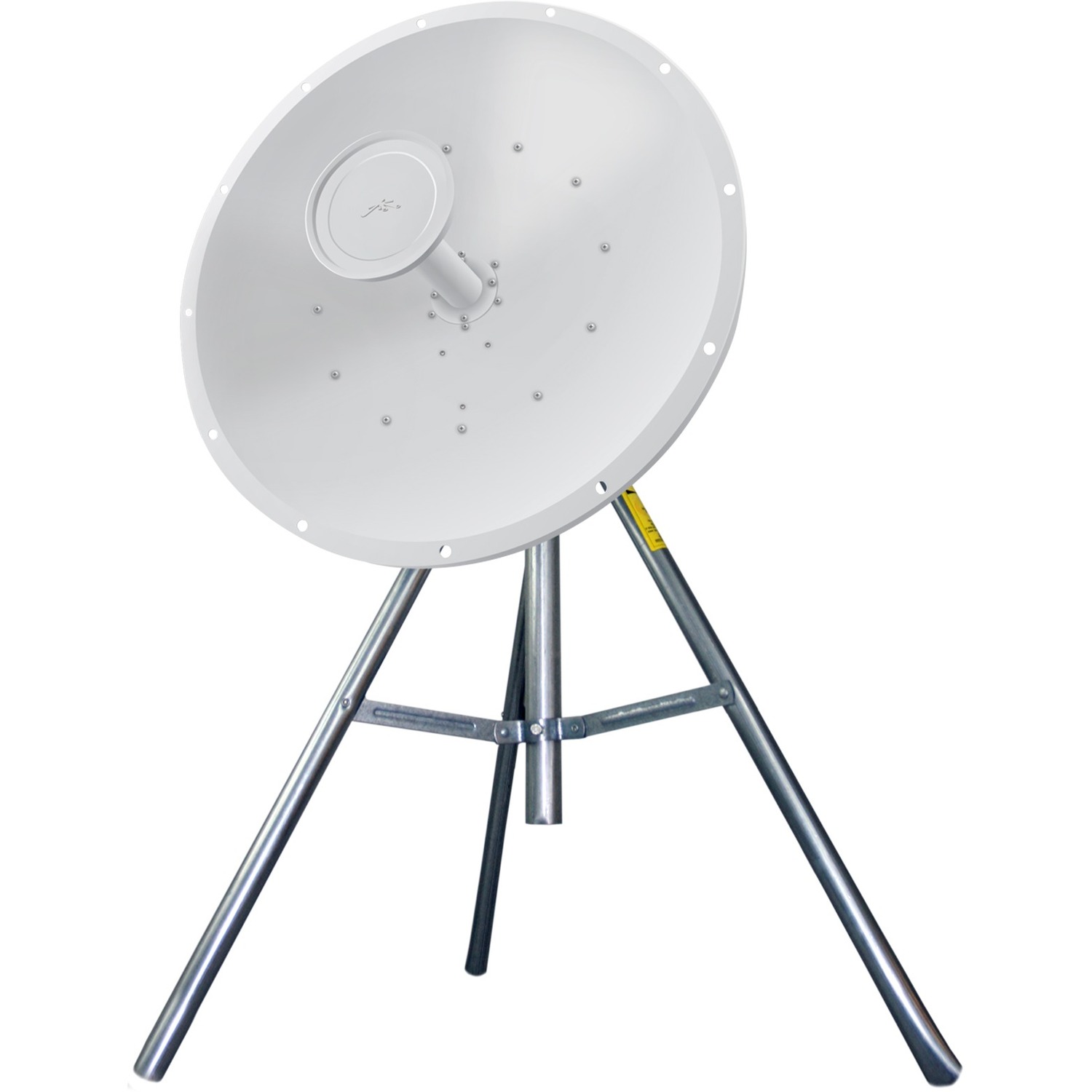

Ubiquiti airMAX Carrier Class 2x2 PtP Bridge Dish Antenna
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | RD-5G31-AC |
| Brand Name | Ubiquiti |
| Product Line | RocketDish |
| Product Model | RD-5G31-AC |
| Product Name | airMAX Carrier Class 2x2 PtP Bridge Dish Antenna |
| Marketing Information | Pair the RocketM's radio with the RocketDish antenna's reach to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul. On the right is one example of how the RocketDish can be deployed. Superior Performance The Ubiquiti Research and Development team engineered the RocketDish RD-5G31-AC with high isolation and Front-to-Back (F/B) ratio. The main benefit is improved Signal-to-Noise Ratio (S/N or SNR). The improved F/B ratio and lower sidelobes reduce the interference from other transmitters in the area - potentially on the same tower. The improved S/N ratio allows a higher-order modulation to be used, for example, 128QAM rather than 16QAM. This in turn increases the number of bits per second for a fixed bandwidth, which is also known as the data rate. |
| Product Type | Antenna |
| Frequency Band Type | SHF |
| Operating Frequency Range | 5.1 GHz to 5.8 GHz |
| Antenna Gain (Isotropic) | 31 dBi |
| Polarization | Dual Linear |
| Survival Wind Speed | 2200 in/s (55880 mm/s) |
| Features | Weather Proof |
| Number of Connectors | 1 |
| USB | No |
| Height | 13.74" (349 mm) |
| Width | 29.45" (748 mm) |
| Depth | 29.45" (748 mm) |
| Form Factor | Pole |
| Weight (Approximate) | 16.76 lb (7600 g) |
| Application/Usage | Base Station |
| Package Contents |
|
| Compatibility | Ubiquiti RocketM Base Station |
| Certifications & Standards | ETSI: EN 302 326 DN2 |
| Country of Origin | China |
| Condition | No |
| UPC | 810354021411 |
