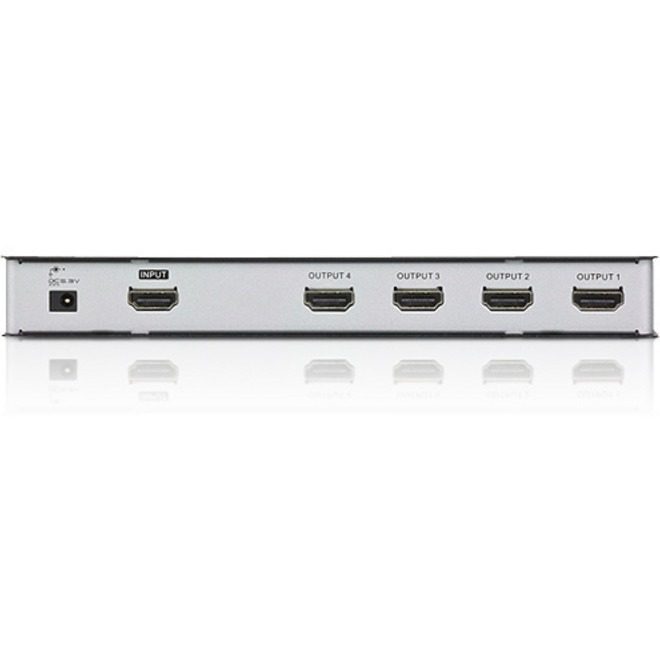

ATEN 4-Port HDMI Splitter

Part No. VS184A

by ATEN Technology, Inc

ATEN 4-Port HDMI Splitter

1 x HDMI In - 4 x HDMI Out

Part No. VS184A

by ATEN Technology, Inc

$190.99
General Information
ManufacturerATEN Technology, Inc
Manufacturer Part NumberVS184A
Brand NameATEN
Product ModelVS184A
Product Name4-Port HDMI Splitter
Marketing Information

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

More from the Manufacturer

Packaged Quantity1
Product TypeSignal Splitter
Interfaces/Ports
HDMI InYes
HDMI OutYes
Number of HDMI Inputs1
Number of HDMI Outputs4
Power Description
Input Voltage3 V DC
Physical Characteristics
Product MaterialMetal
Height0.98" (25 mm)
Width3.15" (80 mm)
Length7.87" (200 mm)
Weight (Approximate)470 g
Miscellaneous
Package Contents
  • 4-Port HDMI Splitter
  • 1 x Power Adapter
  • 1 x HDMI Cable
  • 1 x User Instructions
Additional Information
  • Connects one HDMI source to four HDMI displays at the same time
  • HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports Dolby True HD and DTS HD Master Audio
  • Long distance transmission - up to 15 m (24 AWG)
  • Supports up to 340MHz bandwidth for high performance video
  • Signaling rates up to 3.4 Gbits in support of 1080p display
  • Plug-and-play - no software installation required
Country of OriginChina
Environmentally FriendlyYes
ConditionNo
UPC672792004377
