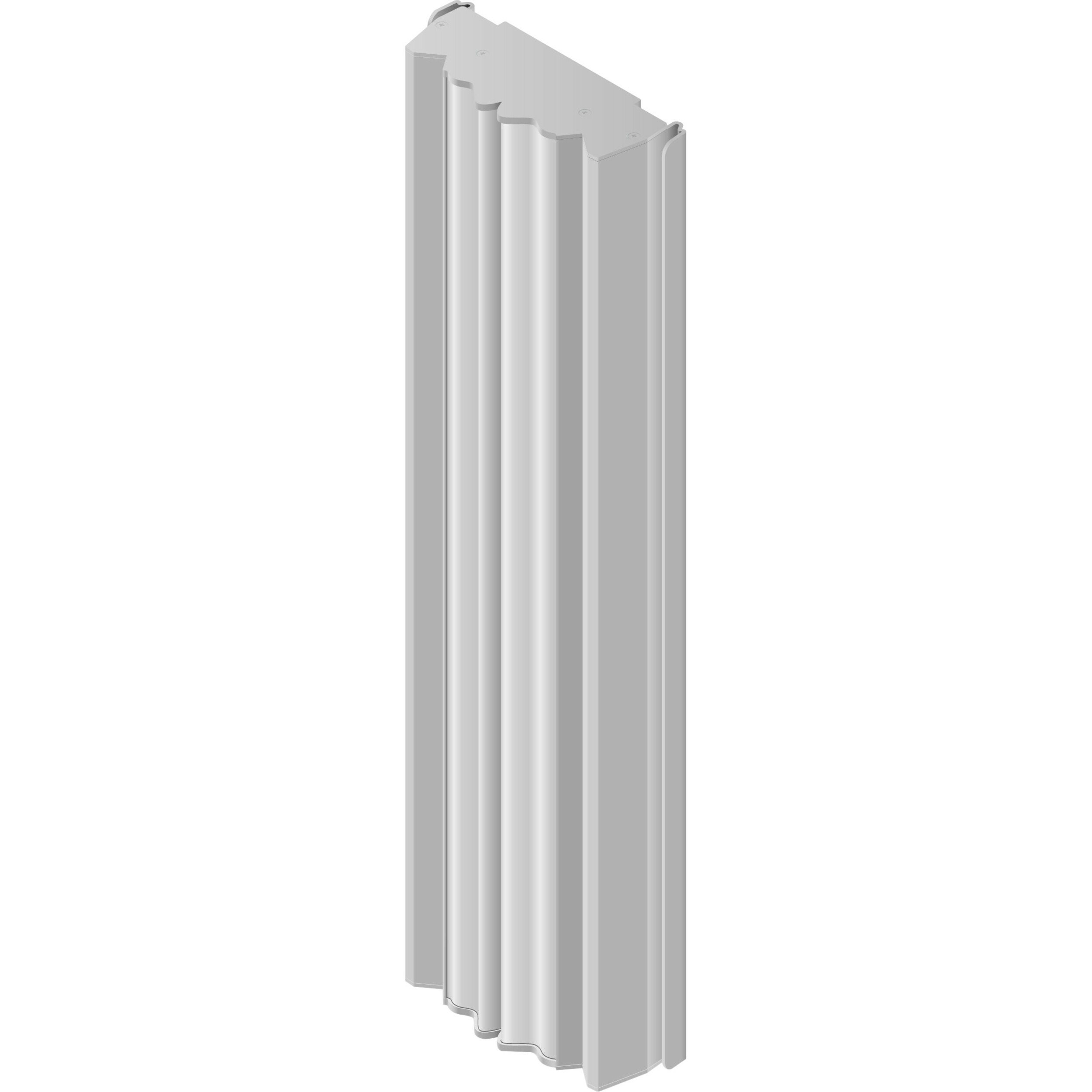

Ubiquiti 5 GHz 2x2 MIMO BaseStation Sector Antenna
Range - SHF - 5.15 GHz to 5.85 GHz - 22 dBi - Base StationPole
$265.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | AM-5AC22-45 |
| Brand Name | Ubiquiti |
| Product Line | airMAX |
| Product Model | AM-5AC22-45 |
| Product Name | 5 GHz 2x2 MIMO BaseStation Sector Antenna |
| Marketing Information | airMAX® ac 2x2 BaseStation Sector Antenna The airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac. |
| Product Type | Antenna |
Technical Information
| Frequency Band Type | SHF |
| Operating Frequency Range | 5.15 GHz to 5.85 GHz |
| Antenna Gain (Isotropic) | 22 dBi |
| Polarization | Dual Linear |
| Survival Wind Speed | 55555.56 mm/s |
| Features | MIMO Technology |
Interfaces/Ports
| Number of Connectors | 2 |
| Connector Type | RF |
| USB | No |
Physical Characteristics
| Height | 29.53" (750 mm) |
| Width | 8.46" (215 mm) |
| Depth | 3.70" (94 mm) |
| Form Factor | Pole |
| Weight (Approximate) | 6 kg |
Miscellaneous
| Application/Usage | Base Station |
| Package Contents |
|
| Compatibility | Ubiquiti Rocket 5ac R5AC-PTMP Base Station |
| Certifications & Standards | EN 302 326 DN2 |
| Environmentally Friendly | Yes |
| Condition | No |
| UPC | 810354021404 |
Warranty
| Limited Warranty | 1 Year |
