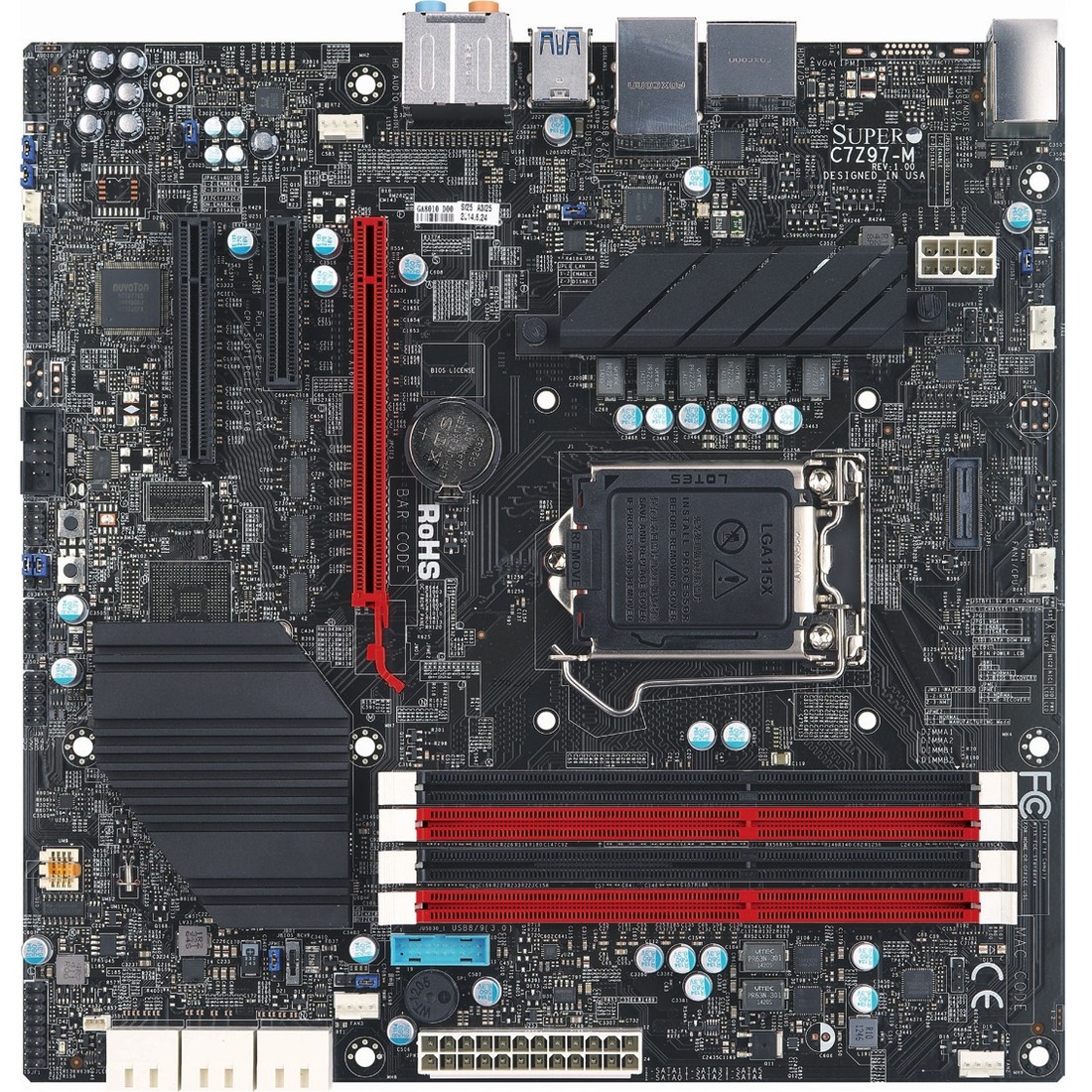

Supermicro C7Z97-MF Workstation Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150 - Micro ATX
32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
$399.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-C7Z97-MF-O |
| Brand Name | Supermicro |
| Product Model | C7Z97-MF |
| Product Name | C7Z97-MF Workstation Motherboard |
| Marketing Information | Z97 chipsets / Socket H3 Boards Supermicro's new motherboard models using Intel Z97 Express Chipset supports 4th generation Desktop Core i7/i5/i3 Processors, Pentium and Celeron. The Z97 new platform supports overclocking of CPU and Memory with increase of up to 50% in performance, with XTU management tool. Z97 platform supports triple displays and collage display and 4K HD resolution graphics. Ideal applications include gaming, workstation and high frequency trading. |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Workstation Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | Z97 Express |
| Total Processor Supported | 1 |
| Processor Socket | Socket H3 LGA-1150 |
| Processor Supported |
|
| 64-bit Processing | Yes |
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 32 GB |
| Memory Standard | DDR3-1600/PC3-12800 |
| Memory Technology | DDR3 SDRAM |
| Memory Speed Supported | 1600 MHz |
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | On-board Video Chipset |
| Graphics Memory Technology | DDR3 SDRAM |
| Graphics Memory Accessibility | Shared |
Audio
| Sound Controller Model | ALC1150 |
| Audio Channels | 7.1 |
Network & Communication
| Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 3 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
Interfaces/Ports
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 4 |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Microphone Port | Yes |
| VGA | Yes |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| PS/2 Port | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.0 Ports | 2 |
| Onboard Serial Header | Yes |
| Onboard LEDs Header | Yes |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
Miscellaneous
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Condition | No |
| UPC | 0672042166831 |
