This kit converts a cart for use in telepresence applications, combining the power of videoconferencing with the benefits of StyleView. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.

• 10" Height x 12" Width x 10.5" Depth - Large Lower Drawer
• 3.75" Width - Codec/CPU Holder

Product Weight: 17.7 lbs

• Shipping Weight: 22.8 lbs
• Description: SV Telepresence Kit, Single Monitor, for SV43/44 carts
• Includes large lower drawer, camera shelf, codec/CPU holder, travel stop, mounting hardware
• Video camera, monitors, codec, and telepresence and computing equipment not included
• Total maximum load on height-adjustment assembly = 39 lbs (17.7 kg). This is the sum of the following components: LCD pivot = 5-14 lbs (2.3-6.4 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart's main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)
• Note: Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers. When calculating load on pivot, also include weight of camera. Combined weight of LCD and camera should not exceed 20 lbs (9.1 kg). Combined weight of LCD, camera and CPU should not exceed 27 lbs (12.3 kg)
• LCD and worksurface adjust 12" (30 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 17" (43 cm)
• ? Portrait screen orientation may be incompatible with widescreen displays > 19"
• Internal Dimensions: large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

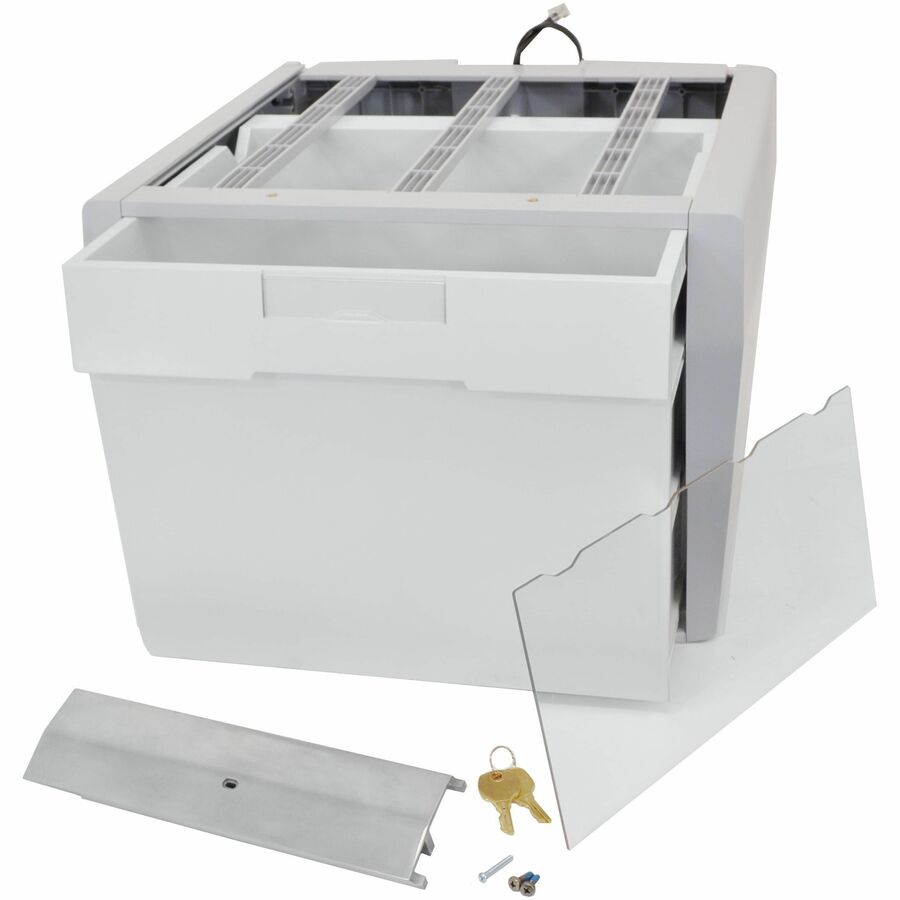

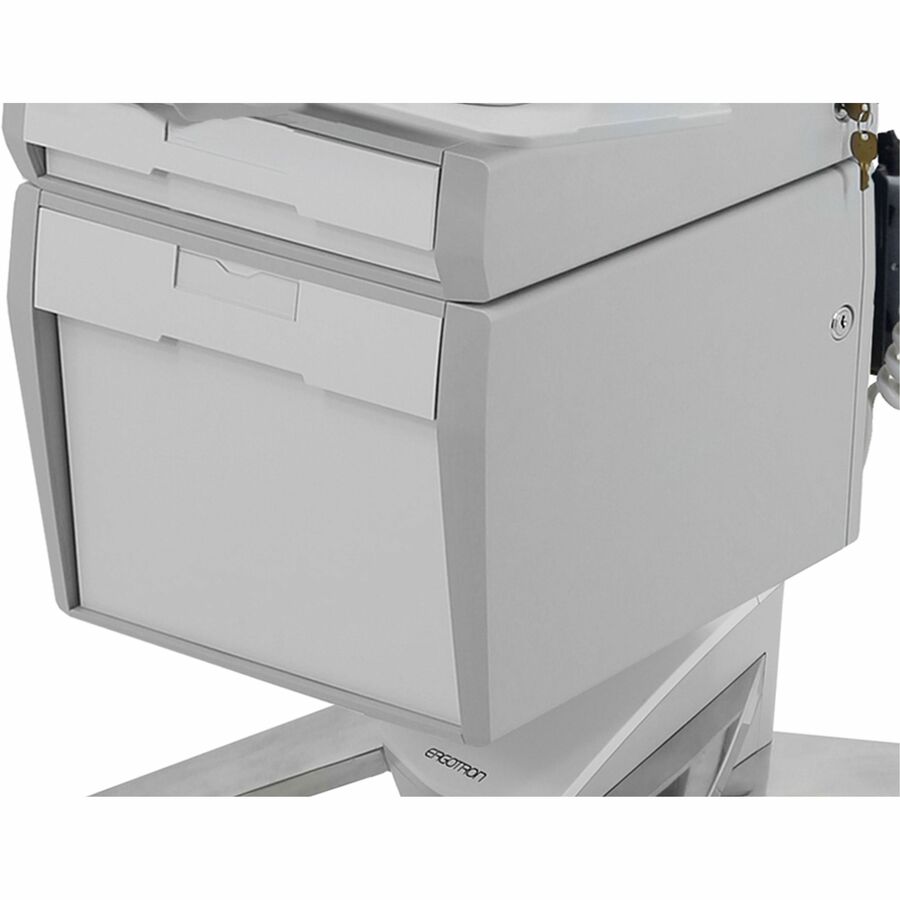

• Large Lower Drawer

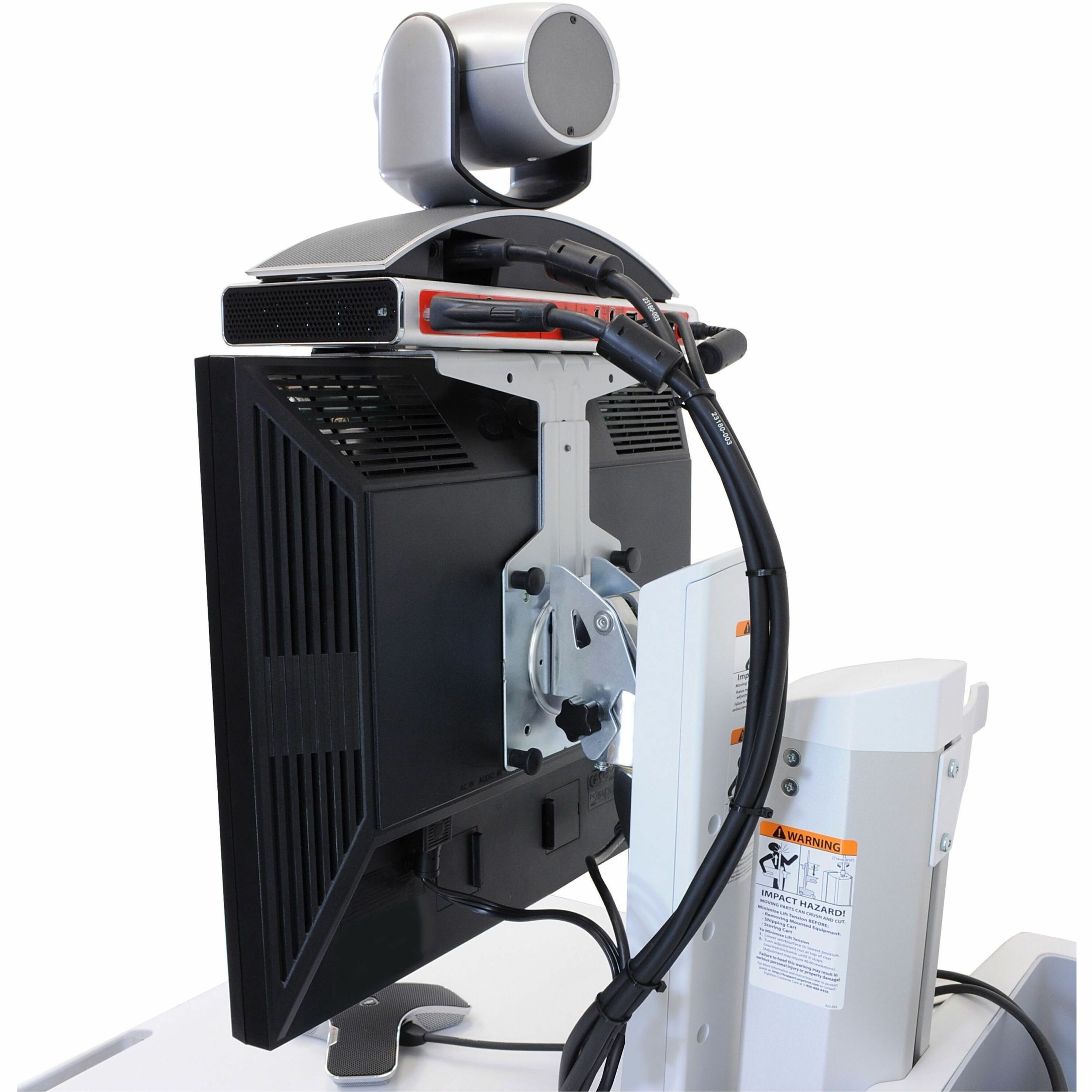

• Camera Shelf

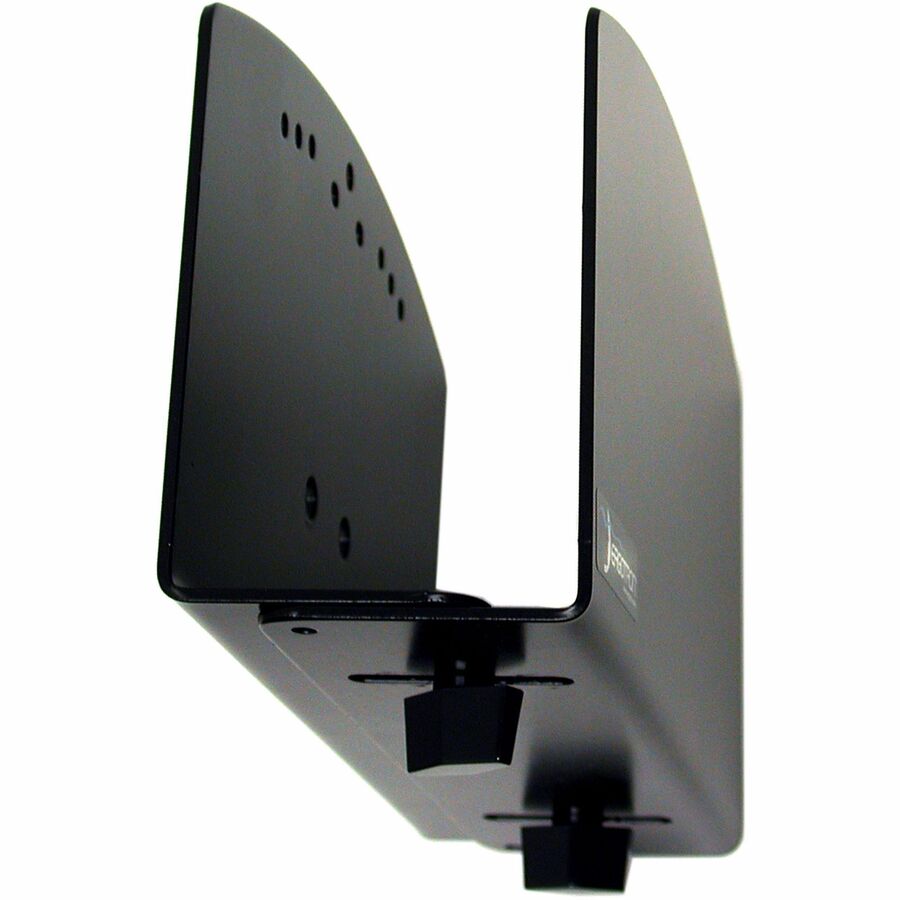

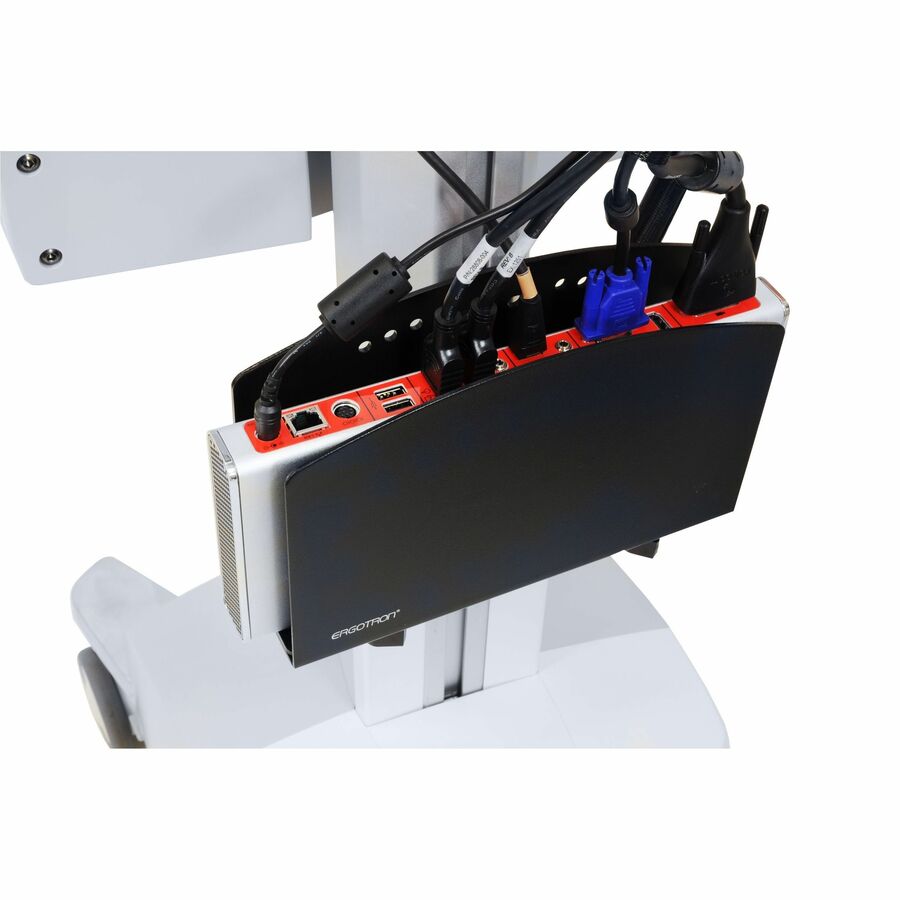

• Codec/CPU Holder
• Travel Stop

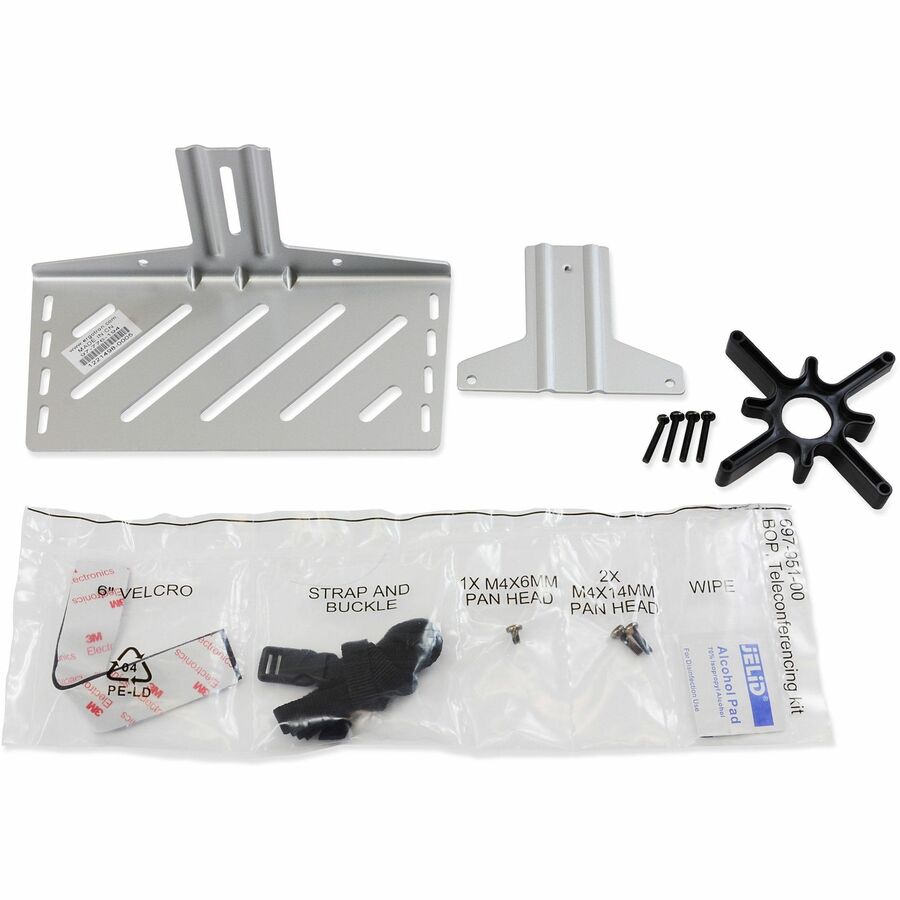

• Mounting Hardware
• Video Camera
• Monitors
• Codec
• Telepresence

Ergotron SV43/44 carts
