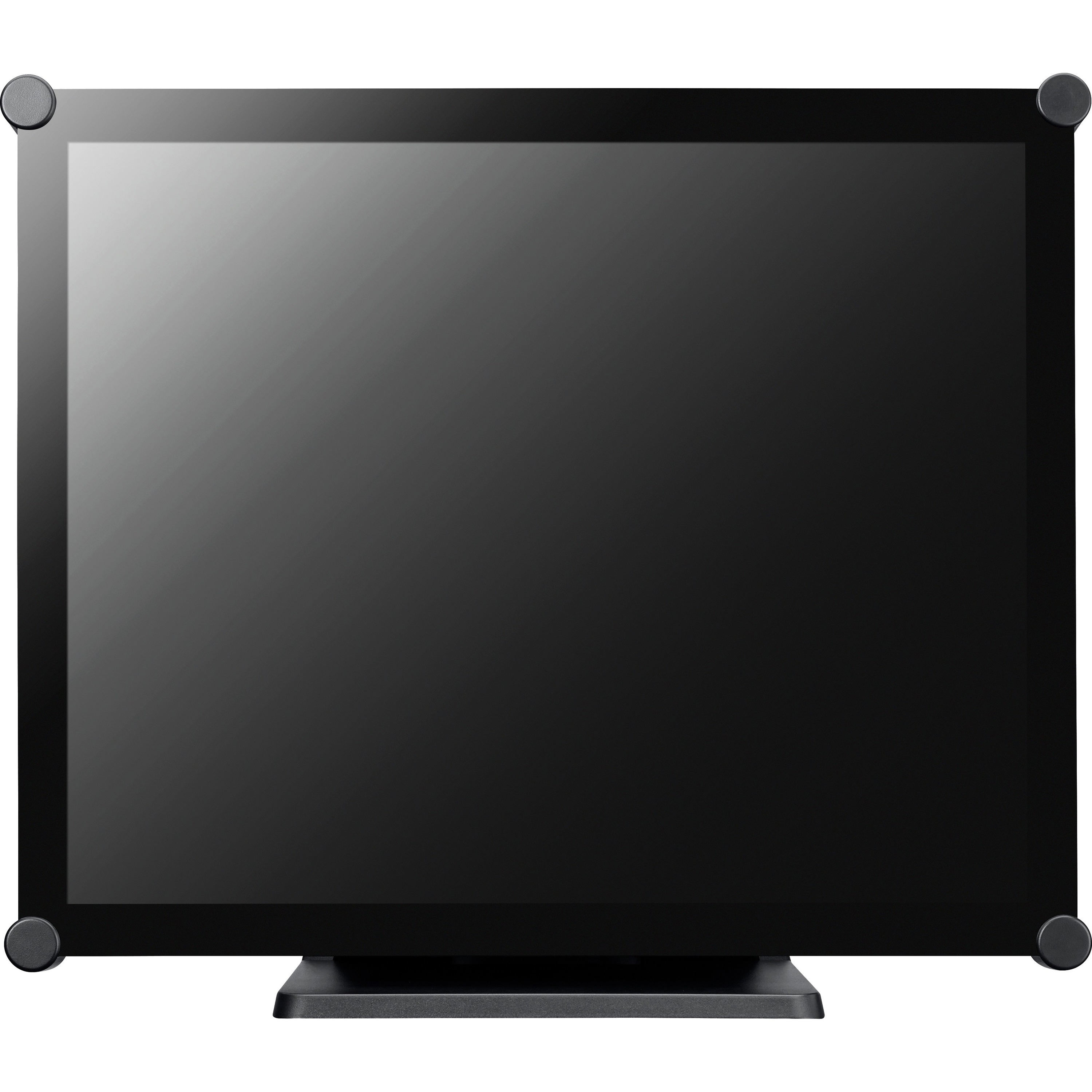

AG Neovo TX-19 19" Class LCD Touchscreen Monitor - 3 ms

Part No. TX-19

by AG Neovo Technology Corporation

AG Neovo TX-19 19" Class LCD Touchscreen Monitor - 3 ms

19" Viewable - Projected Capacitive - Multi-touch Screen - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 cd/m² - LED Backlight - DVI - USB - VGA - Black

Part No. TX-19

by AG Neovo Technology Corporation

$1076.99
General Information
ManufacturerAG Neovo Technology Corporation
Manufacturer Part NumberTX-19
Brand NameAG Neovo
Product SeriesTX
Product ModelTX-19
Product NameTX-19 Touchscreen LCD Monitor
Marketing InformationA durable, IP65 front-sided 10-point touch display designed for the most demanding interactive settings.

For superior touch performance and unique design, industry professionals choose the TX-19 for interactive applications. Featuring advanced projected capacitive 10-point touch technology, users are able to navigate the display intuitively and accurately. Thanks to its front-sided IP65 rating, the TX-19 is well protected against liquid and dust ingress. Sitting boldly on a rugged stand with a wide tilting angle, stability as well as flexibility is ensured. Built on rigorous choice of components and a metal casing, the TX-19 meets the requirements of busiest public and industrial environments.

Features

  • Incorporates advanced projected capacitive touch technology
  • 10-point touch capability for systems with Microsoft® Windows® 7 and 8 support plug and play
  • 5-point touch capability for systems with Linux, Android 2.1 upward support by driver, 10-point touch capability for systems with Android 4.0 support by driver
  • Single touch point capability for systems with Windows® VISTA, XP, 2000, Win CE, XP Embedded, Apple® Mac OS support by driver
  • LED-backlit technology with 1280 x 1024 resolution
  • Flush touch screen makes surface neat and clean
  • Front-sided IP65 rating protects screen from liquid and dust
  • Whole enclosure designed with IPX1 level for drip-proof
  • Tilt capacity from -5o to 90o
  • Dual inputs: VGA and DVI
  • HID compliant for easy integration
  • Optional RJ11 wired OSD external remote control
  • Lockable OSD setting to provide security when used in public spaces
  • Rugged base design for superb stability
  • Durable metal housing
  • Rigorous screening of the components for mission-critical 24/7 applications

Precise And Smooth Touch Experience

The TX-19 is built on innovative projected capacitive touch technology that ensures accurate and instant touch response.

10-point Touch Capability

Supported under Microsoft® 7 and 8, the TX-19 comes with 10-point touch capability that allows users to engage in more creative and exciting interactive applications.

Sophisticated Design

With a true flat surface and edge-to-edge glass overlay, the TX-19 offers an invitingly modern appeal that fits the professional environment.

Maximise User Comfort

With an ergonomically-friendly design, the TX-19 provides more viewing angles with a wide range tilt flexibility from -5º - 90º.

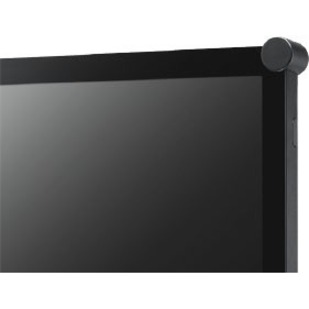

Durable Metal casing

Durable metal casing and the whole enclosure designed with IPX1 level for drip-proof.

IP65 Rating

With the front panel rated IP65, the TX-19 is effectively protected against the ingress of dust and liquid, a common risk in such demanding public places as hospitals, museums, school labs and industrial environments.

Product TypeLCD Touchscreen Monitor
Technical Information
Screen Size Class19"
Viewable Screen Size19"
Screen ModeSXGA
Response Time3 ms
Mount Type
  • Wall Mountable
  • Desk Mountable
  • Ceiling Mountable
Backlight TechnologyLED
Video
Maximum Resolution1280 x 1024
Color Supported16.7 Million Colors
Contrast Ratio1,000:1
Brightness250 cd/m²
Touchscreen Information
Touchscreen TypeProjected Capacitive
Multi-touch ScreenYes
Interfaces/Ports
DVIYes
USBYes
VGAYes
Physical Characteristics
VESA Mount CompatibleYes
Product ColorBlack
Height13.98" (355 mm)
Width16.81" (427 mm)
Depth1.93" (49 mm)
Height with Stand14.76" (375 mm)
Width with Stand16.81" (427 mm)
Depth with Stand8.43" (214 mm)
Weight with Stand (Approximate)14.33 lb (6500 g)
