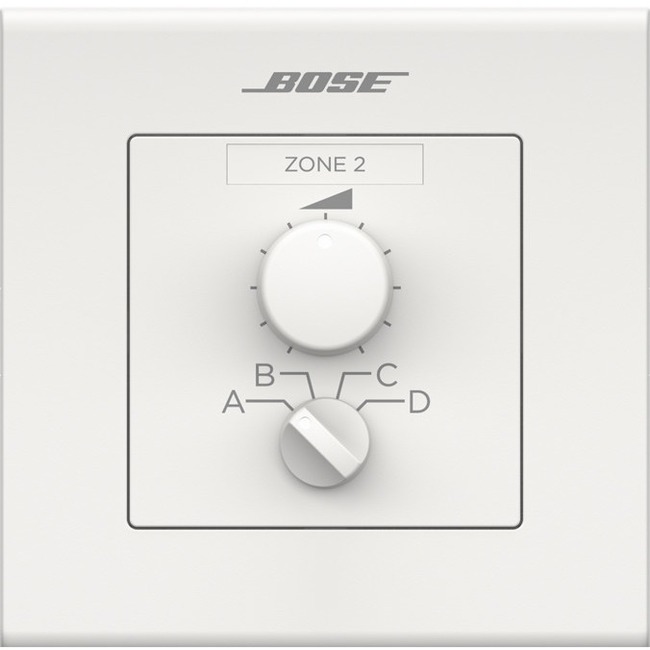

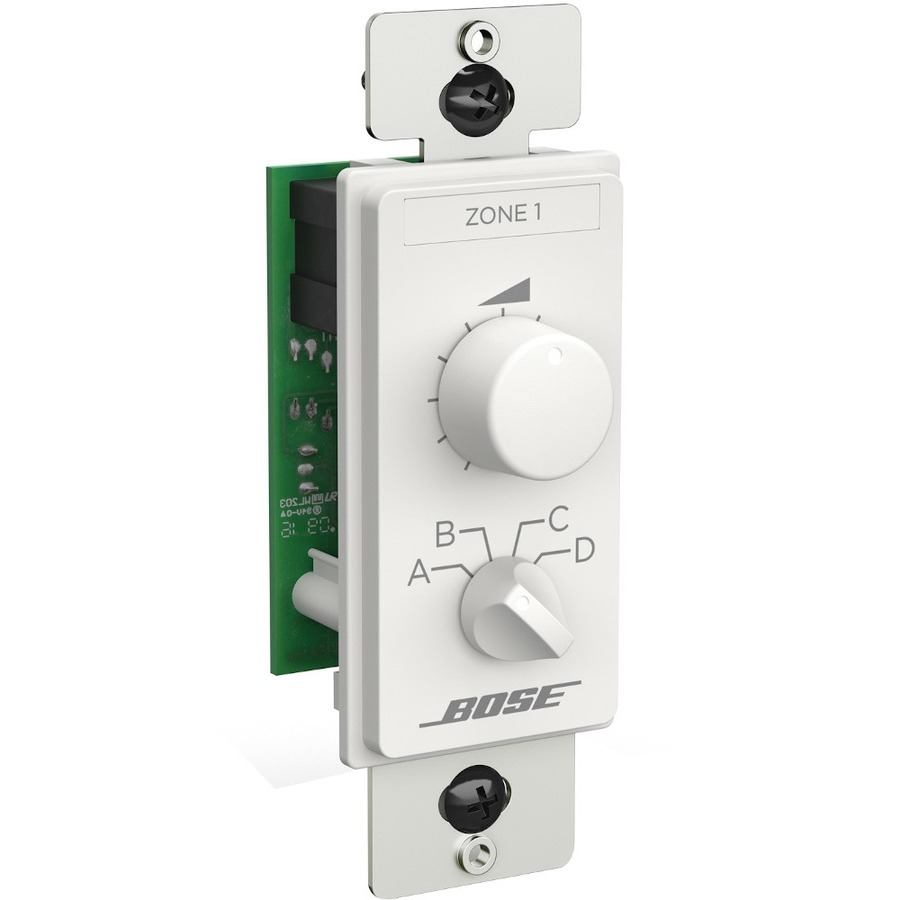

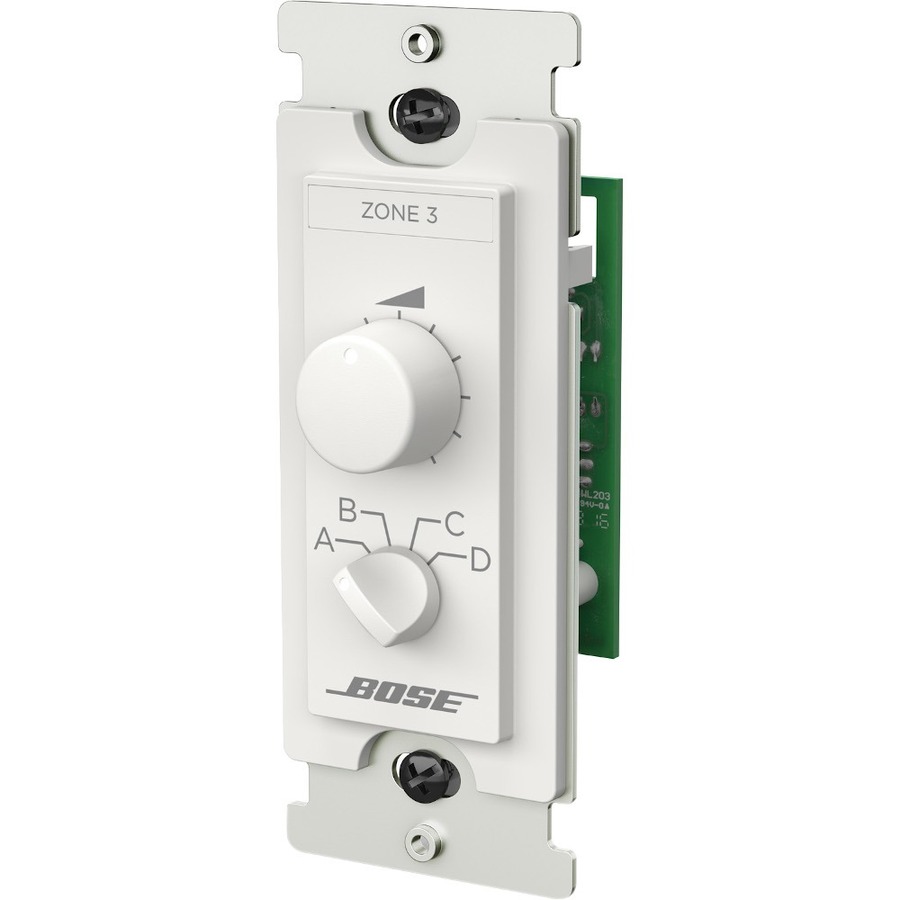

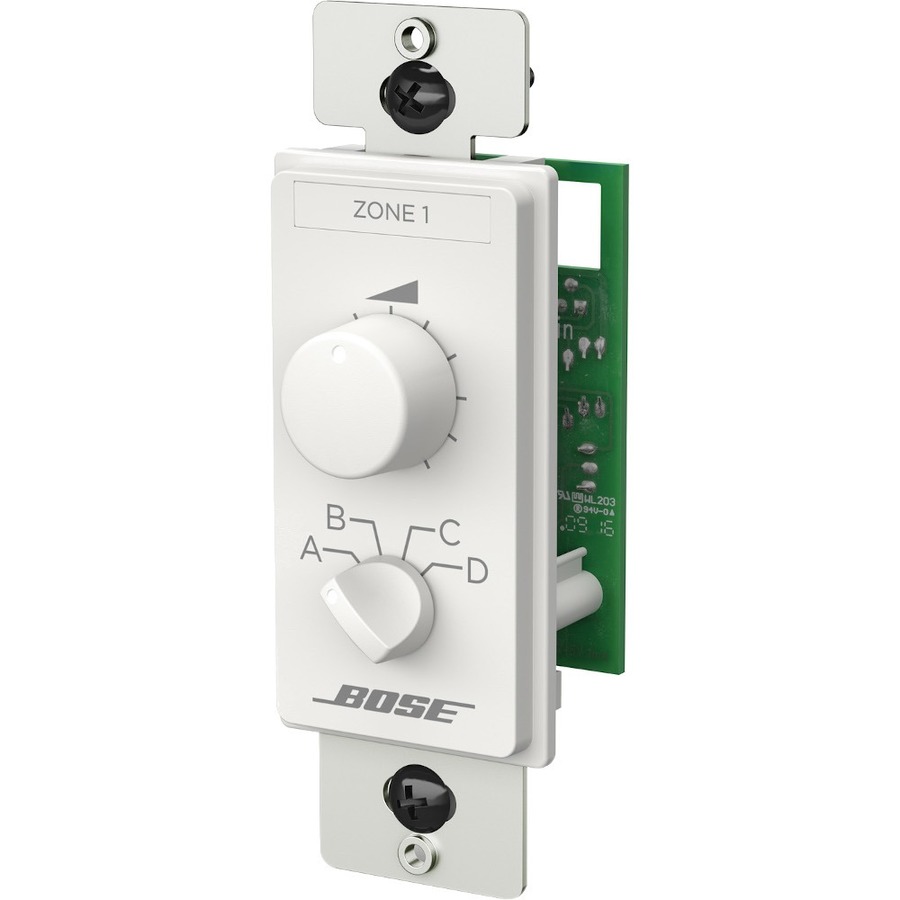

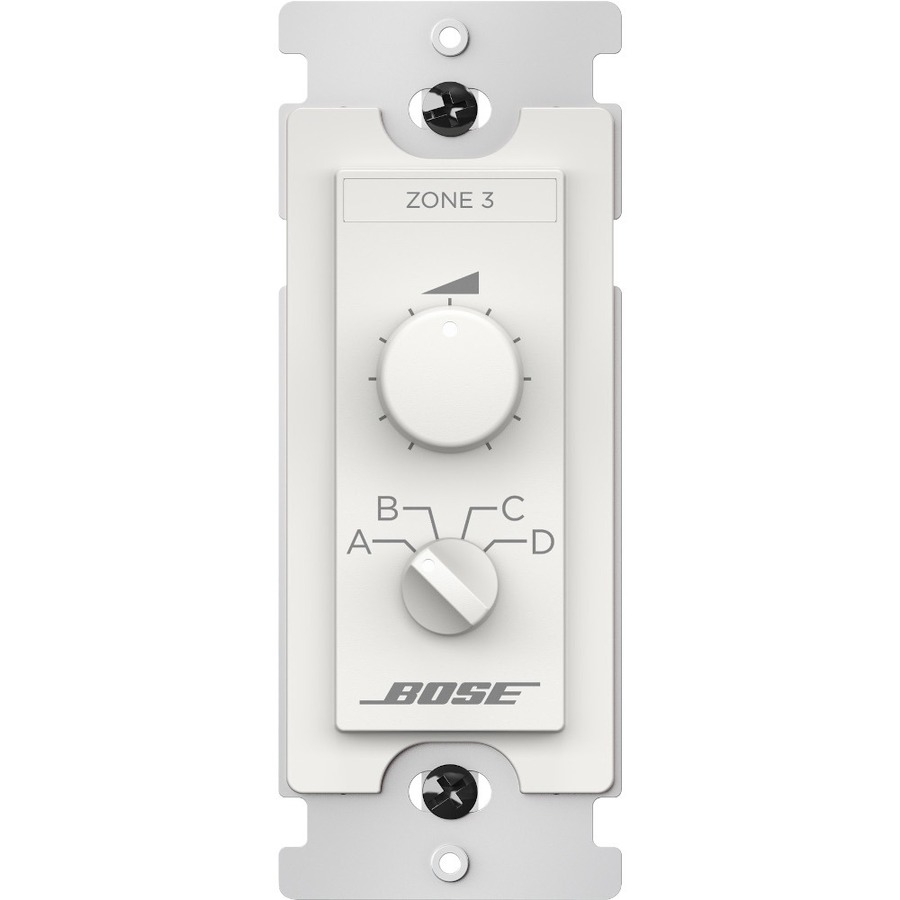

Bose® ControlCenter CC-3 zone controllers provide volume control and A/B/C/D source selection for ControlSpace® products. They are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan. The zone controllers use and RJ-45 connector and Cat 5 wiring for simplified wiring.

Key Features

• ControlCenter Series - Remote end-user interfaces for use with Bose FreeSpace® amplifiers, PowerShare amplifiers and ControlSpace®, processors. Three control configurations offer volume control (CC-1), volume plus A/B source selection (CC-2) and volume plus A/B/C/D source selection (CC-3).

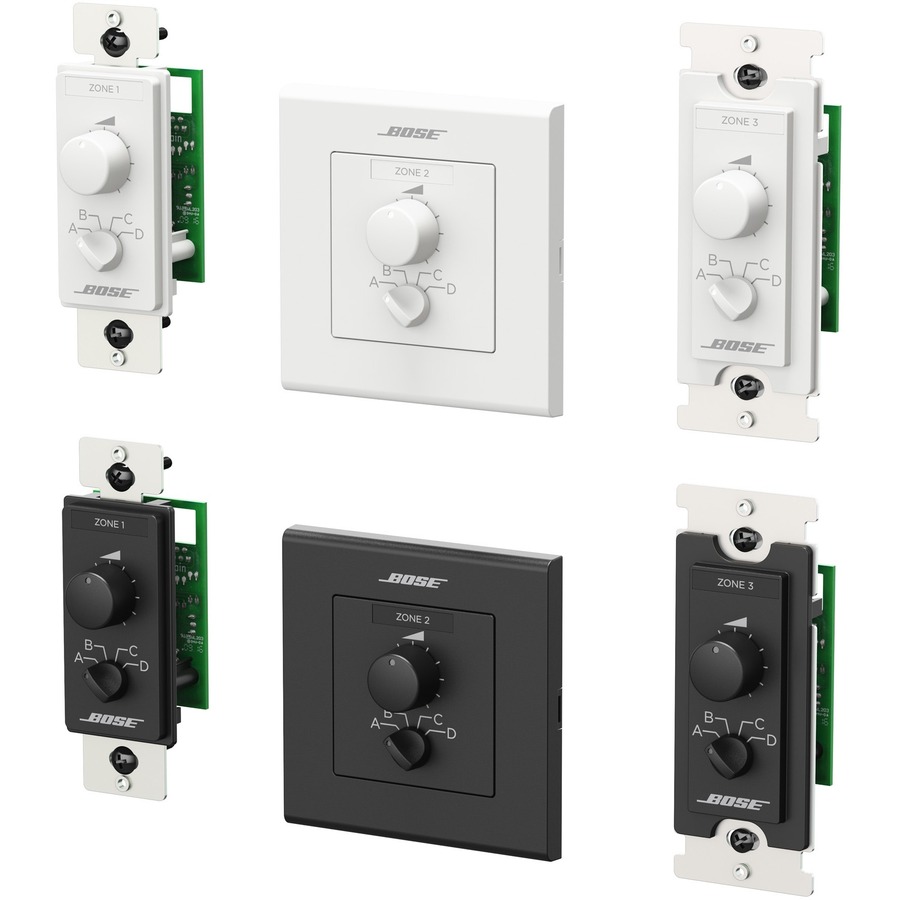

• Variant Options - Available in white or black and is offered in North American, Japanese, and EU form-factors to adapt to common electrical box sizes.

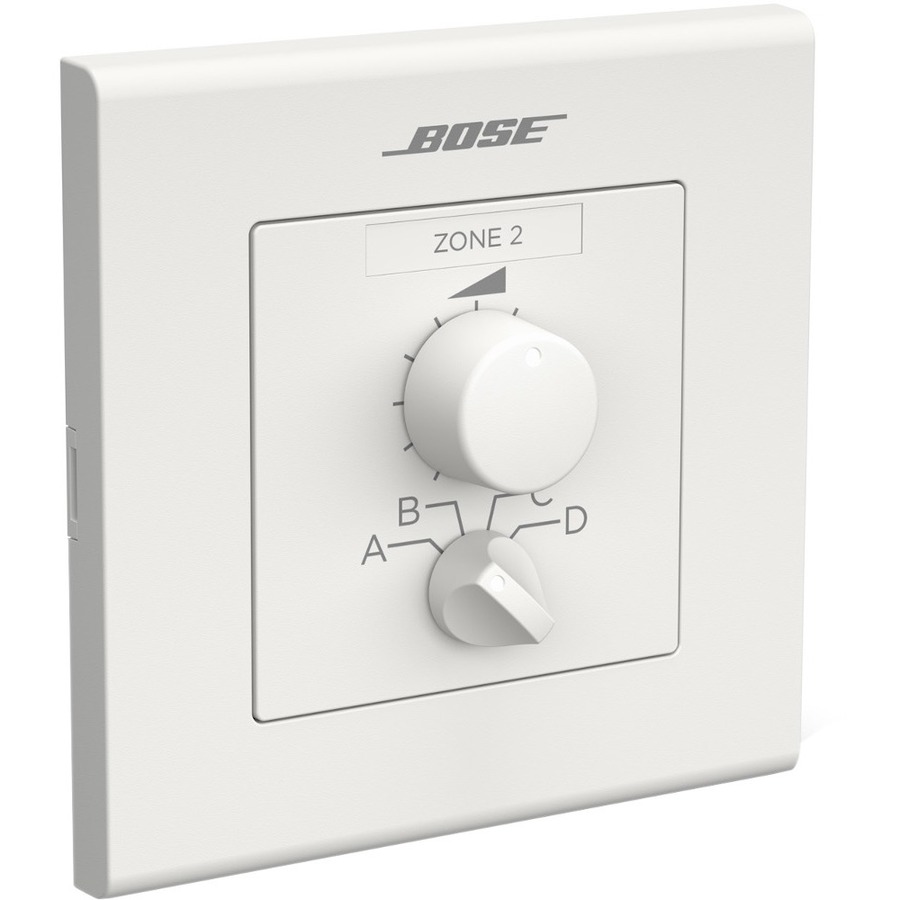

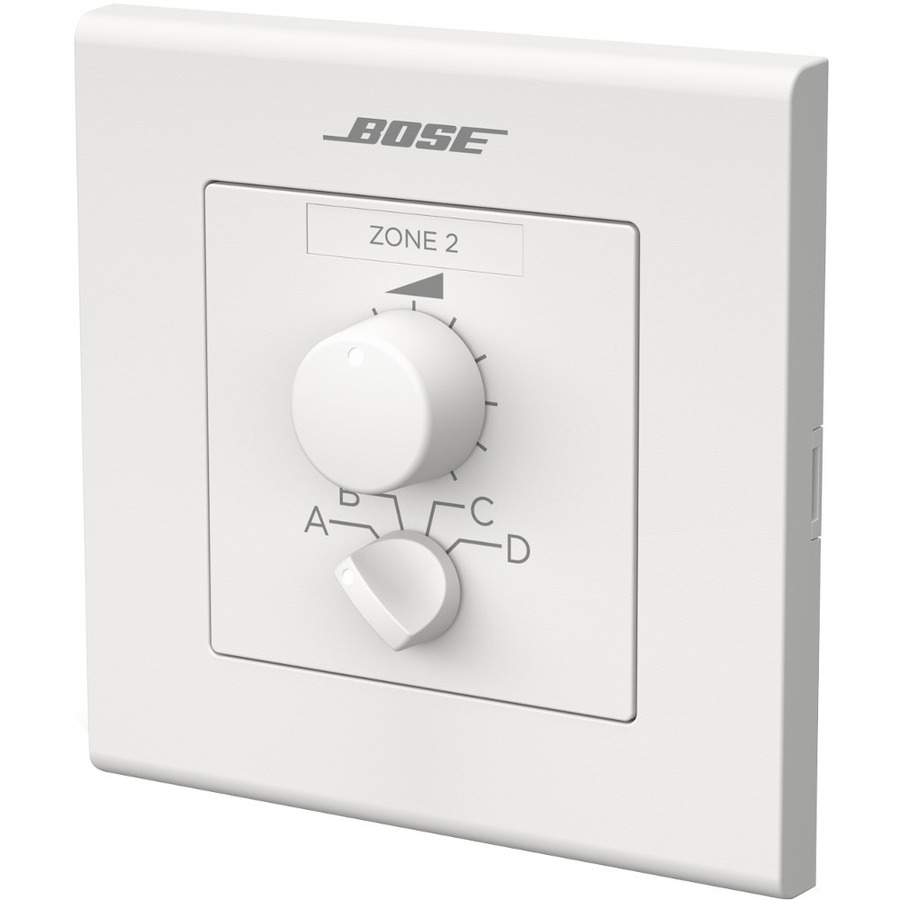

• Support for Decora®-style wall plates - North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86×86 mm European model is supplied as a finished wall plate that supports 60 mm screw spacing.
• Custom Labels - Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.

• Wall Plate
• Gang Box Mount

• ControlCenter CC-3 Audio Control Device
• 1 X Color-matched Pre-printed Label Sheet
• 2 X Mounting Screws
• 1 X Installation Guide

• Electrical Connector: One RJ-45,TIA/EIA 568B wiring standard
• Settings: None
• Type: Passive controller, linear potentiometer 0- 10 kΩ and 4-position switch
• Cable Requirement: Cat 5
• Maximum Cable Length:152 m (500 ft), using shielded cable 30 m (100 ft), using unshielded cable

• Retail Store
• Restaurant
• Hospital
• Bar

• ControlSpace ESP-00 II engineered sound processor
• ControlSpace ESP-880, ESP-1240 engineered sound processors
• ControlSpace ESP-4120, ESP-1600 engineered sound processors
