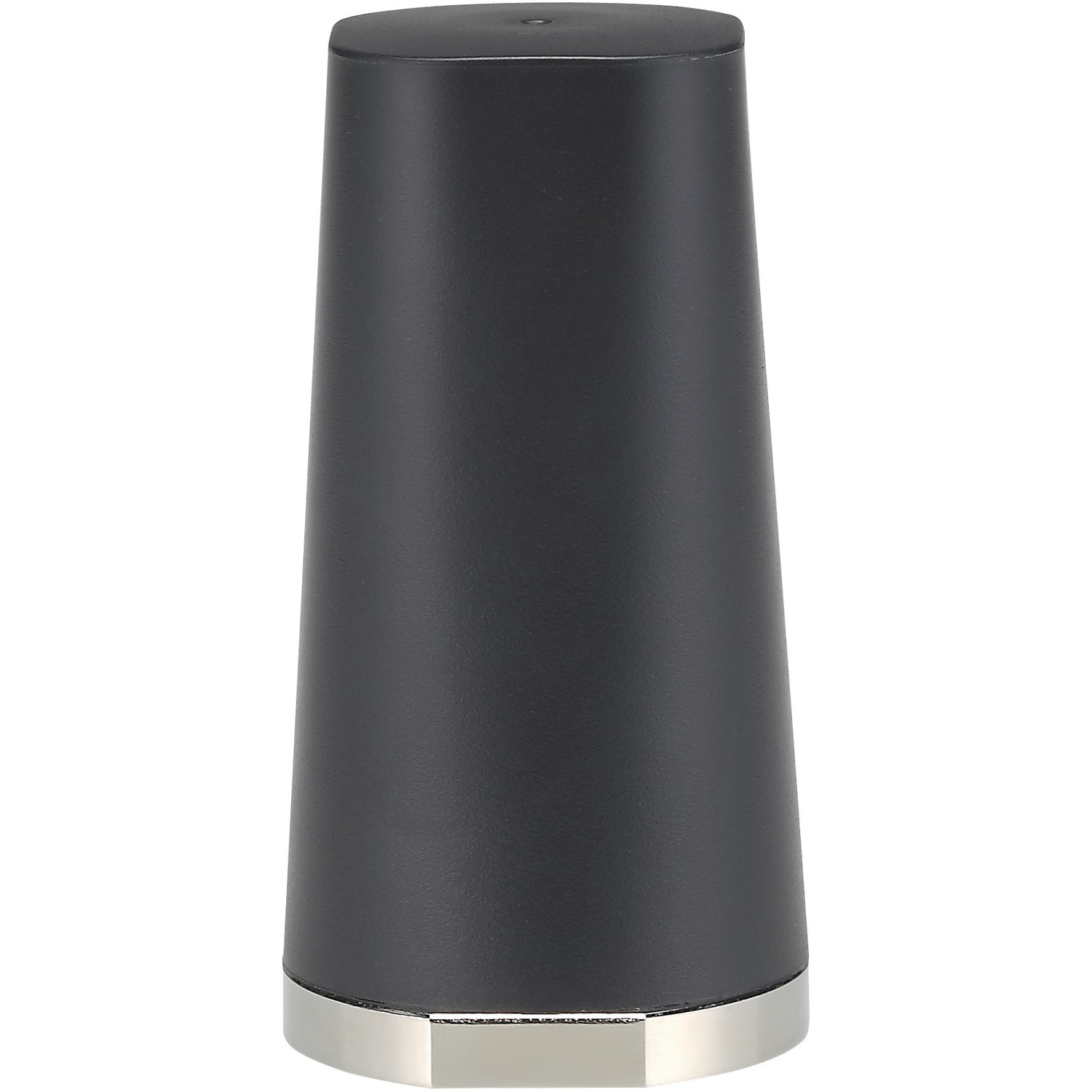

Taoglas Shockwave TLS.01 4G/3G/2G Terminal Antenna, N Type(M)
698 MHz to 803 MHz, 824 MHz to 896 MHz, 880 MHz to 960 MHz, 1575.42 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2300 MHz to 2700 MHz - 2.3 dBi - GPS, Cellular Network, Indoor, Outdoor - Black - Omni-directional - N-Type Connector
$47.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Taoglas |
| Manufacturer Part Number | TLS.01.1F11 |
| Brand Name | Taoglas |
| Product Line | Shockwave |
| Product Model | TLS.01 |
| Product Name | Shockwave TLS.01 4G/3G/2G Terminal Antenna, N Type(M) |
| Marketing Information | The Shockwave TLS.01.1F11 is a permanent mount, waterproof, external 2G/3G/4G cellular and GPS antenna operating at 698-960/1575.42/1710-2700MHz with an N type male connector. It has been designed to be used on a Ground Plane. It can be used in mobile and fixed applications for 4G LTE wireless such as:
A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The TLS.01 antenna is IP67 waterproof and IP69K resistant against high pressure water jets in commercial cleaning environments, which makes the antenna ideal for 2G/3G/4G/GPS applications either in indoor or in harsh outdoor environments. |
| Packaged Quantity | 1 |
| Product Type | Antenna |
Technical Information
| Directivity | Omni-directional |
| Operating Frequency Range |
|
| Antenna Gain (Isotropic) | 2.3 dBi |
Interfaces/Ports
| Connector Type | N-Type |
Physical Characteristics
| Product Color | Black |
| Height | 3.13" (79.45 mm) |
| Diameter | 1.65" (42 mm) |
| Weight (Approximate) | 130 g |
Miscellaneous
| Application/Usage |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Condition | No |
