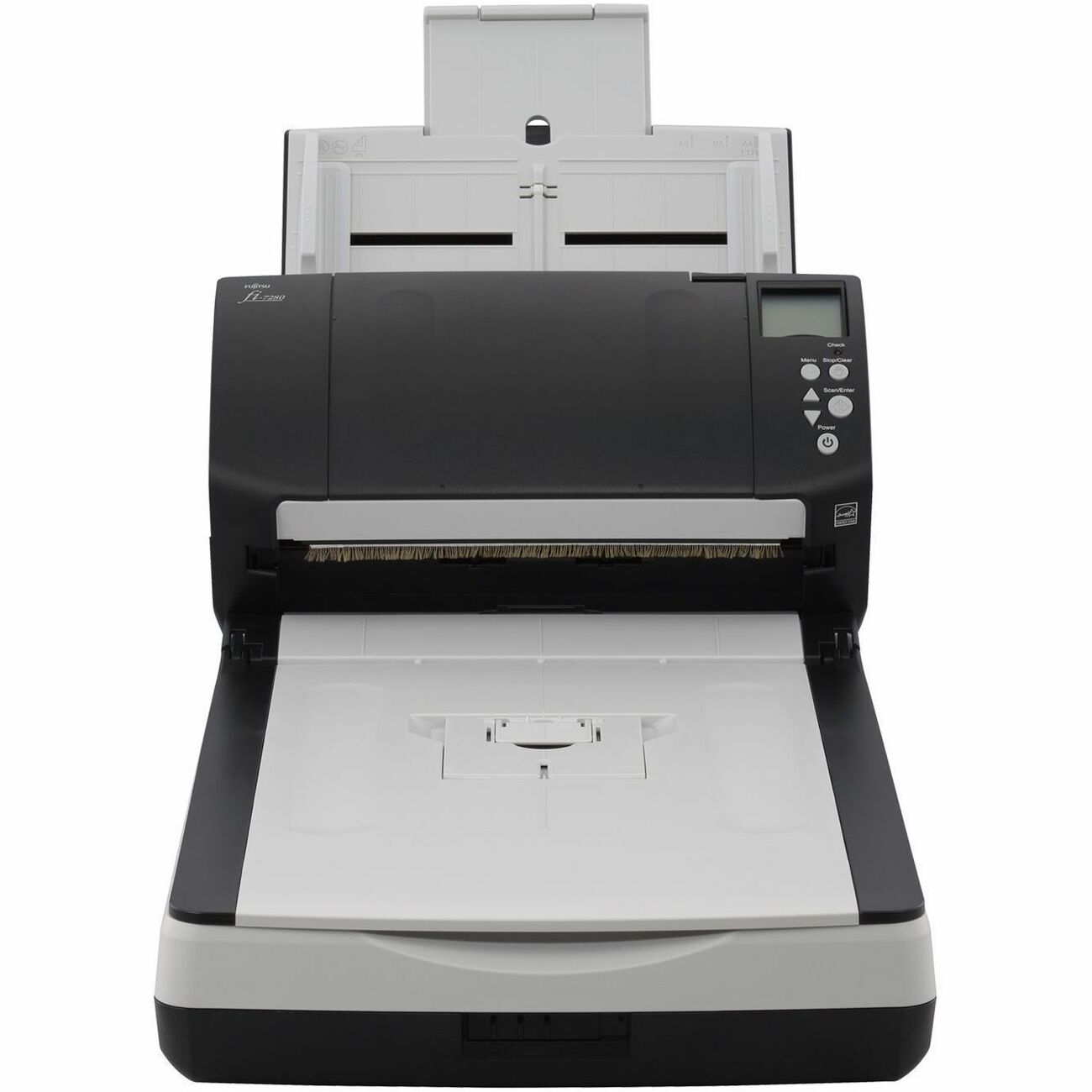

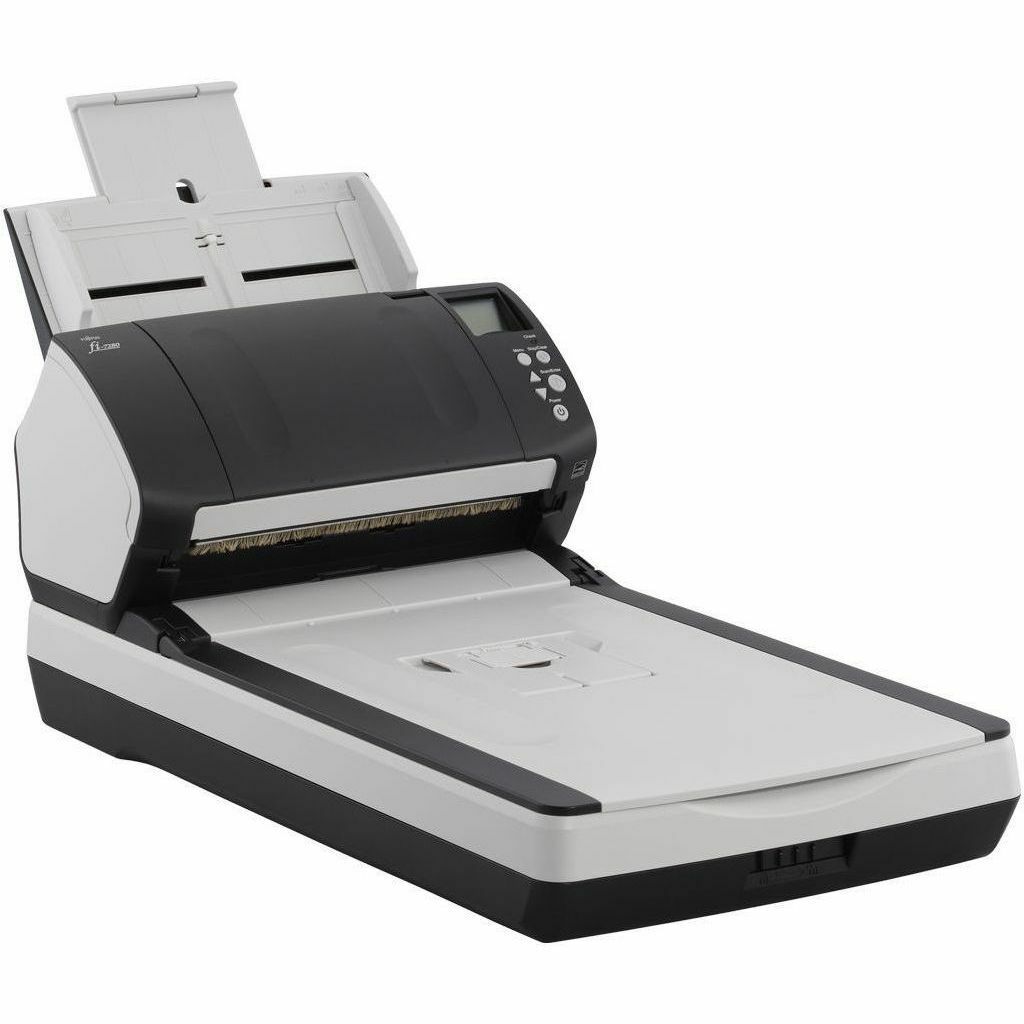

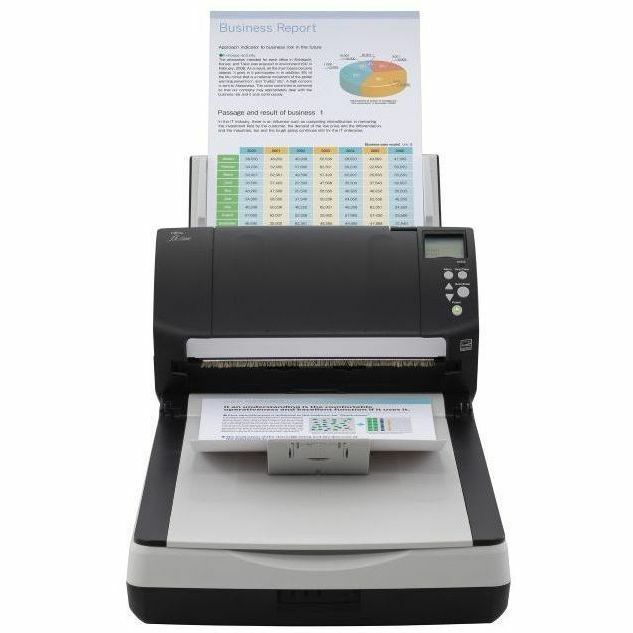

Fujitsu fi-7280 Flatbed/ADF Scanner - 600 dpi Optical

Part No. RA03670-B505

by Fujitsu

Fujitsu fi-7280 Flatbed/ADF Scanner - 600 dpi Optical

24-bit Color - 8-bit Grayscale - 80 ppm (Mono) - 80 ppm (Color) - Color, Monochrome, Grayscale Scan - Duplex Scanning - Plastic Card - USB

Part No. RA03670-B505

by Fujitsu

$1708.99
General Information
ManufacturerFujitsu
Manufacturer Part NumberRA03670B505
Brand NameFujitsu
Product Seriesfi
Product Modelfi-7280
Product Namefi-7280 ADF Scanner
Marketing Information

The fi-7280 scans A4 portraits at 80 ppm/160 ipm (200/300 dpi), loads up to 80 sheets at a time, and ensures utmost efficiency with best-of-class* scanning performance

Assistance for safe and reliable scanning

The fi-7280 possesses diverse stable paper feeding mechanisms, ensuring speedy and high quality scanning without relying on PC performance. Minimize risk of document damage with Paper Protection function detecting anomalies in sound and monitoring paper feed distance. And bid farewell to missing edges with the scanner's Skew Reducer mechanism. Potential information loss, resulting from multiple sheets being fed through the scanner at once, is also no longer an issue with Ultrasonic Multi-feed detection.

Boosted usability with a user-friendly and versatile design

Equipped with a built-in flatbed, this scanner can scan fragile documents and thick books, impossible to scan with ADF. Start scanning with a single push of a button. Keep track of scanner operations such as document scanning settings, number of sheets scanned, as well as any existing error statuses, using the LCD operation panels. Daily maintenance tasks, including interior cleaning and roller replacement, can also be done with ease for long-lasting utilization

High quality images in any condition

Enjoy sharp, high quality images with the fi-7280's CCD image sensors. Subtle changes in scanning environment, such as in air temperature and LED illumination, are also no longer a need for concern with the scanner automatically changing background colors to maintain consistently crisp images.

Advanced software for maximized efficiency

Bypass the inconvenience of making fine adjustments to OCR settings with the PaperStream IP scanner driver, supporting both TWAIN and ISIS. The software automatically converts scanned images into exceptionally clean images, supporting OCR accuracy even when scanning documents with background patterns or wrinkled and soiled documents. Seamlessly linked to PaperStream IP, PaperStream Capture offers various batch scanning capture features to effectively and efficiently feed information into your organization workflow. Automatically utilizing data extracted from barcodes (2D included) and patch codes, the software also determines your preferred saving destinations and eliminates time allocated to routine tasks.

Product TypeFlatbed/ADF Scanner
Technical Information
Image Sensor TypeCCD
Optical Resolution (dpi)600
Scan Color
  • Color
  • Monochrome
  • Grayscale
Color Depth24-bit
Grayscale Depth8-bit
Maximum Mono Scan Speed (ppm)80
Maximum Color Scan Speed (ppm)80
Maximum Mono Scan Speed (ipm)160
Maximum Color Scan Speed (ipm)160
Media TypePlastic Card
Media Size
  • A4
  • A8
Scanning ModesSimplex/Duplex
ADF Capacity80 Sheets
Maximum Media Thickness55.12 mil (1.40 mm)
Duplex ScanningYes
Light SourceWhite LED (3x)
Interfaces/Ports
USBYes
USB Standard
  • USB 1.1
  • USB 3.0
  • USB 2.0
Software
Operating System Supported
  • Windows 10
  • Windows 8.1
  • Windows 7
  • Windows Server 2019
  • Windows Server 2016
  • Windows Server 2012 R2
  • Windows Server 2012
  • Windows Server 2008 R2
  • Windows Server 2008
  • Linux
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Consumption43 W
Physical Characteristics
Height9.21" (234 mm)
Width11.81" (300 mm)
Depth22.72" (577 mm)
Weight (Approximate)19.40 lb (8800 g)
Miscellaneous
Package Contents
  • fi-7280 ADF Scanner
  • ADF Paper Chute
  • AC Cable
  • AC Adapter
  • USB Cable
  • Setup DVD-ROM
Energy StarYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0097564310911
