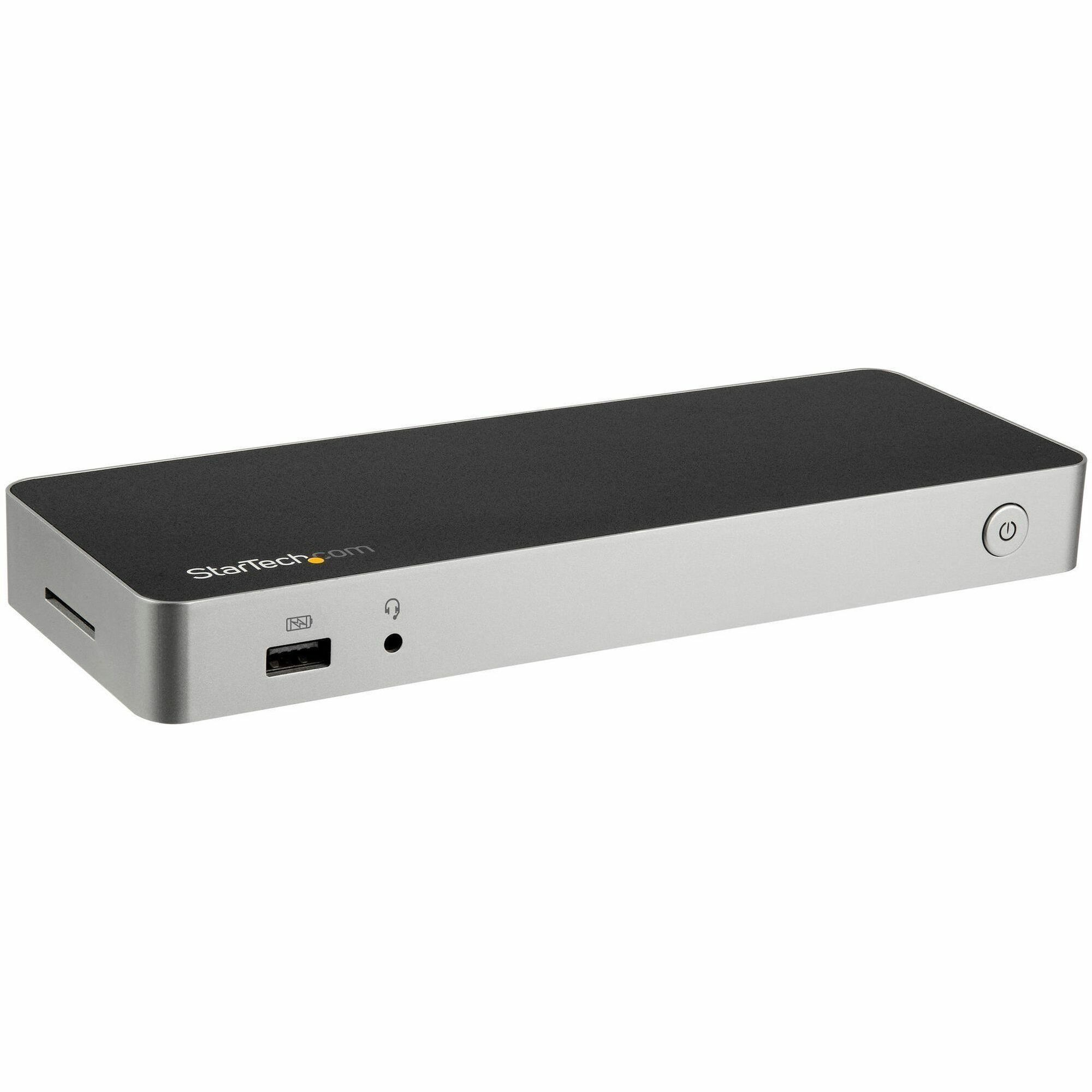

StarTech.com USB C Dock - 4K Dual Monitor HDMI & DisplayPort USB Type-C Docking Station - 60W Power Delivery, SD, 4-port USB 3.0 Hub, GbE

Part No. DK30CHDDPPD

by StarTech.com

StarTech.com USB C Dock - 4K Dual Monitor HDMI & DisplayPort USB Type-C Docking Station - 60W Power Delivery, SD, 4-port USB 3.0 Hub, GbE

USB-C docking station w/ dual monitor 4K 30Hz HDMI + DisplayPort/4x USB-A/GbE/Audio - SD/SDXC Slot - Incl 3.3ft/1m USB Type-C host cable & MAC Address Changer utility - For Thunderbolt/USB-C laptops; 60W Power Delivery - Windows/macOS/ChromeOS/Ubuntu

Part No. DK30CHDDPPD

by StarTech.com

$213.99
General Information
ManufacturerStarTech.com
Manufacturer Part NumberDK30CHDDPPD
Brand NameStarTech.com
Product NameDocking Station
Marketing Information

This dual-monitor USB-C™ dock transforms your MacBook or Windows® laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD™ card reader slot.

The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It's the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop.

Create a dual-4K video workstation

The USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink® and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:

  • 1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz
  • 1x 4K HDMI display at 3840 x 2160 resolution @ 30Hz

SD card reader

The dock provides direct access to your SD memory cards or microSD™ cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.

Ample connections

The dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and a combined 3.5 mm audio and microphone port.

Universal support

Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Advanced Windows Layout Utility: To setup and save custom windows layouts.

  • Mac Address Pass-Through Utility: To improve network security.

  • USB Event Monitoring Utility: To track and log connected USB devices

  • Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The DK30CHDDPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity1 Each
Product TypeDocking Station
Technical Information
Connectivity TechnologyWired
Device Supported
  • Notebook
  • Smartphone
  • Tablet
Memory Card ReaderYes
Memory Card SupportedSD
Interfaces/Ports
Host InterfaceUSB 3.0 Type C
Audio Line OutYes
Total Number of USB Ports5
Number of USB 3.0 Ports5
USB Type-CYes
USB Type-C Detail1 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45)Yes
DisplayPortYes
Number of DisplayPort Outputs1
Headphone/Microphone Combo PortYes
MicrophoneYes
HDMIYes
Number of HDMI Outputs1
ThunderboltYes
Software
Operating System Supported
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • Mac OS X 10.12 Sierra
  • Mac OS X 10.14 Mojave
  • ChromeOS 55+
  • Ubuntu 18.04
Power Description
Maximum Power Supply Wattage60 W
Physical Characteristics
Color FamilyDual Color
Product Color
  • Black
  • Silver
Height1" (25.40 mm)
Width3.10" (78.74 mm)
Length8.70" (220.98 mm)
Weight (Approximate)9.20 oz (260.82 g)
Miscellaneous
Package Contents
  • Docking Station
  • 1 x USB-C cable
  • 1 x Universal Power Adapter (NA/JP, ANZ)
  • 1 x Instruction Manual
Additional Information

OS Compatibility:

  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • macOS Mojave (10.14)
  • macOS Sierra (10.12)
  • Mac OS X El Capitan (10.11)
  • Chrome OS v55+
Compatibility
  • USB-C Laptops
  • Ultrabooks
  • Chromebooks
Brand Compatibility
  • Apple
  • Dell
  • HP
  • Lenovo
  • Microsoft
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of OriginChina
ConditionNo
UPC0065030868242
Warranty
Limited Warranty3 Year
