Advantech HPC-8316 Server Case

Rack-mountable - 3U - 18 x Bay - 0 - ATX, Micro ATX, EATX Motherboard Supported - 6 x Fan(s) Supported - 2 x Internal 2.5" Bay - 6x Slot(s) - 2 x USB(s)

Part No. HPC-8316TE-00A1E

by Advantech Co., Ltd

$1815.99

Specifications

General Information

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	HPC-8316TE-00A1E
Brand Name	Advantech
Product Model	HPC-8316
Product Name	HPC-8316 Server Case

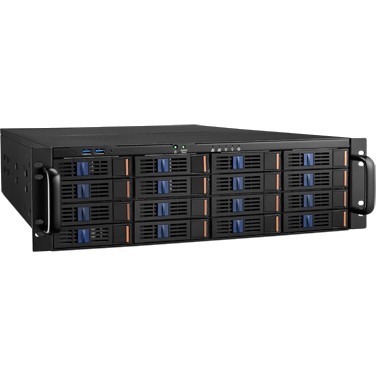

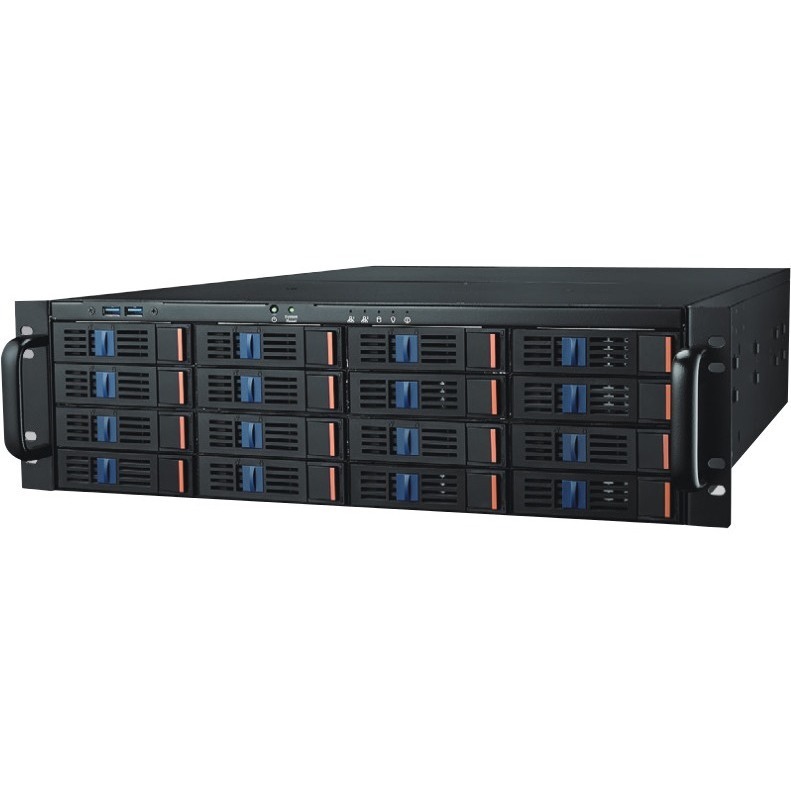

Marketing Information	3U Storage Chassis for EATX/ATX/Micro ATX Serverboards with 16 Hot-Swappable Drive Bays 3U rackmount chassis supports EATX/ATX/Micro ATX serverboards Features 16 hot-swappable drive bays for 3.5/2.5" SAS 12 Gb/s or SATA 6 Gb/s drives Two rear 2.5" SATA drive bays with an optional hot-swappable bay for SAS SKUs Two front-accessible USB 3.0 ports Eliminates the need for an additional HBA card for SATA SKU chassis
Product Type	Server Case

Technical Information

Motherboard Supported	ATX Micro ATX EATX
Number of Fans Supported	6
Number of Fans Installed	4
Installed Fan Size	3.15" (80 mm)

Bays

Number of Internal 2.5" Bays	2
Number of Total Expansion Bays	18

I/O Expansions

Total Number of Expansion Slots	6

Interfaces/Ports

Total Number of USB Ports	2

Power Description

Power Supply Installed	No
Number of Power Supplies Supported	2
Number of Power Supplies Installed	0

Physical Characteristics

Compatible Rack Unit	3U
Form Factor	Rack-mountable
Height	5.20" (132 mm)
Width	17.13" (435 mm)
Depth	24.41" (620 mm)
Weight (Approximate)	61.73 lb (28000 g)

Miscellaneous

Package Contents	HPC-8316 Server Case 1 x Slide Rail Kit
Country of Origin	China
Condition	No
