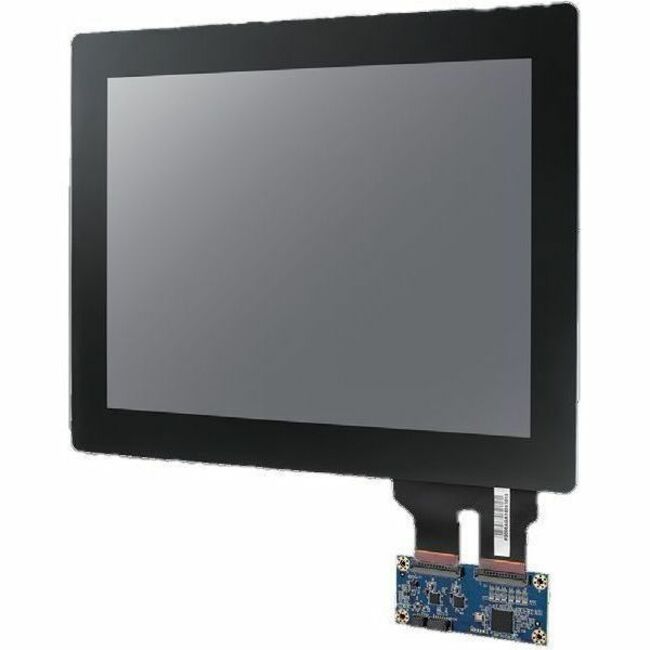

Advantech IDK-1110P-50XGA1E 10" Class LED Touchscreen Monitor - 25 ms
10.4" Viewable - Projected Capacitive - 5 Point(s) Multi-touch Screen - 1024 x 768 - XGA - 16.2 Million Colors - 500 cd/m² - LED Backlight - USB
$461.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IDK-1110P-50XGA1E |
| Brand Name | Advantech |
| Product Series | IDK-1110P |
| Product Model | IDK-1110P-50XGA1E |
| Product Name | 10.4" XGA Industrial Display Kit With Touch Solution |
| Marketing Information | Introduction The Advantech IDK-1110P series comes with a 10.4" industrial grade LCD display with P-cap touch. The series is with touch with edge to edge design. IDK-1110P series supports P-cap touch with low power consumption at the maximum of 10 W. IDK-1110P series is ideal for embedded applications which customers have maximum flexibility for mechanical design. |
| Product Type | LED Touchscreen Monitor |
Technical Information
| Screen Size Class | 10" |
| Viewable Screen Size | 10.4" |
| Screen Mode | XGA |
| Response Time | 25 ms |
| Horizontal Viewing Angle | 176° |
| Vertical Viewing Angle | 176° |
| Backlight Technology | LED |
| Features | Edge-to-Edge Glass Design |
Video
| Maximum Resolution | 1024 x 768 |
| Color Supported | 16.2 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 500 cd/m² |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 5 |
Interfaces/Ports
| USB | Yes |
Environmental Conditions
| Operating Temperature Range | -4°F (-20°C) to 158°F (70°C) |
Power Description
| Maximum Power Consumption | 10 W |
Physical Characteristics
| Height | 7.97" (202.42 mm) |
| Width | 9.88" (251.03 mm) |
| Depth | 0.45" (11.32 mm) |
| Weight (Approximate) | 1.10 lb (500 g) |
Miscellaneous
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
