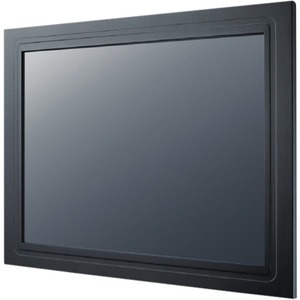

Advantech IDS-3215 15" Class XGA LCD Monitor
15" Viewable - LED Backlight - 1024 x 768 - 16.2 Million Colors - 500 cd/m² - 23 ms - DVI - VGA
$626.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IDS-3215G-40XGA1E |
| Brand Name | Advantech |
| Product Model | IDS-3215 |
| Product Name | 15" XGA Industrial Panel Mount Monitor |
| Marketing Information | The Advantech IDS-3215 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications. |
| Product Type | LCD Monitor |
Technical Information
| Number of Screens | 1 |
| Screen Size Class | 15" |
| Viewable Screen Size | 15" |
| Screen Mode | XGA |
| Response Time | 23 ms |
| Horizontal Viewing Angle | 176° |
| Vertical Viewing Angle | 176° |
| Mount Type |
|
| Backlight Technology | LED |
| Features |
|
| Glass Hardness | 3H |
Video
| Maximum Resolution | 1024 x 768 |
| Color Supported | 16.2 Million Colors |
| Native Contrast Ratio | 2,500:1 |
| Brightness | 500 cd/m² |
Interfaces/Ports
| DVI | Yes |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Number of DVI Ports | 1 |
| Number of VGA Ports | 1 |
Physical Characteristics
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 11.46" (291 mm) |
| Width | 14.37" (365 mm) |
| Depth | 1.50" (38 mm) |
| Weight (Approximate) | 9.48 lb (4300 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
Warranty
| Limited Warranty | 2 Year |
