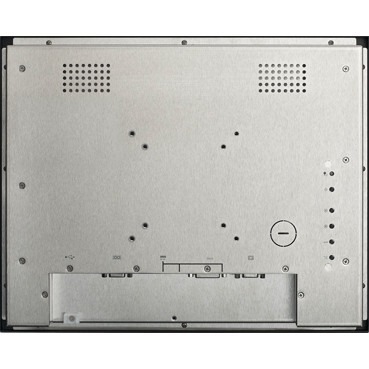

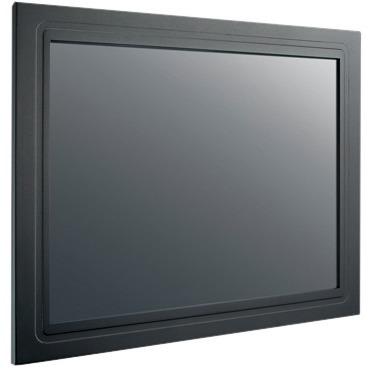

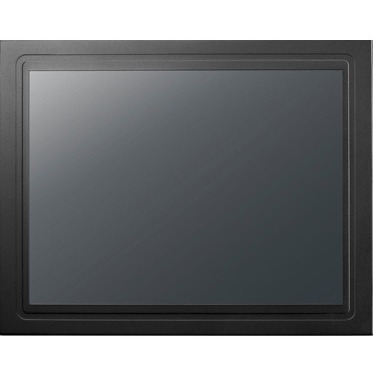

Advantech IDS-3217EG-25SXA1E 17" Class LCD Touchscreen Monitor - 5 ms
17" Viewable - 5-wire Resistive - 1280 x 1024 - SXGA - 16.2 Million Colors - 250 cd/m² - LED Backlight - DVI - USB - VGA - 2 Year
$527.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IDS-3217EG-25SXA1E |
| Brand Name | Advantech |
| Product Series | IDS-3217 |
| Product Model | IDS-3217EG-25SXA1E |
| Product Name | 17" SXGA Industrial Panel Mount Monitor |
| Marketing Information | The Advantech IDS-3217 Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications. |
| Product Type | LCD Touchscreen Monitor |
Technical Information
| Screen Size Class | 17" |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Response Time | 5 ms |
| Mount Type | Panel Mount |
| Backlight Technology | LED |
Video
| Maximum Resolution | 1280 x 1024 |
| Color Supported | 16.2 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 cd/m² |
Touchscreen Information
| Touchscreen Type | 5-wire Resistive |
Interfaces/Ports
| DVI | Yes |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
Power Description
| Operating Power Consumption | 60 W |
Physical Characteristics
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 14.07" (357.50 mm) |
| Width | 16.73" (425 mm) |
| Depth | 1.54" (39 mm) |
| Weight (Approximate) | 9.92 lb (4500 g) |
Miscellaneous
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
Warranty
| Limited Warranty | 2 Year |
