Supermicro SuperStorage Bridge Bay 937R-E2CJB Drive Enclosure - 12Gb/s SAS Host Interface - 3U Rack-mountable - Black

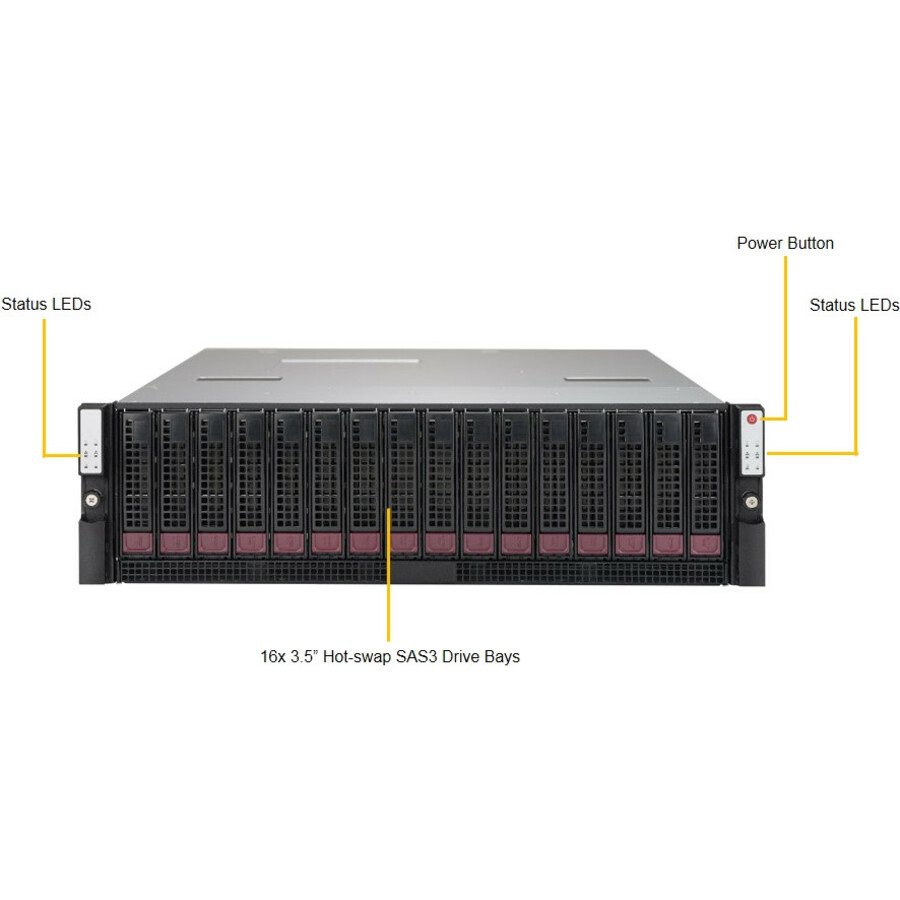

16 x HDD Supported - 16 x Total Bay - 16 x 3.5" Bay
$4196.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SSG-937R-E2CJB |
| Brand Name | Supermicro |
| Product Line | SuperStorage Bridge Bay |
| Product Model | 937R-E2CJB |
| Product Name | SuperStorage 937R-E2CJB (Black) |
| Marketing Information | Optimized for mission-critical, enterprise-level storage applications, supermicro's innovative super sbb features a fully redundant, fault-tolerant "cluster-in-a-box" system. The super sbb supports hot-swap sas hdds with the option to expand by using the sbb jbod. The super sbb provides hot-swappable canisters for all active components. With heartbeat and data connection between the serverboards via the midplane, if one serverboard fails, the other serverboard is able to take over control and access the hdd's (both controllers can also work as active-active mode), keeping the system up and running. Storage software is the key to enable this feature, which is available from several supermicro's partners. Equipped with high-efficiency redundant power supplies and hot-swappable cooling fans, the super sbb is a highly-available, high-reliability storage system at a competitive price. |
| Product Type | Drive Enclosure |
Technical Information
| Number of Hard Drives Supported | 16 |
Controllers
| Non-RAID Mode | JBOD |
I/O Expansions
| Number of Total Expansion Bays | 16 |
| Number of 3.5" Bays | 16 |
Interfaces/Ports
| Host Interface | 12Gb/s SAS |
Physical Characteristics
| Product Color | Black |
| Cooling Fan | Yes |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.12" (130.05 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 26.50" (673.10 mm) |
