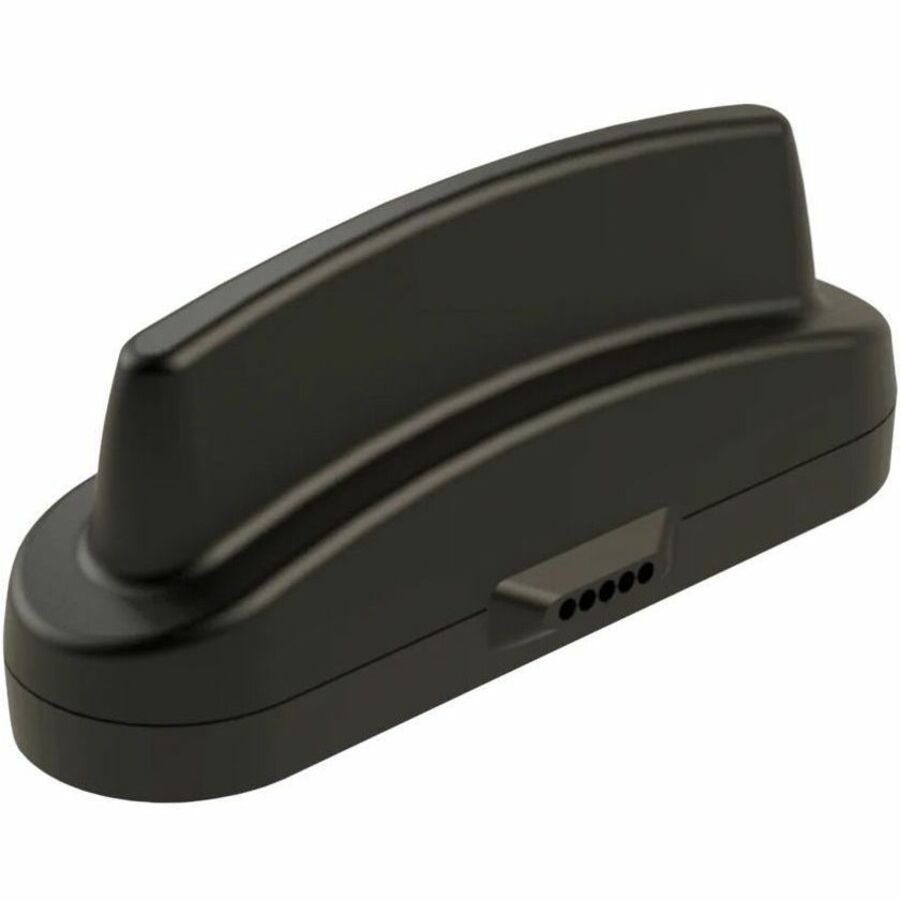

Panorama Antennas LP[G]AMM-BC3G-26 Antenna
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LPAMM-BC3G-26-1-5S |
| Brand Name | Panorama Antennas |
| Product Series | LP[G]AMM-BC3G-26 |
| Product Name | LP[G]AMM-BC3G-26 Antenna |
| Marketing Information | The LP[G]AMM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications. The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active 26dB gain GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function. The antenna is designed to be mounted magnetically but can be fitted on a non- conductive panel if required and offers easy, quick, secure and weatherproof installation. Supplied with integrated RG174 cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals. |
| Product Type | Antenna |
| Directivity | Omni-directional |
| Operating Frequency Range |
|
| Antenna Gain | 26 dB |
| Antenna Gain (Isotropic) | 5 dBi |
| Connector Type | SMA |
| Color Family | Black |
| Product Color | Black |
| Height | 2.40" (61 mm) |
| Width | 1.77" (45 mm) |
| Depth | 5.91" (150 mm) |
| Form Factor |
|
| Application/Usage |
|
| Package Contents |
|
| Condition | No |
