Monoprice 29434 Docking Station

Part No. 29434

by Monoprice, Inc

Monoprice 29434 Docking Station

for Monitor, Notebook, Computer, Smartphone, Tablet, Headset, Speaker - Charging Capability - 75 W - USB Type C - 2 Displays Supported - 4K @30Hz, FHD @ 60Hz - 3840 x 2160, 1920 x 1080 - 5 x USB 3.0 - 4 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - VGA - DisplayPort - Audio Line In - Audio Line Out - Wired - Gigabit Ethernet - Windows 7, Mac OS X 10.11 El Capitan, ChromeOS, Linux - 100W

Part No. 29434

by Monoprice, Inc

$208.99
General Information
ManufacturerMonoprice, Inc
Manufacturer Part Number29434
Brand NameMonoprice
Product Model29434
Product Name29434 Docking Station
Marketing Information

The Monoprice™ USB-C® Dual Monitor Docking Station offers an integrated solution for power, data, Ethernet, audio, and video for USB-C equipped PCs and laptops. It features HDMI®, DisplayPort®, VGA video outputs, two of which can be used at the same time when connected to a Windows PC or laptop. It supports Multi-Stream Transport (MST) and up to 100 watts of Power Delivery (PD) for charging USB-C equipped laptops, smartphones, and tablets. Four USB 3.0 Type-A ports allow you to keep all of your devices charged and sync'd, while the Gigabit Ethernet port keeps you connected. The two 3.5mm analog audio outputs allow you to connect headsets, powered speakers, or an external amplifier.

Expand Your View:This adapter is designed to allow you to connect an HDMI®, DisplayPort®, or VGA display to a USB-C® or Thunderbolt™ 3 equipped Mac® or Windows® PC or laptop. It supports HDMI and DisplayPort resolutions up to 4K@30Hz and VGA resolutions up to 1080p@60Hz.

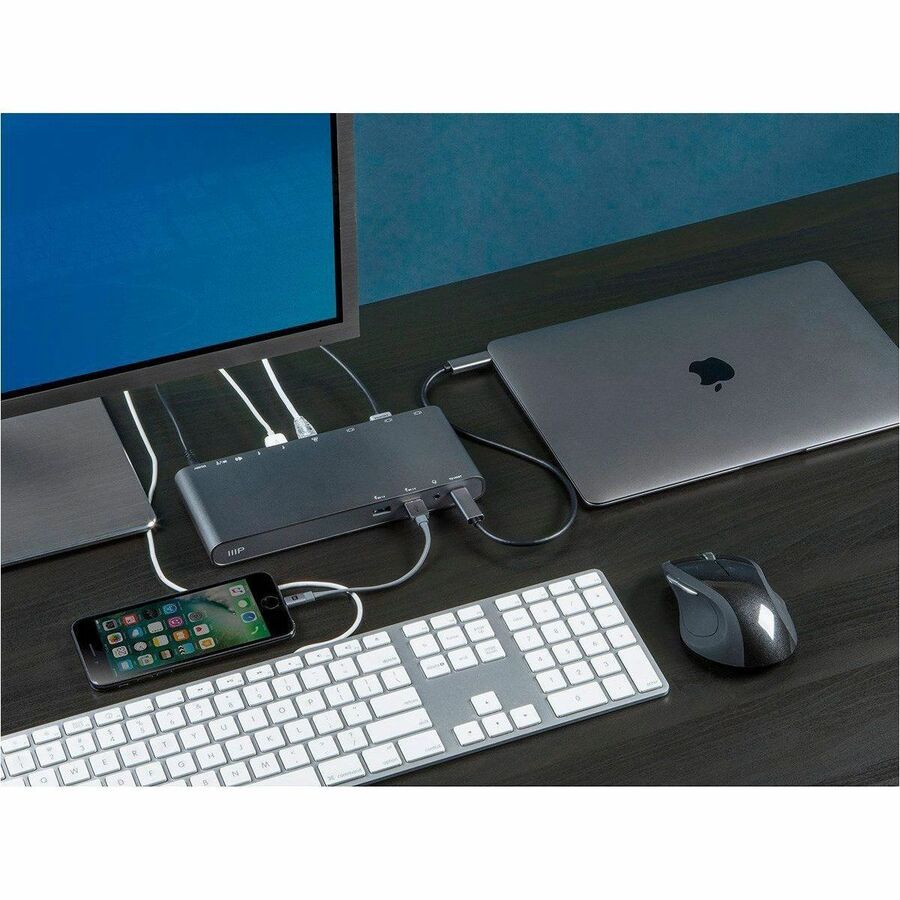

One Cable to Connect Them All:Connect all of your devices and keep everything you do organized through one powerful cable. The USB-C Dual Monitor Docking station connects up to ten devices to a single USB-C port on your computer.

USB-C Power Delivery:The USB-C charging port allows you to connect a USB-C charger, so you can charge your laptop's battery, rather than draining it, while using this USB-C dock to deliver up to 100 watts of charging power.

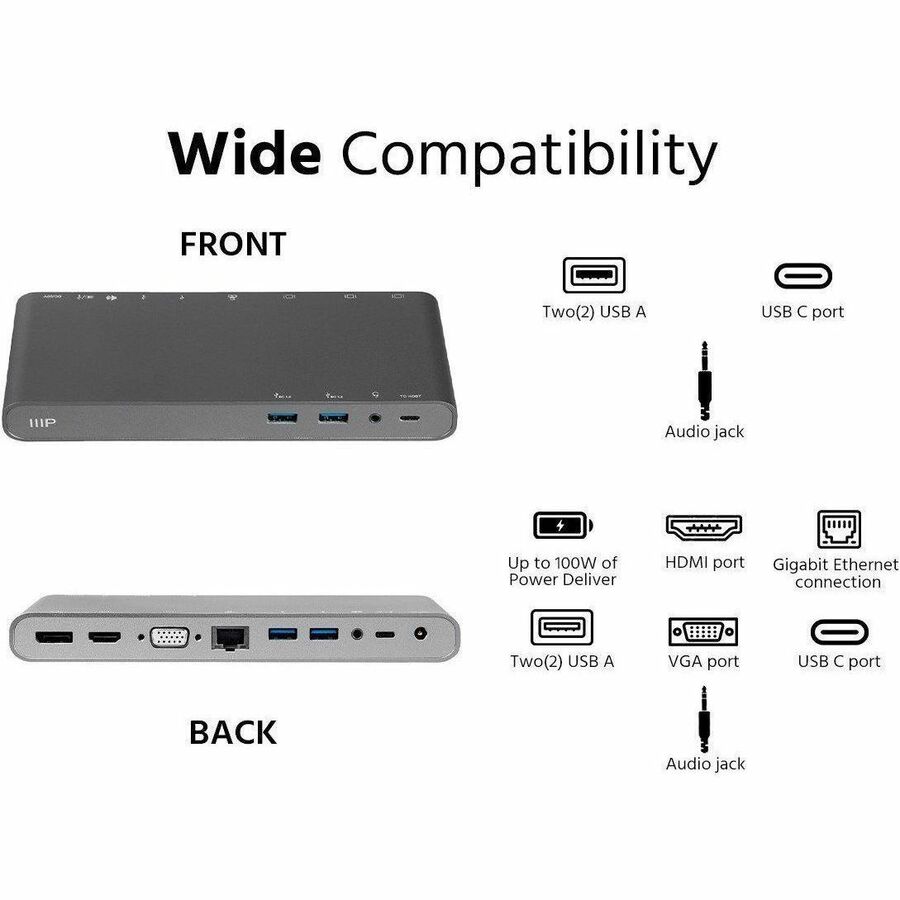

Stay Connected to Everything

The USB-C Dock features ports and connections to simultaneously support up to 10 devices, including dual monitors.


Product TypeDocking Station
Technical Information
Connectivity TechnologyWired
Charging CapabilityYes
Device Supported
  • Monitor
  • Notebook
  • Computer
  • Smartphone
  • Tablet
  • Headset
  • Speaker
FeaturesPower Delivery Pass-through
Number of Displays Supported2
Screen Mode Supported
  • 4K @30Hz
  • FHD @ 60Hz
Supported Resolutions
  • 3840 x 2160
  • 1920 x 1080
Maximum Data Transfer Rate640 MB/s
Network & Communication
Ethernet TechnologyGigabit Ethernet
Interfaces/Ports
Host InterfaceUSB Type C
Audio Line InYes
Audio Line OutYes
Number of USB 3.0 Ports5
USB Type-AYes
Number of USB Type-A Ports4
USB Type-CYes
USB Type-C Detail1 x 100W PD Charging
Number of USB Type-C Ports1
Network (RJ-45)Yes
Number of RJ-45 Ports1
VGAYes
VGA OutYes
Number of VGA Outputs1
DisplayPortYes
Number of DisplayPort Outputs1
HDMIYes
Number of HDMI Outputs1
USB Power Delivery100W
Software
Operating System Supported
  • Windows 7
  • Mac OS X 10.11 El Capitan
  • ChromeOS
  • Linux
Power Description
Maximum Power Supply Wattage75 W
Power Source TypePower Adapter
Physical Characteristics
Height7.70" (195.58 mm)
Width3.30" (83.82 mm)
Depth0.90" (22.86 mm)
Weight (Approximate)15.10 oz (428.08 g)
Miscellaneous

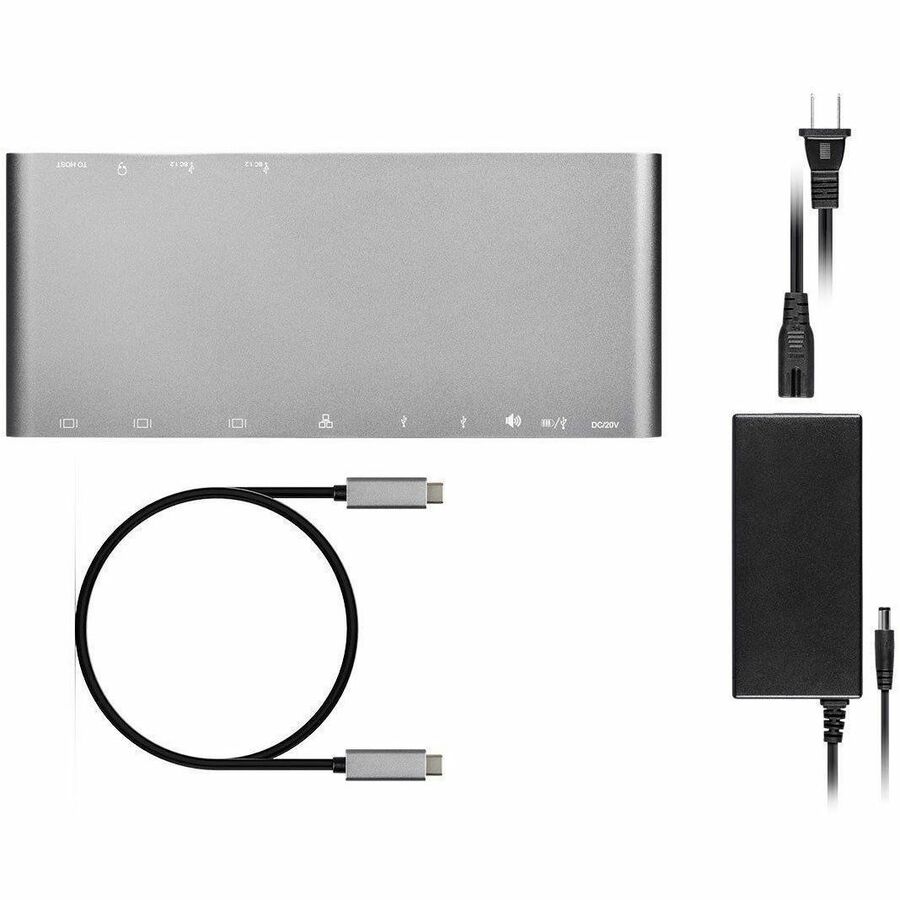

Package Contents
  • 29434 Docking Station
  • AC Adapter
ConditionNo
UPC889028069417
Warranty
Limited Warranty1 Year
