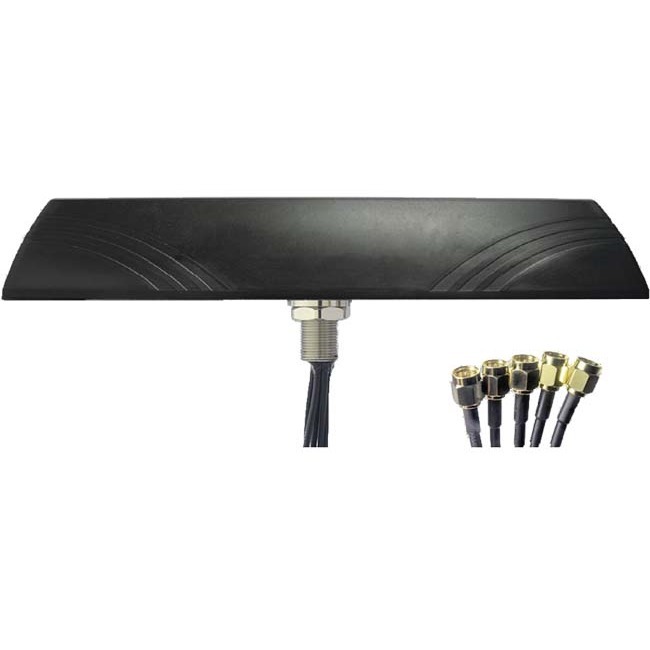

B+B SmartWorx 5-in-1 Low-Profile MiMo Antenna
690 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 2700 MHz, 2.4 GHz to 2.5 GHz, 5.8 GHz to 6 GHz - GPS, Wireless Data Network, Cellular Alarm CommunicatorExternal - Omni-directional - SMA, RP-SMA Connector
$239.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | BB-16-7053-A |
| Brand Name | B+B SmartWorx |
| Product Model | BB-16-7053-A |
| Product Name | 5-in-1 Low-Profile MiMo Antenna |
| Marketing Information | Model BB-16-7053-A is a "multiple-input, multiple-output (MiMo) omnidirectional, low-profile, external antenna. This antenna combines five separate antennas into one enclosure. It includes two wide-banded LTE antennas that cover 4G, 3G and 2G bands, one 2.4 GHz Wi-Fi antenna, one DSRC antenna and one active GPS antenna. Low loss RG174 cable is used for its flexibility and efficiency. The enclosure is designed to meet IP67 with protection from water and dust migration. |
| Product Type | Antenna |
Technical Information
| Directivity | Omni-directional |
| Operating Frequency Range |
|
Interfaces/Ports
| Connector Type |
|
Physical Characteristics
| Height | 1.50" (38.10 mm) |
| Width | 9.37" (238 mm) |
| Depth | 2.25" (57.15 mm) |
| Form Factor | External |
Miscellaneous
| Application/Usage |
|
| Condition | No |
Warranty
| Limited Warranty | 1 Year |
