Supermicro SuperServer 5039MC-H12TRF Server Barebone System - 3U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support

Intel C246 Chip - 128 GB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 4 Total Memory Slots - Serial ATA/600 RAID Supported Controller - 2 SATA Interface(s) - Processor Support (Xeon, Core i3, Celeron, Pentium) - Gigabit Ethernet - 2 x 2 kW - 3 Year

Part No. SYS-5039MC-H12TRF

by Supermicro Computer, Inc

$13522.99

Specifications
Options & Accessories (1)

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SYS-5039MC-H12TRF
Brand Name	Supermicro
Product Line	SuperServer
Product Model	5039MC-H12TRF
Product Name	SuperServer SYS-5039MC-H12TRF (Black)

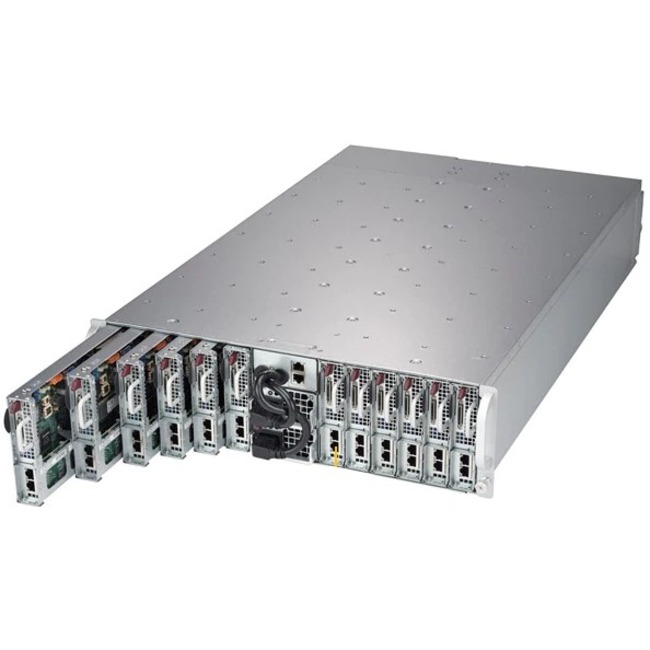

Marketing Information	The Supermicro MicroCloud modular server system provides 12 or 8 modular server nodes conveniently integrated into a compact 3U chassis that is only 29.5" or 23" deep. These cable-free, hot-pluggable server nodes operate independently. Each node is powered by an Intel® Xeon® E-2100 processor, and provides up to 64GB of ECC DDR4 2666MHz UDIMM memory, available for PCI-E 3.0 x8 expansion slot for low profile add-on card, and SATA 3.0 hard disk drives.
Product Type	Server Barebone System

Processor

Number of Nodes	12
Number of Processors Supported	1
Processor Socket	Socket H4 LGA-1151
Processor Supported	Xeon Core i3 Celeron Pentium
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C246

Memory

Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21300
Total Number of Memory Slots	4

Controllers

Controller Type	Serial ATA/600
RAID Supported	Yes

Network & Communication

Ethernet Technology	Gigabit Ethernet

I/O Expansions

Total Number of Expansion Slots	1
Number of PCI Express x4 Slots	1

Interfaces/Ports

Number of SATA Interfaces	2

Power Description

Input Voltage	230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	2 kW

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Rack Height	3U
Height	5.21" (132.33 mm)
Width	17.50" (444.50 mm)
Depth	29.50" (749.30 mm)
Weight (Approximate)	131.99 lb (59870 g)

Miscellaneous

Package Contents	SuperServer SYS-5039MC-H12TRF (Black) 12 x Super X11SCE-F Motherboard 1 x 3U Chassis 12 x AOM-BPN-MC12S 12 x AOM-CGP-I2M-O-P 1 x [NR]AOM-GEM-001-O-P 1 x [NR]AOM-LAN-MC12S-P 12 x AOM-PDB-MC12S 1 x 12-port 3U (CSE-939HS) 12-node MicroCloud hot swappable midplane 1 x USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG 2 x PWCD,US,IEC60320 C14 TO C13,3FT,14AWG 12 x LP CPU Heat Sink for 12-node Micro Cloud Series Servers 2 x AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, 360x76x40 mm,HF,RoHS/REACH 2 x Adapter Board for SC939 special gold finger directly plug to BP. 2 x ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG 1 x PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU1,3FT,14AWG 1 x PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU2,3FT,14AWG 4 x 92x92x76 mm, 12.5K RPM SC939 Optional Exhaust Fan,RoHS/REACH,PBF 1 x Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF 12 x Mylar air shroud for VLP 4 DIMM (short gap, quick install)
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No

Warranty

Limited Warranty	3 Year
