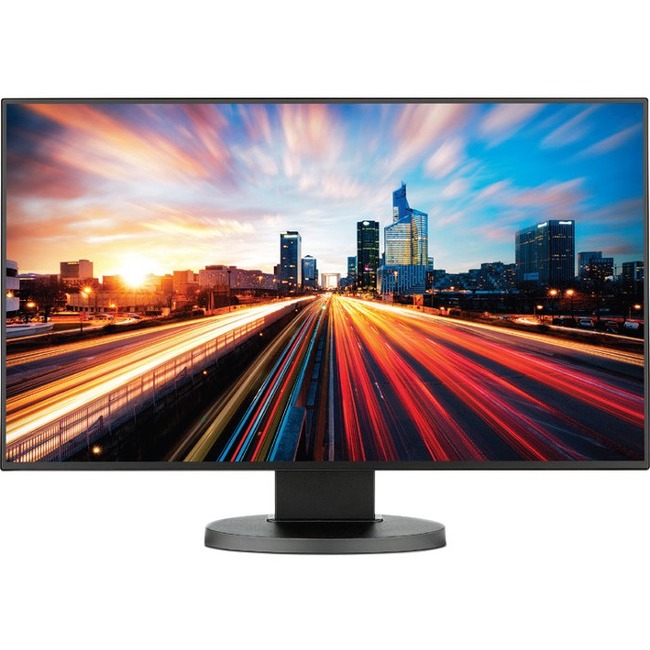

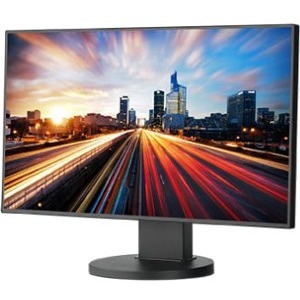

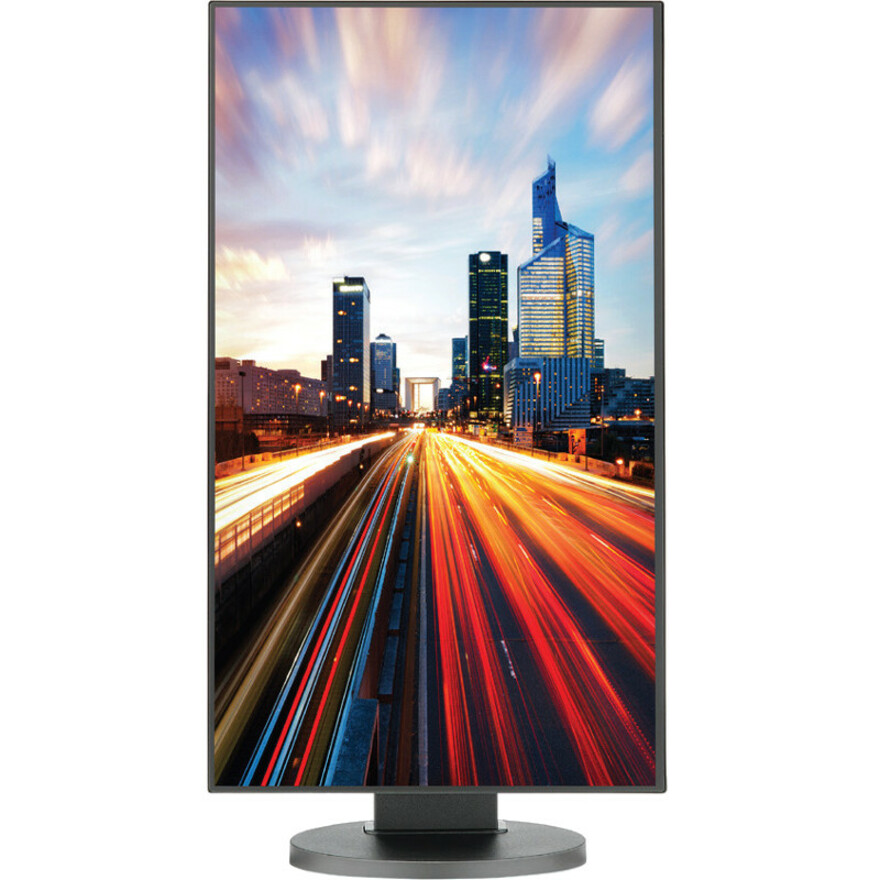

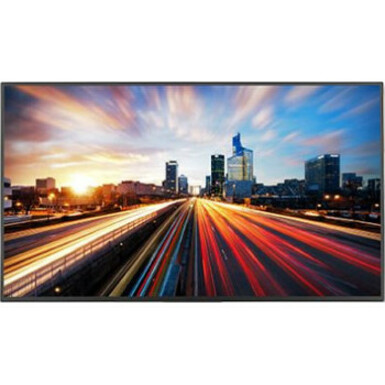

NEC Display MultiSync EX241UN-PT-H LCD Touchscreen Monitor - 16:9 - 6 ms

Part No. EX241UN-PT-H

by Sharp

NEC Display MultiSync EX241UN-PT-H LCD Touchscreen Monitor - 16:9 - 6 ms

23.8" Viewable - Projected Capacitive - Multi-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 250 cd/m² - WLED Backlight - Speakers - DVI - HDMI - USB - VGA - DisplayPort - 3 Year

Part No. EX241UN-PT-H

by Sharp

$1396.99
General Information
ManufacturerSharp
Manufacturer Part NumberEX241UN-PT-H
Brand NameNEC Display
Product LineMultiSync
Product ModelEX241UN-PT-H
Product Name24" Full HD PCAP Touch Display with 100mm VESA Mount
Marketing Information

Built on the foundations of the MultiSync EX241UN, the 10-point touch EX241UN-PT-H is an IPS desktop monitor designed for interaction. This widescreen model features a flat front display backed by a IPS panel technology with wide viewing angles (178° horizontal/vertical). It features a 5-way control button on the back with on-screen display (OSD) indicators for easy adjustment of key settings and the included ControlSync ™ technology allows users to control the settings for up to 25 EX241UN displays from one place, ideal for kiosks or other installed locations. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Its comprehensive input panel includes HDMI, DisplayPort, DVI-D, VGA and 3-port USB 3.0 hub for connecting to the latest display sources.

  • 10-point Projected Capacitive (PCAP) touch with HID support for Windows, Google Chrome, MacOS and Linux
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials

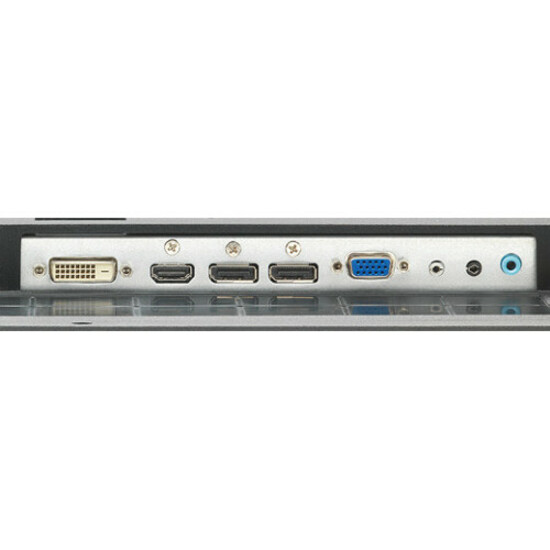

  • Full connectivity, including DisplayPort, HDMI, DVI-D and VGA inputs
  • 5-way control button with on screen display makes display adjustments simple
  • Optional human and ambient light sensors (KT-SS1) automatically detect your work conditions to determine the proper display brightness, conserving power
  • ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Product TypeLCD Touchscreen Monitor
Technical Information
Viewable Screen Size23.8"
Screen ModeFull HD
Pixel Pitch0.27000 mm x 0.27000 mm
Response Time6 ms
Aspect Ratio16:9
Backlight TechnologyWLED
Horizontal Frequency31.50 kHz to 83 kHz - Analog/Digital
Vertical Frequency56 Hz to 75 Hz
Video
Maximum Resolution1920 x 1080
Color Supported16.7 Million Colors
Native Contrast Ratio1,000:1
Brightness250 cd/m²
Color Gamut
  • 72% NTSC
  • 100% sRGB
Audio
SpeakersYes
Touchscreen Information
Touchscreen TypeProjected Capacitive
Multi-touch ScreenYes
Interfaces/Ports
DVIYes
HDMIYes
USBYes
VGAYes
DisplayPortYes
Built-in Devices
Built-in DevicesUSB Hub
Power Description
Operating Power Consumption19 W
Physical Characteristics
VESA Mount CompatibleYes
Height13.01" (330.45 mm)
Width22.08" (560.83 mm)
Depth2.05" (52.07 mm)
Weight (Approximate)7.85 lb (3560.70 g)
Miscellaneous
Package Contents
  • 24" Full HD PCAP Touch Display with 100mm VESA Mount
  • Setup Sheet
  • User Manual
  • Power Cord
  • DisplayPort Cable
  • USB Cable
  • ControlSync Cable
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0805736071122
Warranty
Limited Warranty3 Year
