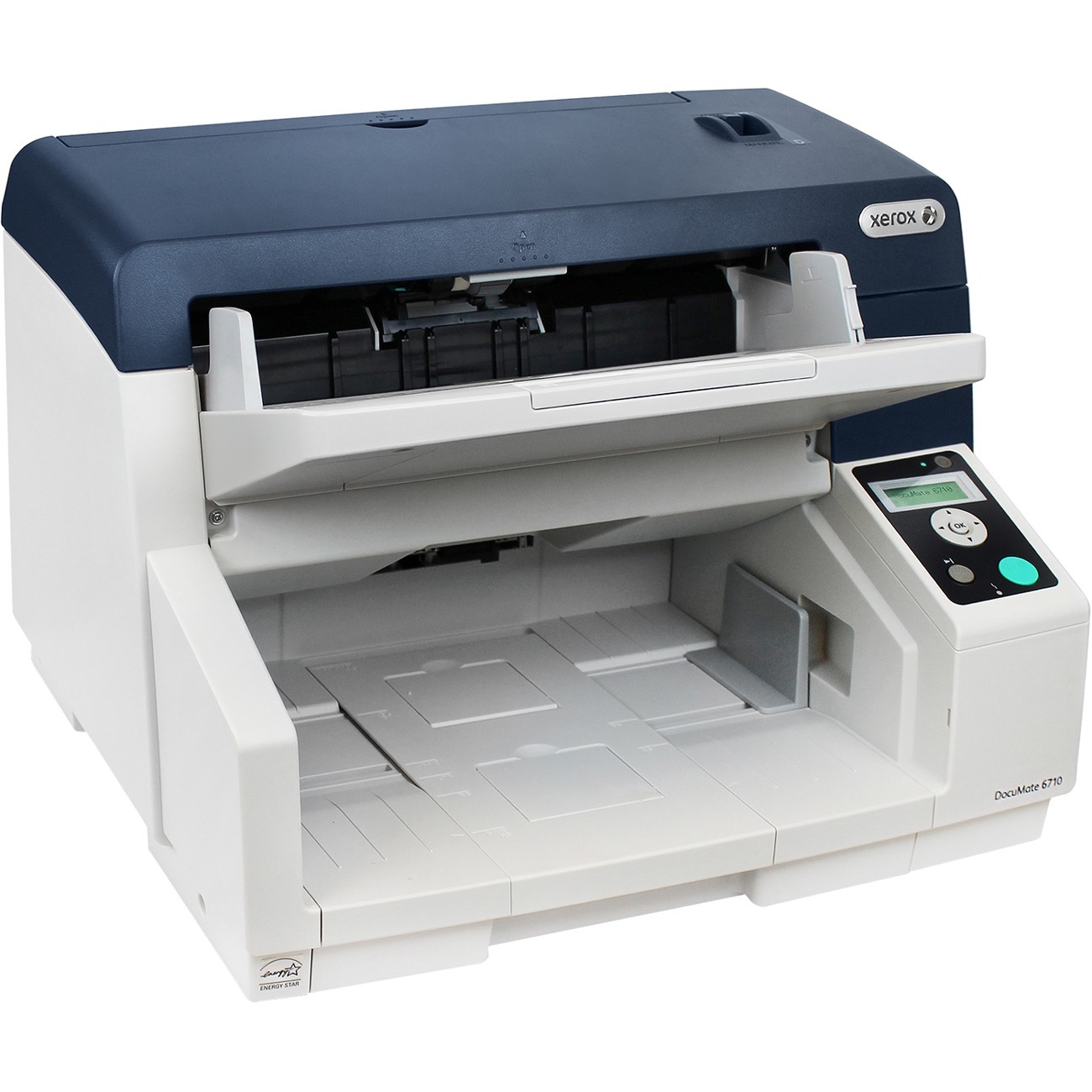

Xerox DocuMate XDM6710-A Sheetfed Scanner - 600 dpi Optical

Part No. 100N03284

by Xerox Corporation

Xerox DocuMate XDM6710-A Sheetfed Scanner - 600 dpi Optical

24-bit Color - 8-bit Grayscale - 100 ppm (Mono) - 100 ppm (Color) - Duplex Scanning - USB

Part No. 100N03284

by Xerox Corporation

$5628.99
General Information
ManufacturerXerox Corporation
Manufacturer Part Number100N03284
Brand NameXerox
Product LineDocuMate
Product ModelXDM6710-A
Product NameDocuMate 6710
Marketing Information

Production On-Ramp

Digital transformation is here, and for many enterprises, capturing large quantities of paper will continue to be a vital need. Discovery documents in the legal world. Incoming medical records in healthcare. Client documents in asset management, banking and mortgage services. Testing and student records in education. Applications in customs, immigration and other government services. Clearing boxes of historical records everywhere else. All of these applications require an on-ramp that will handle these needs with operator ease and no surprises with the ongoing cost of ownership.

Full Speed Ahead

PPM specifications can sometimes be misleading, but the true production speed is a combination of scanner speed, on-board processing, the connected PC, and the software delivering the scan to its destination. The DocuMate 6710's 100 ppm / 200 ipm speed is just the start of the story. Visioneer's On-Board Acuity technology handles 15 image enhancements in hardware, saving PC processing time. A true native USB 3.0 connection delivers a fast pipeline. Finishing off the job, Visioneer Acuity detects the available memory and processing power of the connected PC and uses multi-thread, multi-core logic to ensure that the PC itself isn't the bottleneck. The result: scan speeds as advertised.

Breakthrough Parallel Scanning

You can connect multiple DocuMate 6710's to one scanning workstation, multiplying the number of pages handled every hour. And each scanner can be running a different workflow. This opens up a completely new way to handle scans in a concurrent fashion. Connect two 6710's, scan on one while you're setting up the other. Or run several at the same time. We support up to 10 connections - the only limitation is the capacity of the connected workstation.

True Workflow and Integration

The industry's first scanner workflow solution, Visioneer's OneTouch with Acuity allows operators to define the steps the scan will go through from scanning to integration with the destination. What's more, the 6710 can store up to 90 jobs on the control panel display, so they can be selected without the PC. Completing the story, Visioneer TWAIN DriverPLUS with Acuity provides precise control of scan settings, beyond the TWAIN drivers offered by competitors. This is vital to easy integration with IT and cloud document and content applications.

Product TypeSheetfed Scanner
Technical Information
Optical Resolution (dpi)600
Scan Color
  • Color
  • Monochrome
Color Depth24-bit
Grayscale Depth8-bit
Maximum Mono Scan Speed (ppm)100
Maximum Color Scan Speed (ppm)100
Maximum Mono Scan Speed (ipm)200
Maximum Color Scan Speed (ipm)200
Media TypePlain Paper
Media SizeCustom Size - 12.01" (305 mm) x 100" (2540 mm)
Scanning ModesDuplex
ADF Capacity300 Sheets
Duplex ScanningYes
Interfaces/Ports
USBYes
Software
Operating System SupportedWindows
Physical Characteristics
Height13.60" (345.44 mm)
Width18.40" (467.36 mm)
Depth17.50" (444.50 mm)
Weight (Approximate)37.40 lb (16964.35 g)
Miscellaneous
Energy StarYes
ConditionNo
UPC785414119608
