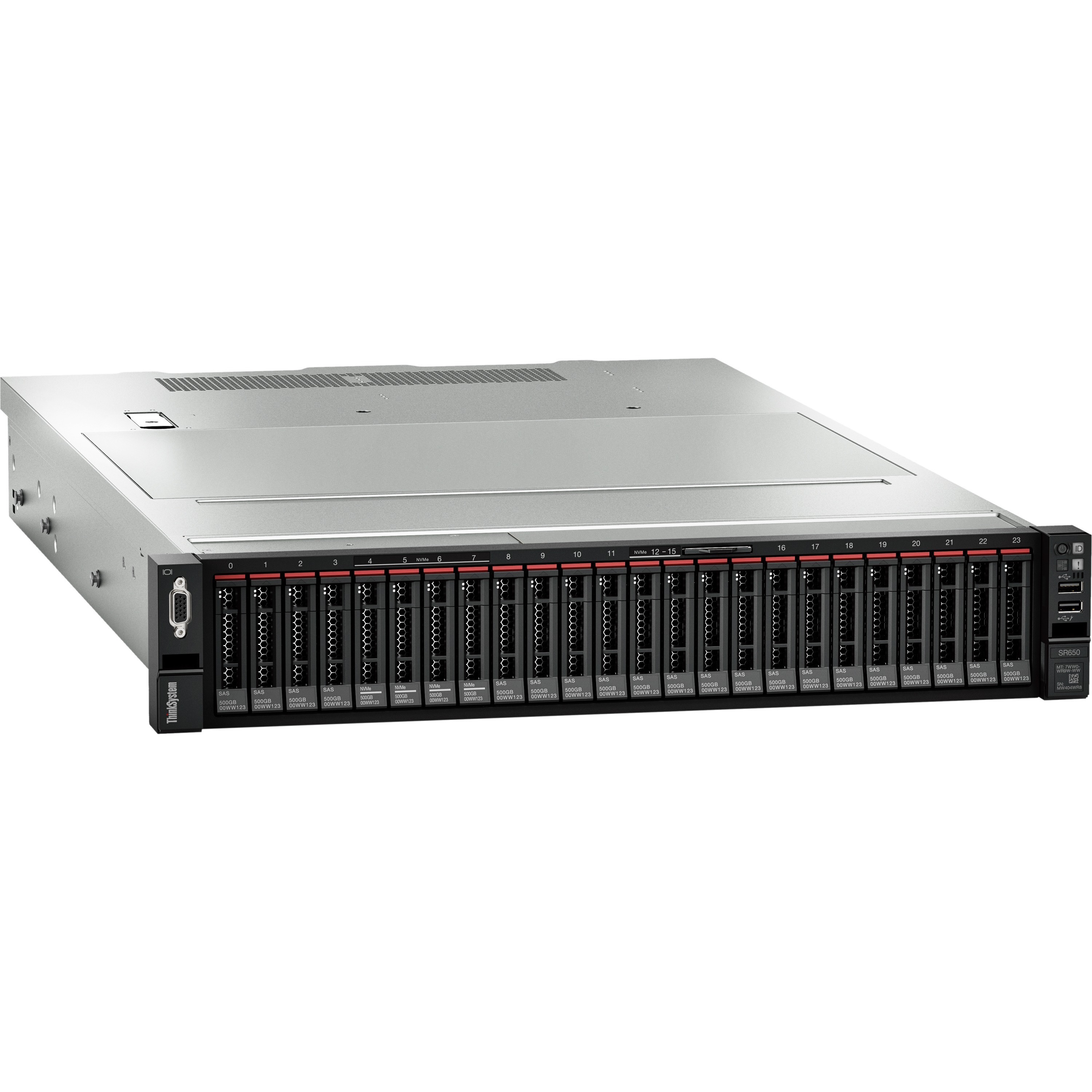

Lenovo ThinkSystem SR650 7X06A0FHNA 2U Rack Server - 1 Xeon Silver 4208 2.10 GHz - 16 GB RAM - Serial ATA/600 Controller

Part No. 7X06A0FHNA

by Lenovo Group Limited

Lenovo ThinkSystem SR650 7X06A0FHNA 2U Rack Server - 1 Xeon Silver 4208 2.10 GHz - 16 GB RAM - Serial ATA/600 Controller

2 Processor Support - TruDDR4 - G200e Up to 16 MB Graphic Card - Gigabit Ethernet - 1 x 750 W

Part No. 7X06A0FHNA

by Lenovo Group Limited

$3664.99
General Information
ManufacturerLenovo Group Limited
Manufacturer Part Number7X06A0FHNA
Brand NameLenovo
Product LineThinkSystem
Product SeriesSR650
Product Model7X06A0FHNA
Product NameThinkSystem SR650 7X06A0FHNA Server
Marketing Information

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.

Product TypeServer
Processor
Number of Processors Supported2
Number of Processors Installed1
Processor TypeXeon Silver
Processor Model4208
Processor CoreOcta-core (8 Core)
Processor Speed2.10 GHz
Memory
Standard Memory16 GB
Memory TechnologyTruDDR4
Total Number of Memory Slots24
Number of Occupied Memory Slots1
Storage
Total Hard Drive CapacityNo
Optical Drive TypeNo
Controllers
Controller TypeSerial ATA/600
RAID SupportedNo
I/O Expansions
Number of Total Expansion BaysNo
Display & Graphics
Graphics Controller ModelG200e
Graphics Memory Capacity16 MB
Network & Communication
Ethernet TechnologyGigabit Ethernet
Operating System
Operating SystemNo
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported2
Number of Power Supplies Installed1
Plug/Connector TypeC13
Maximum Power Supply Wattage750 W
Physical Characteristics
Form FactorRack
Rack Height2U
Height3.40" (86.36 mm)
Width17.50" (444.50 mm)
Depth28.30" (718.82 mm)
Weight (Approximate)70.55 lb (32000 g)
Miscellaneous
Package Contents
  • ThinkSystem SR650 7X06A0FHNA Server
  • Tool-less Rail Kit
  • Rack Installation Guide
  • Electronic Publications Flyer
  • 2.8 m C13-C14 Rack Power Cable
Energy StarYes
Environmentally FriendlyYes
Energy Efficiency CertificationENERGY STAR 2.1
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC9999999999999
Warranty
Limited Warranty3 Year
