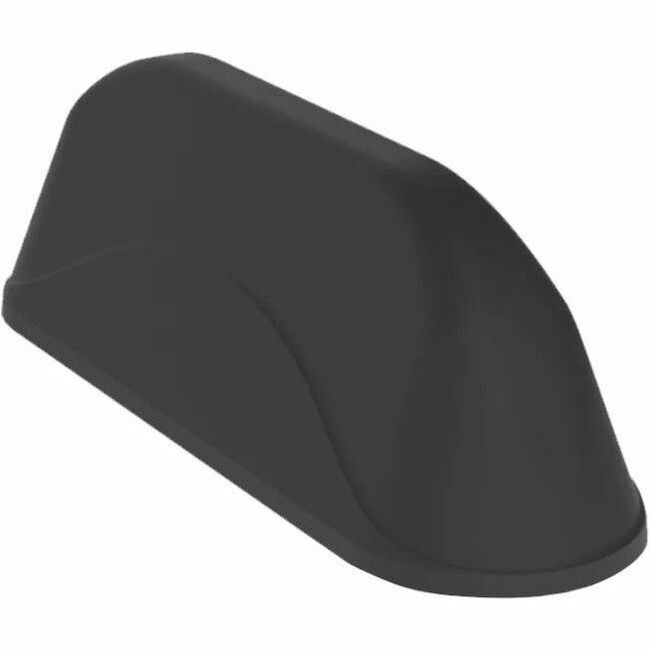

Panorama Antennas L[G]AM-7-27-[X]24-58 Antenna
698MHz - 960MHz, 1710MHz - 3800MHz, 1562MHz - 1612MHz, 698MHz - 960MHz, 1710MHz - 2170MHz, 2500MHz - 3800MHz, 2300MHz - 2500MHz, 4900MHz - 6000MHz - 26 dB - 6 dBi - Cellular Network, GPS, Vending Machine, Payment Terminal - Black - Panel Mount - Omni-directional - SMA Connector
$66.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LPAM-7-27-S24-58 |
| Brand Name | Panorama Antennas |
| Product Series | L[G]AM-7-27-[X]24-58 |
| Product Name | L[G]AM-7-27-[X]24-58 Antenna |
| Marketing Information | This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications. The L[G]AM consists of a 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, a 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface. |
| Product Type | Antenna |
Technical Information
| Directivity | Omni-directional |
| Operating Frequency Range |
|
| Antenna Gain | 26 dB |
| Antenna Gain (Isotropic) | 6 dBi |
| Voltage Standing Wave Ratio (VSWR) | <2:1 |
Interfaces/Ports
| Connector Type | SMA |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 1.97" (50 mm) |
| Width | 1.73" (44 mm) |
| Depth | 5.91" (150 mm) |
| Form Factor | Panel Mount |
Miscellaneous
| Application/Usage |
|
| Condition | No |
