Supermicro SuperServer 5039MC-H8TRF Server Barebone System - 3U Rack-mountable - Socket H4 LGA-1151 - 1 x Processor Support
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5039MC-H8TRF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5039MC-H8TRF |
| Product Name | SuperServer SYS-5039MC-H8TRF (Black) |

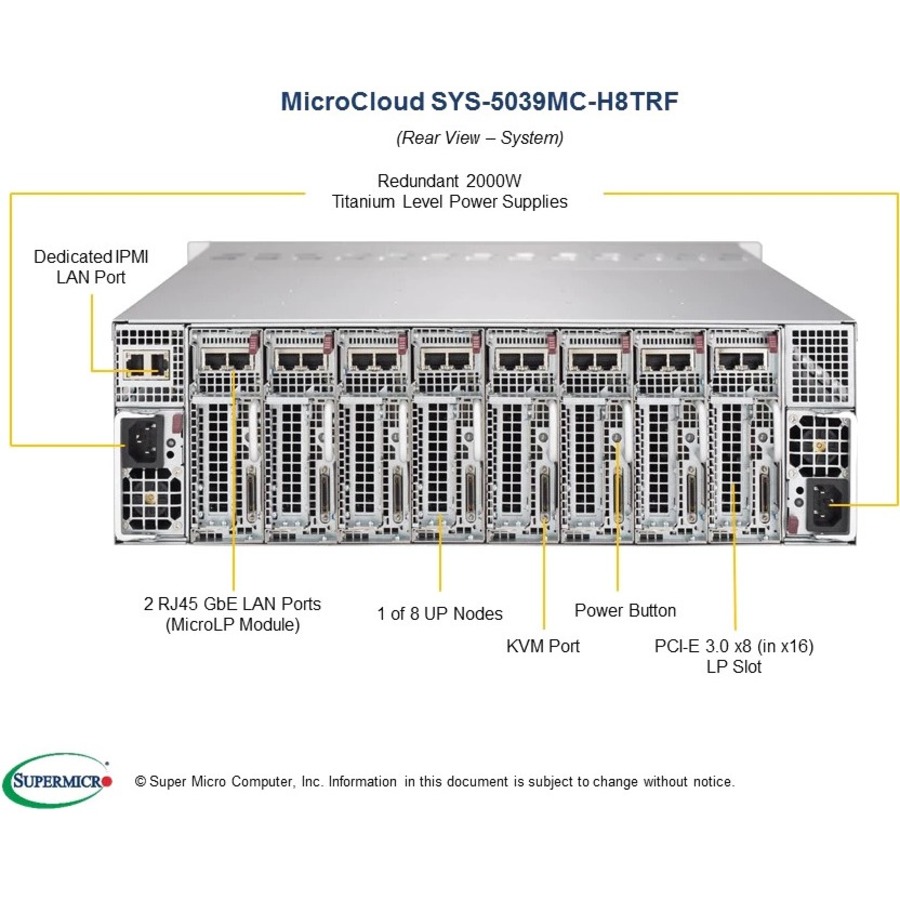

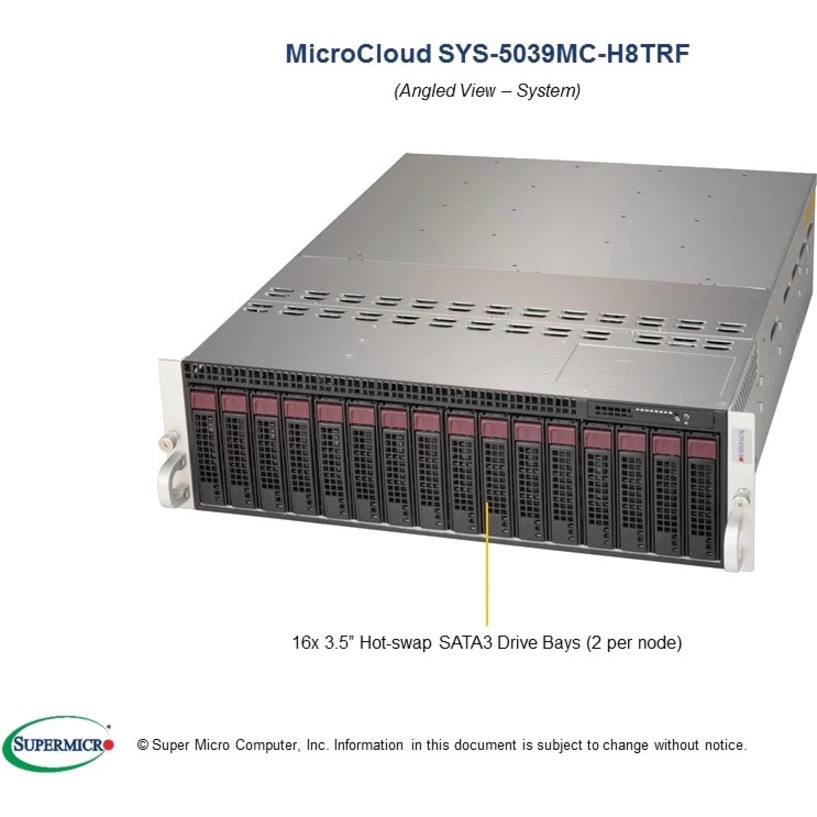

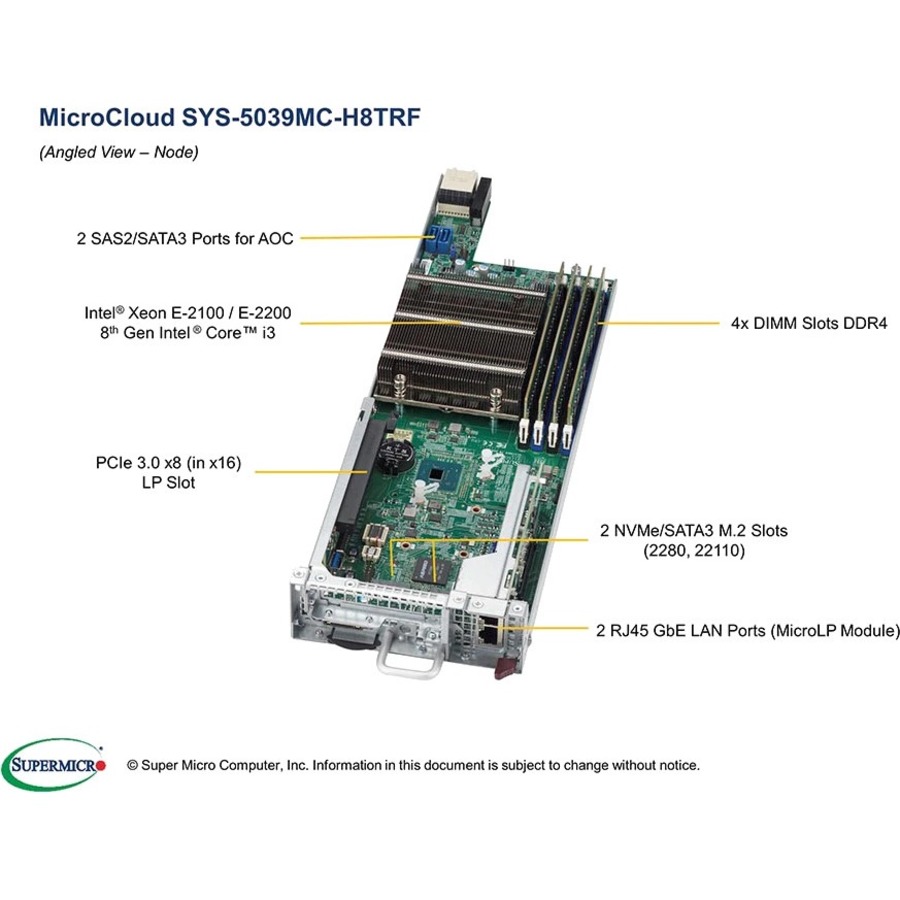

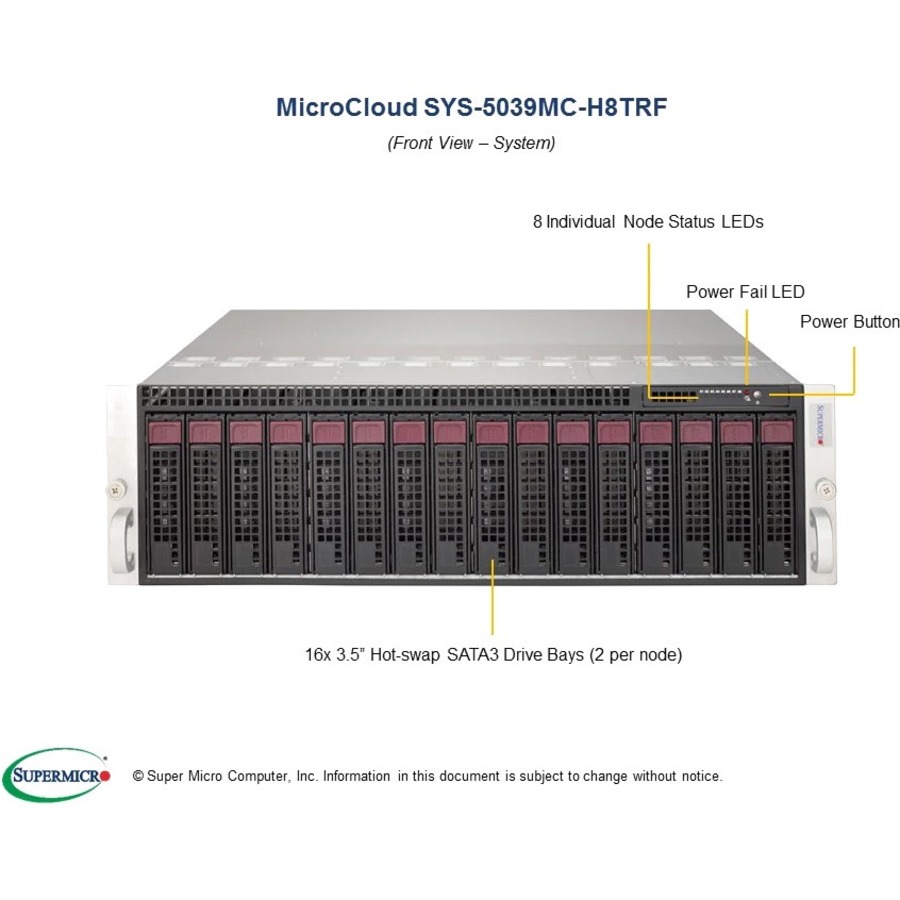

| Marketing Information | The Supermicro MicroCloud modular server system provides 12 or 8 modular server nodes conveniently integrated into a compact 3U chassis that is only 29.5" or 23" deep. These cable-free, hot-pluggable server nodes operate independently. Each node is powered by an Intel® Xeon® E-2100 processor, and provides up to 64GB of ECC DDR4 2666MHz UDIMM memory, available for PCI-E 3.0 x8 expansion slot for low profile add-on card, and SATA 3.0 hard disk drives. |
| Product Type | Server Barebone System |
| Number of Nodes | 8 |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported |
|
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C246 |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 4 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of SATA Interfaces | 2 |
| Input Voltage |
|
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2 kW |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.21" (132.33 mm) |
| Width | 17.26" (438.40 mm) |
| Depth | 23.20" (589.28 mm) |
| Weight (Approximate) | 62.19 lb (28210 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| Limited Warranty | 3 Year |
