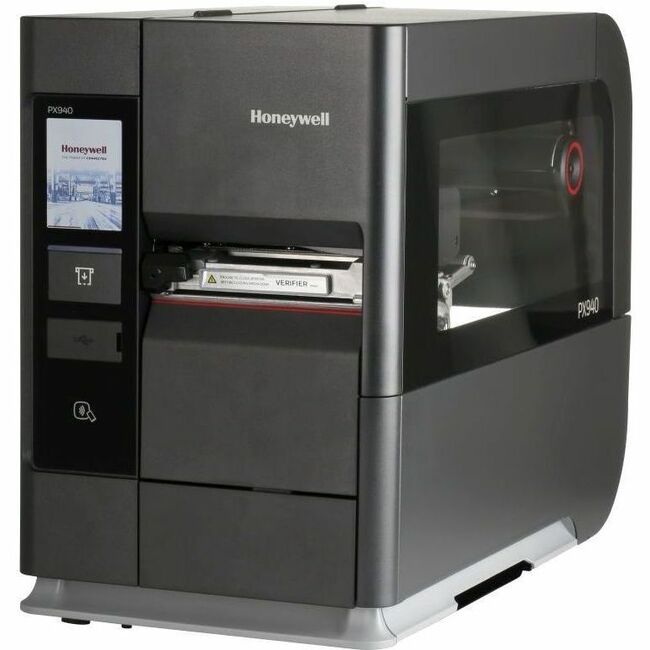

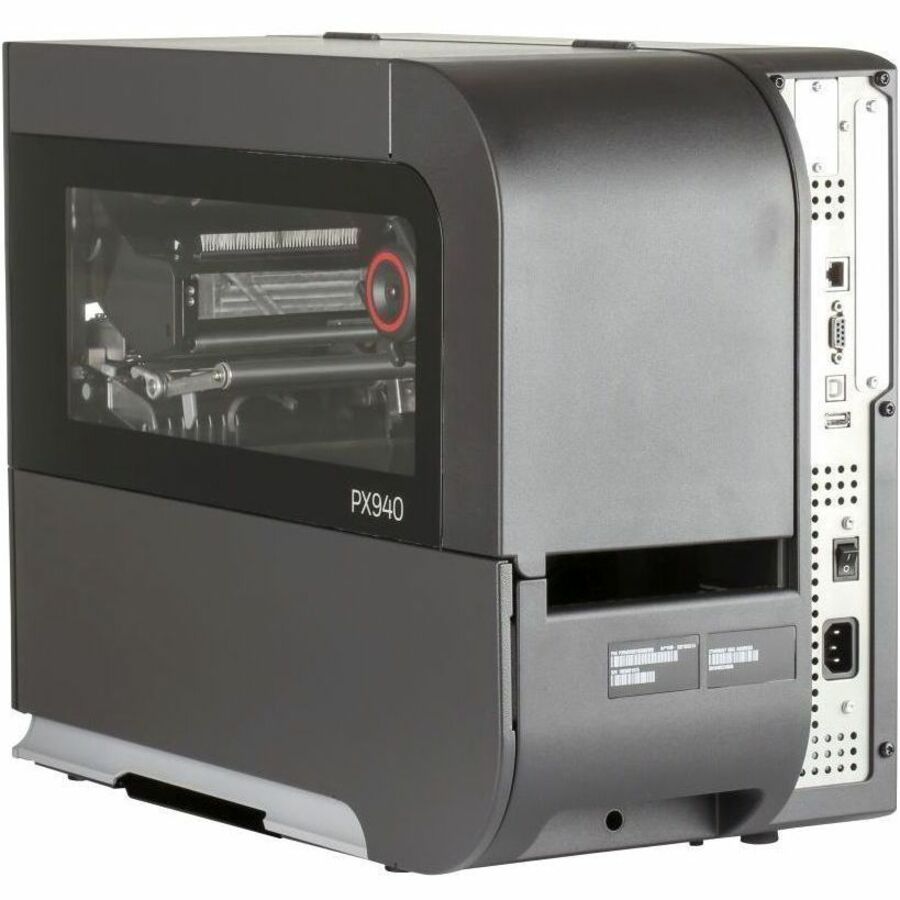

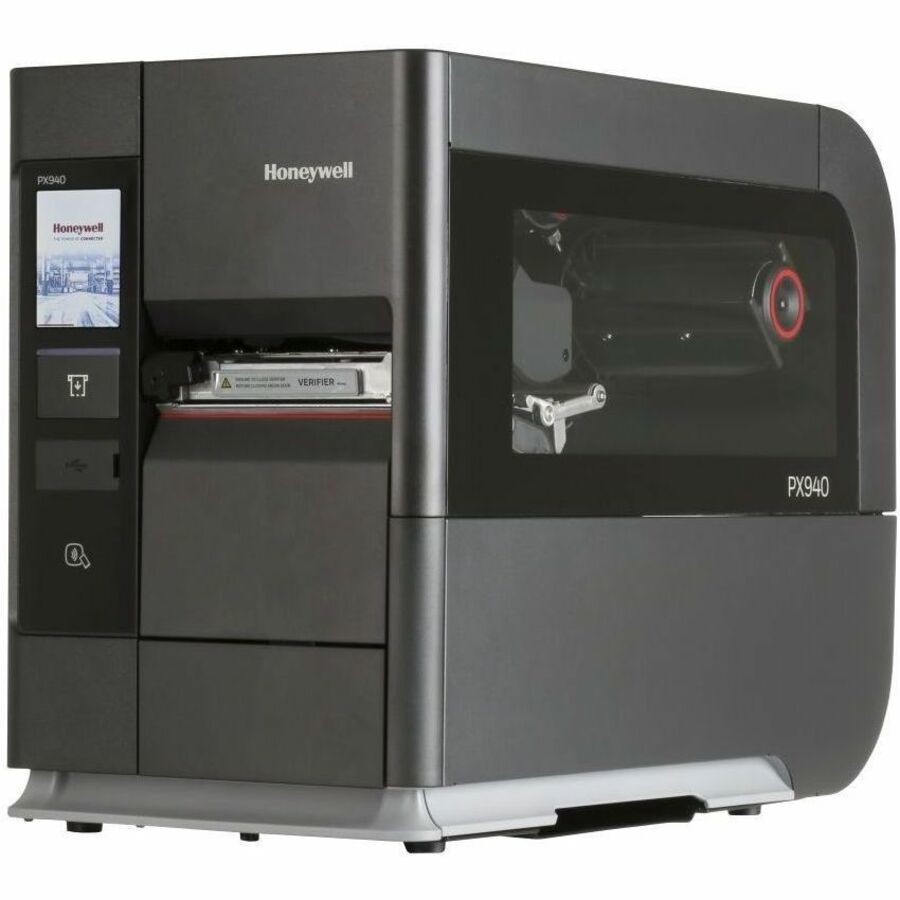

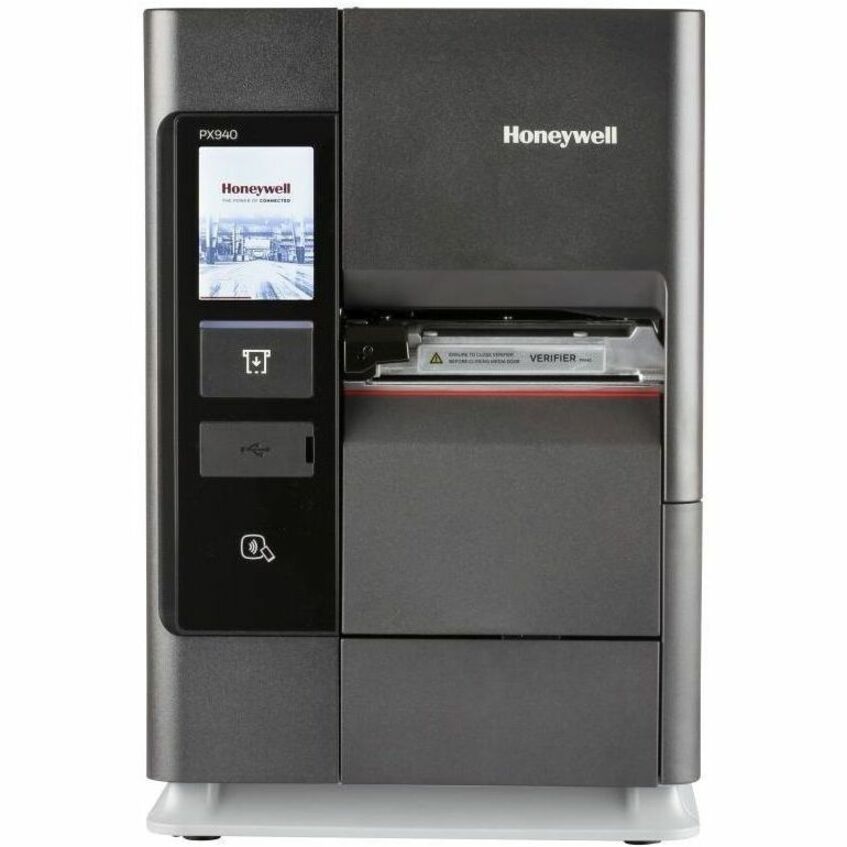

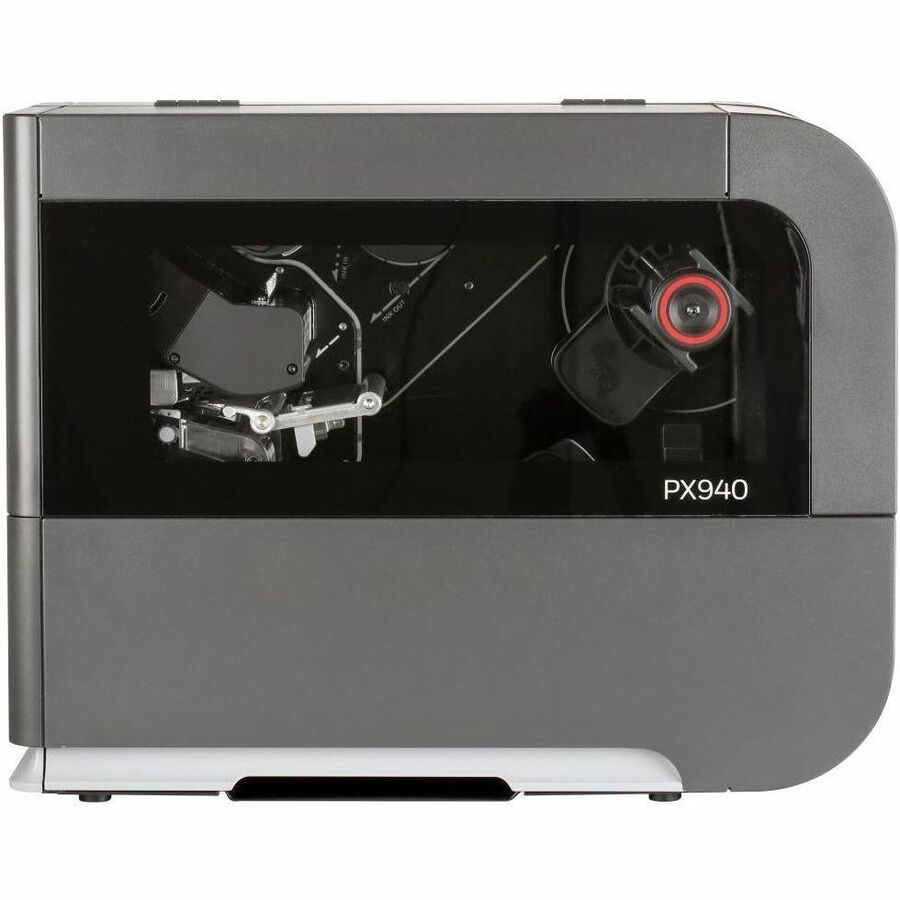

Honeywell PX940 Desktop, Industrial, Transportation & Logistic, Pharmacy, Healthcare Direct Thermal/Thermal Transfer Printer - Monochrome - Tabletop - Label Print - USB - USB Host - Serial - Bluetooth - Near Field Communication (NFC)

Part No. PX940A00100060602

by Honeywell International, Inc

Honeywell PX940 Desktop, Industrial, Transportation & Logistic, Pharmacy, Healthcare Direct Thermal/Thermal Transfer Printer - Monochrome - Tabletop - Label Print - USB - USB Host - Serial - Bluetooth - Near Field Communication (NFC)

3.5" (88.90 mm) LCD Display Screen - Real Time Clock - Rewinder - Peel Facility - 21.72" (551.69 mm) Print Length x 4.16" (105.60 mm) Print Width - 11.81 in/s (300 mm/s) Mono - 600 dpi - 4.49" (114 mm) Label Width x 0.24" (6.10 mm) Label Length - ZPL II, ZSim2, Direct Protocol (DP), Fingerprint, Intermec Printer Language (IPL), DPL, WMS, XML Emulation - For PC, Android, iOS

Part No. PX940A00100060602

by Honeywell International, Inc

$5714.99
General Information
ManufacturerHoneywell International, Inc
Manufacturer Part NumberPX940A00100060602
Brand NameHoneywell
Product SeriesPX940
Product ModelPX940
Product NamePX940 Direct Thermal/Thermal Transfer Printer
Marketing Information

High-Performance Industrial Printer with Integrated Label Verification | The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.

Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.

The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE, used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer

With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.

Product TypeDirect Thermal/Thermal Transfer Printer
Technical Information
Recommended UseLabel Print
Print Color CapabilityMonochrome
Maximum Mono Print Speed11.81 in/s (300 mm/s)
Maximum Print Resolution (dpi)600
Maximum Print Length21.72" (551.69 mm)
Maximum Print Width4.16" (105.60 mm)
Barcode Symbology Supported
  • Code 39
  • HIBC Code 39
  • Code 93
  • Code 128
  • ISBT-128
  • HIBC Code 128
  • EAN 128
  • GS1-128
  • EAN-8
  • EAN-13
  • UPC-A
  • Interleaved 2 of 5
  • SCC-14
  • RSS14E
  • GS1 DataBar Expanded
  • Data Matrix
  • ISBT Data Matrix
  • QR Code
Peel FacilityYes
Real Time ClockYes
RewinderYes
Application/Usage
  • Desktop
  • Industrial
  • Transportation & Logistic
  • Pharmacy
  • Healthcare
FeaturesRugged
Mobile Device PrintingYes
Memory
Standard Memory1 GB

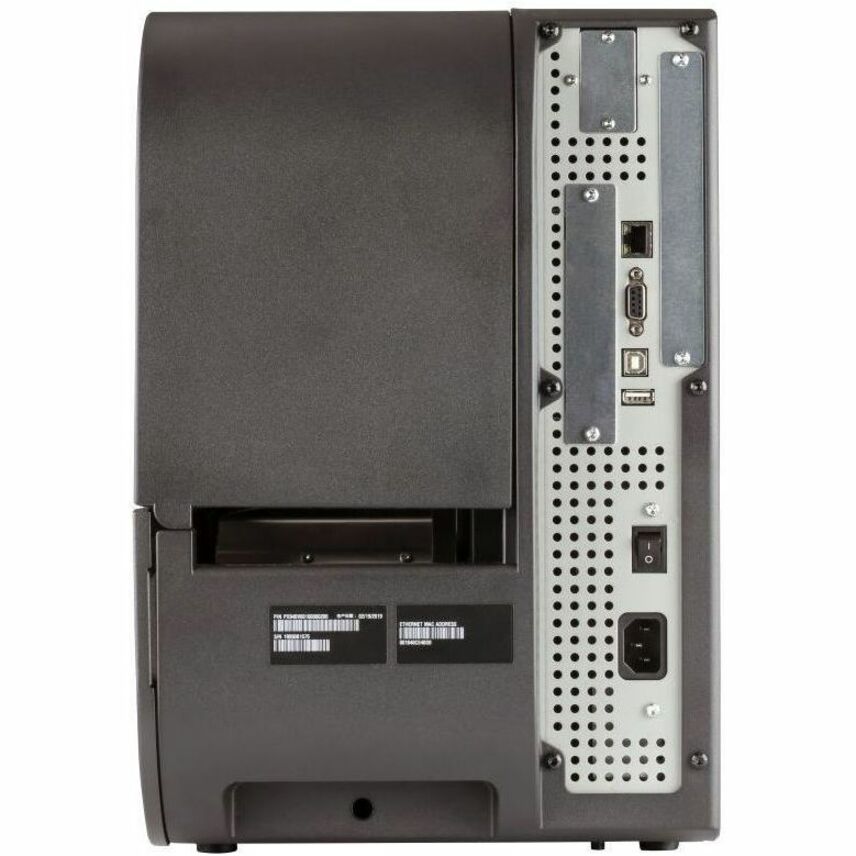

Interfaces/Ports
Serial PortYes
USB HostYes
USBYes
Network & Communication
EthernetYes
BluetoothYes
Near Field Communication (NFC)Yes

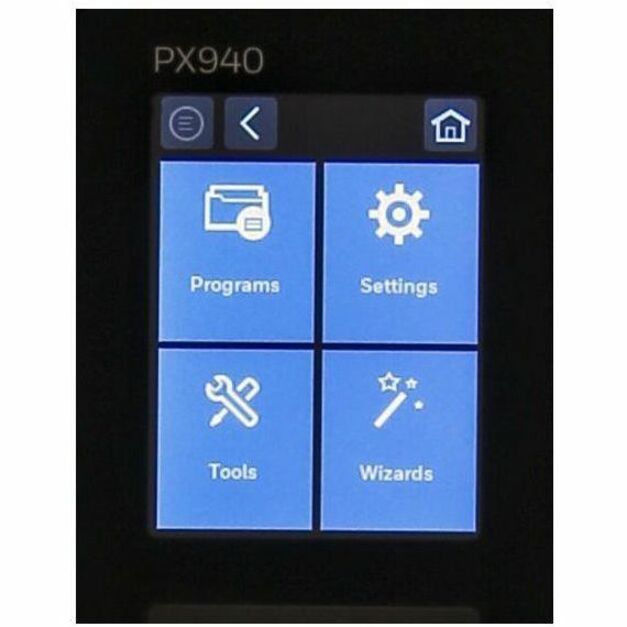

Display & Graphics
Display ScreenYes
Screen Size3.5" (88.90 mm)
Display Screen TypeLCD
TouchscreenYes
Media Types & Handling
Media Type
  • Label
  • Gap
  • Black Mark
  • Notch
  • Tag
  • Continuous Label
Media SensorLabel Taken Sensor
Media Thickness10 mil (0.254000 mm)
Maximum Roll Diameter8.4" (212.70 mm)
Maximum Label Width4.49" (114 mm)
Maximum Label Length0.24" (6.10 mm)
Fonts & Emulation
Language Emulation
  • ZPL II
  • ZSim2
  • Direct Protocol (DP)
  • Fingerprint
  • Intermec Printer Language (IPL)
  • DPL
  • WMS
  • XML
Power Description
Power SourceAC Supply
Frequency
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature41°F (5°C) - 104°F (40°C)
Storage Temperature158°F (70°C)
Physical Characteristics
Form FactorTabletop
Height15.70" (398.70 mm)
Width10.28" (261 mm)
Depth19.92" (506 mm)
Weight (Approximate)50.71 lb (23000 g)
Miscellaneous
Platform Supported
  • PC
  • Android
  • iOS
Energy StarYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
