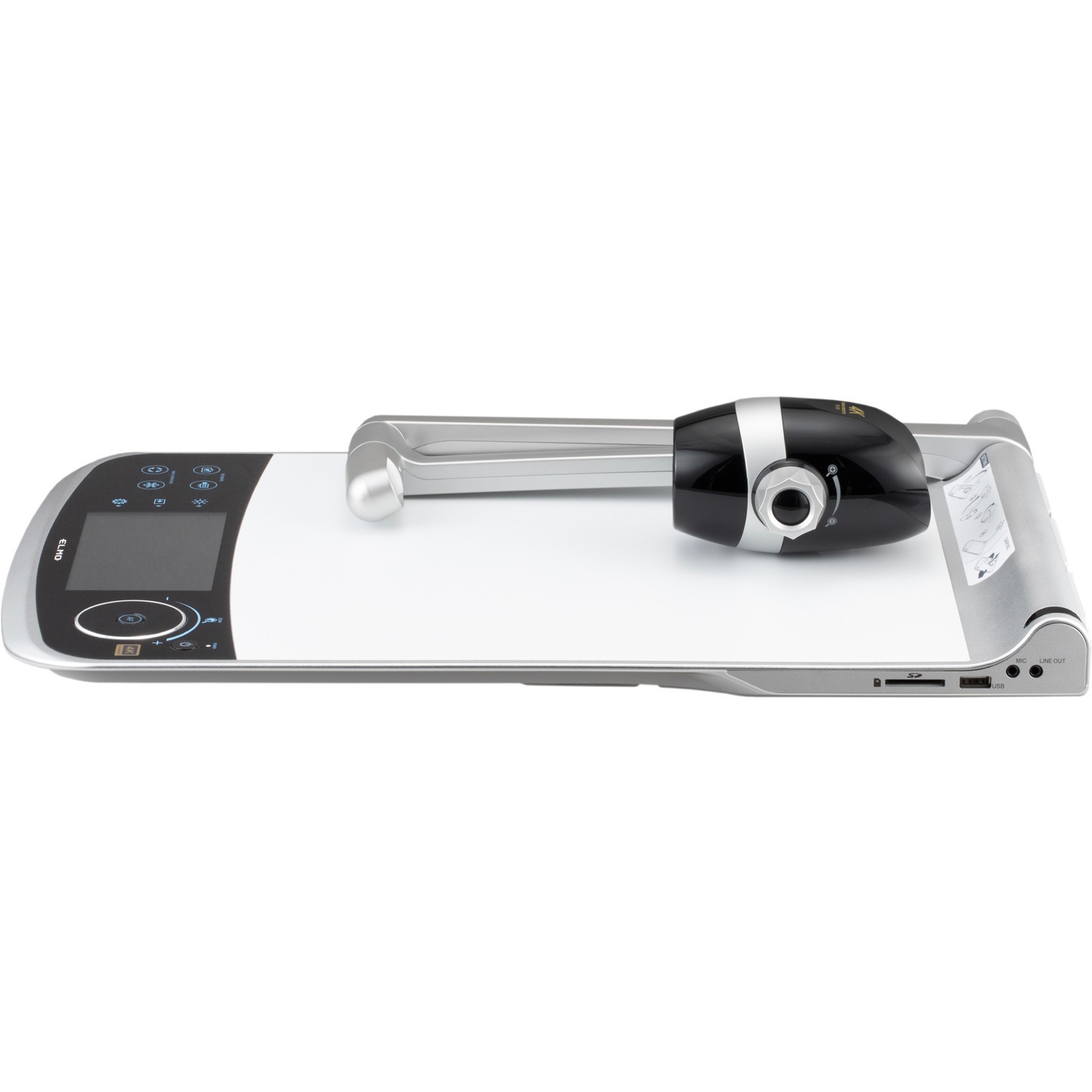

Elmo PX-30E Document Camera

Part No. 1375

by Elmo Company, Ltd

Elmo PX-30E Document Camera

CMOS - 12x Optical Zoom - 12x Digital Zoom - 60 fps

Part No. 1375

by Elmo Company, Ltd

$3478.99
General Information
ManufacturerElmo Company, Ltd
Manufacturer Part Number1375
Brand NameElmo
Product ModelPX-30E
Product NamePX-30E Document Camera
Marketing Information

With an unprecedented 288x zoom, the PX-30E captures in ultra-vibrant 4K resolution and records video at 30fps that can be saved via SD card, USB flash device, or the camera's internal memory. PX-30E comes with a variety of shooting modes including 4:3 and widescreen 16:9, with a capture area of up to A4 portrait and A3 landscape. The PX-30E also features an all-new 5" High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control, a zoom toggle wheel with autofocus, as well as a variety of output options (HDMI, VGA, USB, HDBaseT and TCP/IP control). The platform stage is magnetic and comes with a custom whiteboard surface that can be written on with dry erase markers to show lessons and annotate during demonstrations.

Enhancements from the PX-30 model include a zoom dial and auto focus button on the camera head, upgraded LED light to reduce glare, HDMI cable connection locks, reduced height jog dial that bring it flush to the stage, quicker brightness control response, an operation panel lock-out feature, and a wake on LAN feature.

Product TypeDocument Camera
Technical Information
Image Sensor TypeCMOS
Effective Camera Resolution12 Megapixel
Maximum Image Resolution3840 x 2160
Focal Length50 mm (1.97") to 200 mm (7.87")
Optical Zoom12x
Digital Zoom12x
Maximum Frame Rate60 fps
Display ColorColor
Platform Supported
  • PC
  • Mac
Features
  • Auto Focus
  • Built-in LED
  • Manual Focus
Display & Graphics
Screen Size5"
Display Screen TypeLCD
TouchscreenYes
Network & Communication
Network (RJ-45)Yes
Interfaces/Ports
USBYes
HDMIYes
VGA InYes
VGA OutYes
SerialYes
Audio Line InYes
Audio Line OutYes
Power Description
Input Voltage12 V DC
Physical Characteristics
Weight (Approximate)9.90 lb (4490.56 g)
Warranty
Limited Warranty5 Year
