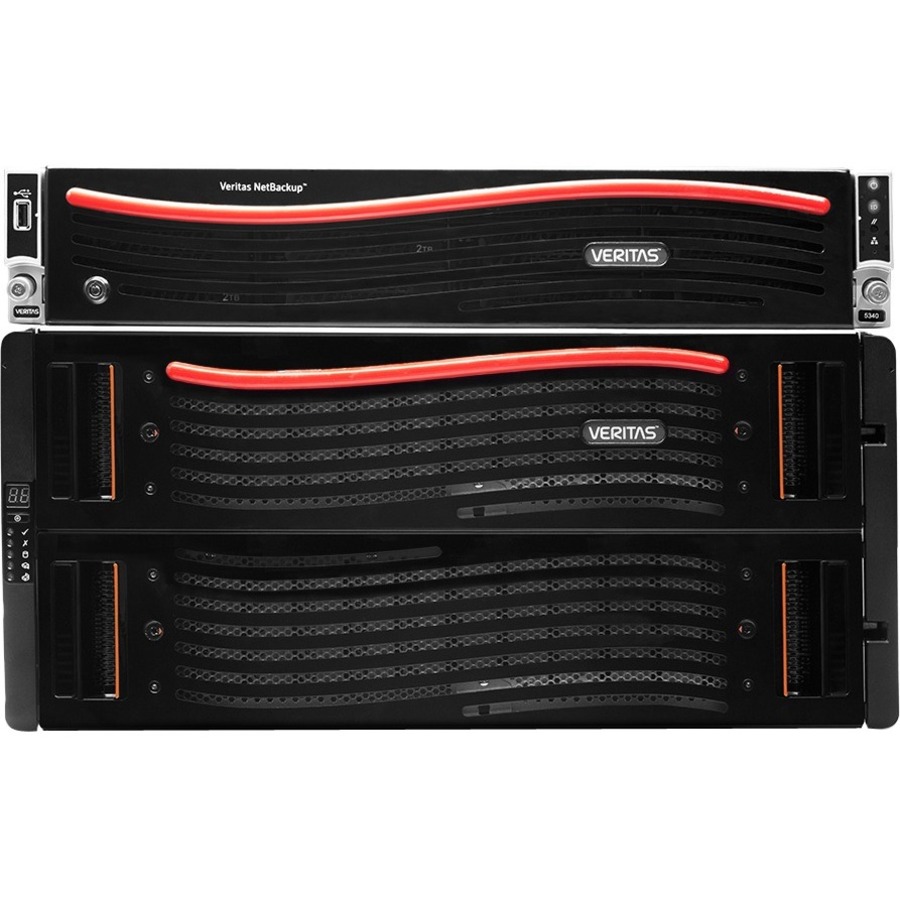

Veritas NetBackup 5340 SAN/NAS Storage System

Part No. 24401-M0032

by Veritas Technologies LLC

$378291.99

Veritas NetBackup 5340 SAN/NAS Storage System

1 Nodes - 2 x Intel Xeon 2 GHz - 1.50 TB RAM - 12Gb/s SAS Controller - RAID Supported - 8 x Total Slot(s) - 10 Gigabit Ethernet - VGA - 4 USB Port(s) - 1 USB 2.0 Port(s) - 3 USB 3.0 Port(s) - Network (RJ-45) - Linux - Rack-mountable

Part No. 24401-M0032

by Veritas Technologies LLC

$378291.99
General Information
ManufacturerVeritas Technologies LLC
Manufacturer Part Number24401-M0032
Brand NameVeritas
Product LineNetBackup
Product Series5000
Product Model5340
Product NameNetBackup 5340 SAN/NAS Storage System
Marketing Information

Veritas NetBackup™ 5340 delivers high performance, scalable capacity, high availability and resiliency to address the most aggressive backup and recovery objectives in the data center while protecting both virtual and physical environments. Built on industry leading NetBackup software, the NetBackup 5340 Appliance is an integrated media server with storage and offers both client and target deduplication to reduce network bandwidth and storage capacity requirements. As an integrated backup appliance, it addresses the OpEx and CapEx challenges organizations face today while preparing to modernizefor the future. The NetBackup 5340 is offered in a High Availability (HA) configuration. The HA configuration increases system reliability, provides higher backup and recovery throughput as well as higher operational availability at significantly lower operational costs.

NETBACKUP 5340 HIGHLIGHTS

  • Ideal for enterprise environments-Starting at 120 TB andexpandable to 1.92PB usable capacity, NetBackup 5340 is designed for large enterprises and data centers requiring performance, capacity, and resiliency.
  • Eliminate point products-Reduce 3rd party point products such as target dedupe appliances, tape, or virtual tape libraries (VTL).
  • Reduce capital and operating expenditures- Consolidate existing media servers and target dedupe appliances into an allin- one appliance; reduce floor space, power and cooling costs.
  • Simple NetBackup Software Licensing-Pay once for NetBackup software and freely replicate, change retention policies, and refresh hardware without penalties.
  • Easily expand or refresh existing NetBackup environments without disrupting operations-Deploy NetBackup 5340 media server and storage within your NetBackup domain.
  • Improve resource utilization-Decrease backup storage up to 50 times and bandwidth consumption up to 99 percent.
  • Flexible deduplication options-Deduplication at source or target; inline or post-process.
  • Reduce downtime with Veritas™ AutoSupport-Monitors key hardware components and notifies the administrator of fault events.
Product TypeSAN/NAS Storage System
Processor & Chipset
Number of Nodes1
Number of Processors Installed2
Processor ManufacturerIntel
Processor TypeXeon
Processor Speed2 GHz
Memory
Standard Memory1.50 TB
Network & Communication
Ethernet Technology10 Gigabit Ethernet
I/O Expansions
Total Number of Expansion Slots8
Expansion Slot TypeSFP+
Controllers
Controller Type12Gb/s SAS
RAID SupportedYes
Interfaces/Ports
Total Number of USB Ports4
Number of USB 2.0 Ports1
Number of USB 3.0 Ports3
Network (RJ-45)Yes
Number of Network (RJ-45) Ports9
VGAYes
Fibre ChannelYes
Software
Operating SystemLinux
Management & Protocols
Protocols
  • FCP
  • IPMI 2.0
Power Description
Number of Power Supplies Installed2
Redundant Power SupplyYes
Physical Characteristics
Height3.50" (88.90 mm)
Width19" (482.60 mm)
Depth30.50" (774.70 mm)
Form FactorRack-mountable
Weight (Approximate)42.99 lb (19500 g)
Miscellaneous
Energy StarYes
ConditionNo
Warranty
Limited Warranty1 Year
