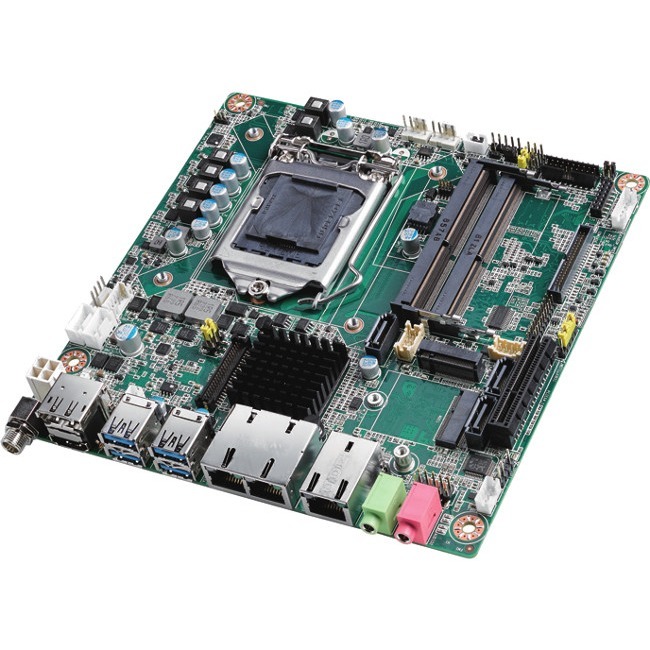

Advantech AIMB-286 Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Mini ITX

Part No. AIMB-286L-00A1E

by Advantech Co., Ltd

Advantech AIMB-286 Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Mini ITX

64 GB DDR4 SDRAM Maximum RAM - SODIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 2 x SATA Interfaces

Part No. AIMB-286L-00A1E

by Advantech Co., Ltd

$406.99
General Information
ManufacturerAdvantech Co., Ltd
Manufacturer Part NumberAIMB-286L-00A1E
Brand NameAdvantech
Product ModelAIMB-286
Product NameAIMB-286 Desktop Motherboard
Product TypeDesktop Motherboard
Processor & Chipset
Chipset ManufacturerIntel
Chipset ModelH310
Total Processor Supported1
Processor SocketSocket H4 LGA-1151
Processor Supported
  • Core i3
  • Core i5
  • Core i7
  • Celeron
  • Pentium Gold
Memory
Number of Memory Slots2
Memory Form FactorSODIMM
Maximum Memory Supported64 GB
Memory TechnologyDDR4 SDRAM
Memory Speed Supported2666 MHz
I/O Controller
Controller TypeSerial ATA/600
Video
Onboard VideoCPU Dependent Video
Network & Communication
Gigabit EthernetYes
Interfaces/Ports
Total Number of USB Ports4
Number of USB 3.0 Ports4
HDMIYes
DisplayPortYes
Number of Network (RJ-45) Ports1
Onboard Interfaces
Number of SATA Interfaces2
Number of M.2 Interfaces2
Physical Characteristics
Form FactorMini ITX
Width6.69" (169.93 mm)
Depth6.69" (169.93 mm)
Miscellaneous
Package Contents
  • AIMB-286 Desktop Motherboard
  • 1 x SATA HDD Cable
  • 1 x SATA Power Cable (1 port, 25cm)
  • 1 x 1-to-2 Serial Port Cable, 22cm
  • 1 x I/O Port Bracket
  • 1 x 1-to-4 Serial Port Cable, 35cm
  • 1 x Startup Manual
  • 1 x ATX 2x10P to 1x3P-2.0 25cm Cable
Country of OriginChina
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
connector cables (3)

Part No. 1701200220

COM RS-232 Cable 2*10P-2.0/D-SUB 9P (M)*2 22CM

ADVANTECH F CABLE 2X10P-2.0/D-SUB 9P(M)X2 22CM

Part No. 1700023082-11

ATX 2*10P to 1*3P-2.0 25cm cable (AIMB-276G2-01A1E)

ADVANTECH A CABLE 2X10P-4.2/1X3P-2.0 15CM

Part No. 1700018785

SATA 35cm power cable

ADVANTECH M CABLE SATA 15P/1X4P-2.5 35CM FOR...

miscellaneous devices (2)

Part No. 1700029428-01

1700029428-01 USB cable (2 ports), 25cm

ADVANTECH M CABLE USB-A 4P(F)X2/2X4P-2.0 25CM

Part No. 1700029538-01

1700029538-01 COM cable (4 ports), 35cm

ADVANTECH F CABLE D-SUB 9P(M)X4/IDE#2 40P-1.27...

skins (1)

Part No. 1700003194

Advantech (1700003194) Skins

ADVANTECH M CABLE SATA 7P/SATA 7P 60CM 180/180
