Kramer 2-Channel Dante Decoder & PoE Acceptor

Part No. FC-101NET

by Kramer Electronics LTD

Kramer 2-Channel Dante Decoder & PoE Acceptor

Functions: Video Decoding - RJ-45 - Network (RJ-45) - Audio Line Out

Part No. FC-101NET

by Kramer Electronics LTD

$557.99
General Information
ManufacturerKramer Electronics LTD
Manufacturer Part NumberFC-101NET
Brand NameKramer
Product ModelFC-101NET
Product Name2-Channel Dante Decoder & PoE Acceptor
Marketing Information

FC-101Net is a compact 2-channel Dante™ decoder with 2 balanced mono audio outputs. It enables connecting non-Dante devices, such as amplifiers and powered speakers, to a Dante network and enables volume control. FC-101Net is powered over Ethernet from any standard PoE providing network switch.

  • Dante Network Interface.
  • PoE Acceptor.
  • Interoperability - Supports AES67 and Dante allowing high-performance interoperability between IP-based audio networking systems.
  • Interoperability - Supports AES67 and Dante allowing high-performance interoperability between IP-based audio networking systems.

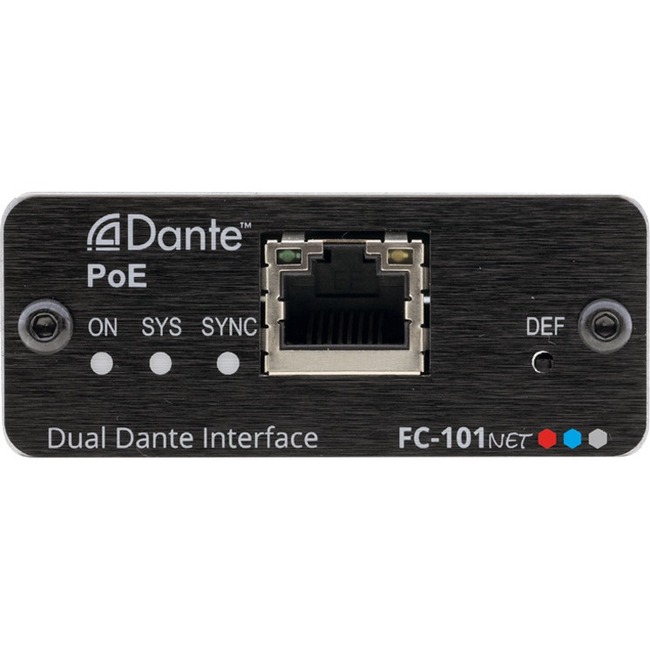

  • Input - 2 Dante channels on an RJ-45 connector.

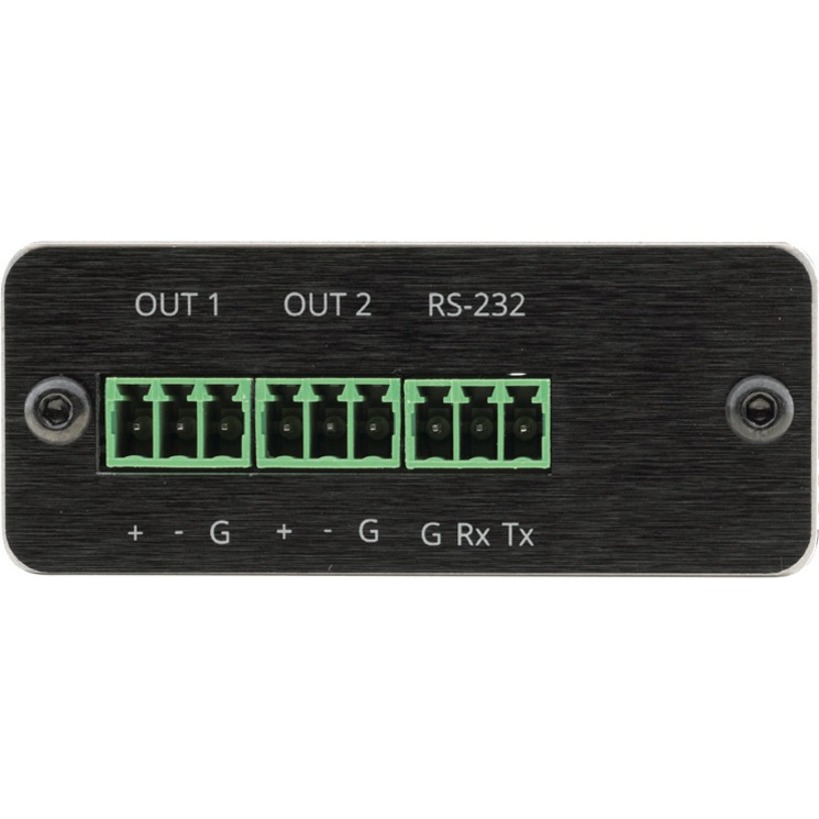

  • Outputs - 2 balanced mono audio on a 3-pin terminal blocks.
  • Output Volume Control.
  • Versatile Control - Via the Dante IP control matrix and Kramer Protocol 3000 via RS-232 connection.
  • Professional, Studio Grade Signal Conversion Technology - Includes the latest generation 32-bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
Product TypeVideo Decoder
Technical Information
FunctionsVideo Decoding
Interfaces/Ports
Host InterfaceRJ-45
Audio Line OutYes
Network (RJ-45)Yes
Physical Characteristics
Height0.96" (24.40 mm)
Width2.45" (62.20 mm)
Depth2.04" (51.80 mm)
Weight (Approximate)100 g
Miscellaneous
Package Contents
  • 2-Channel Dante Decoder & PoE Acceptor
  • Bracket Set
  • Double-Sided Adhesive Dual Lock Tape
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC7291063084875
