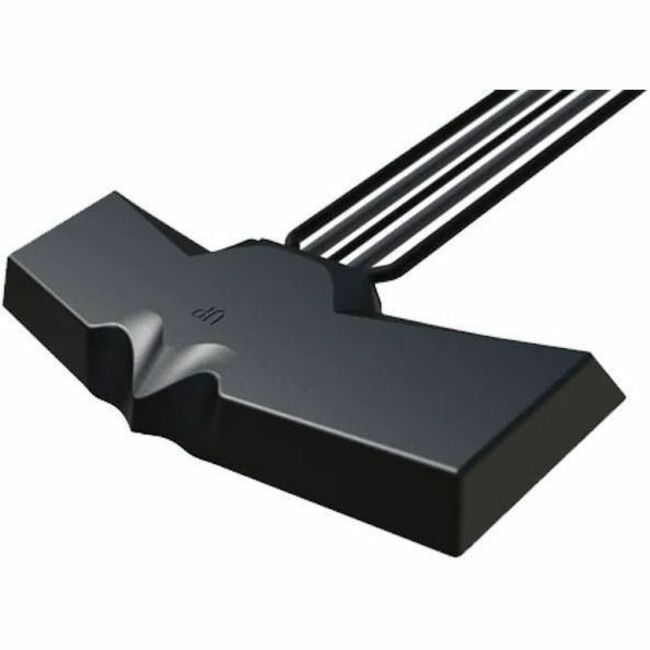

Panorama Antennas BATGM | Internal MiMo 4G/5G Antenna with optional GPS/GNSS & WiFi
Upto 9.8 ft Range - UHF, VHF - 1559 MHz to 1612 MHz, 1710 - 6000 MHz - 26 dB - 9 dBi - Cellular Network, GPS - Black - Vehicle Mount, Surface Mount - Omni-directional - SMA, RP-SMA Connector
$156.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | BATGM-7-60-S24-58 |
| Brand Name | Panorama Antennas |
| Product Series | GPS[X]D4[X]-6-60[-X] |
| Product Name | BATGM | Internal MiMo 4G/5G Antenna with optional GPS/GNSS & WiFi |
| Marketing Information | The Panorama BAT is range of internal discrete/covert 'all in one' antennas with 2×2 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2×2 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e. The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering. The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2. |
| Product Type | Antenna |
Technical Information
| Directivity | Omni-directional |
| Maximum Antenna Range | 9.8 ft |
| Frequency Band Type |
|
| Operating Frequency Range |
|
| Antenna Gain | 26 dB |
| Antenna Gain (Isotropic) | 9 dBi |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
Interfaces/Ports
| Connector Type |
|
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 0.65" (16.50 mm) |
| Width | 3.03" (77 mm) |
| Form Factor |
|
Miscellaneous
| Application/Usage |
|
| Condition | No |
