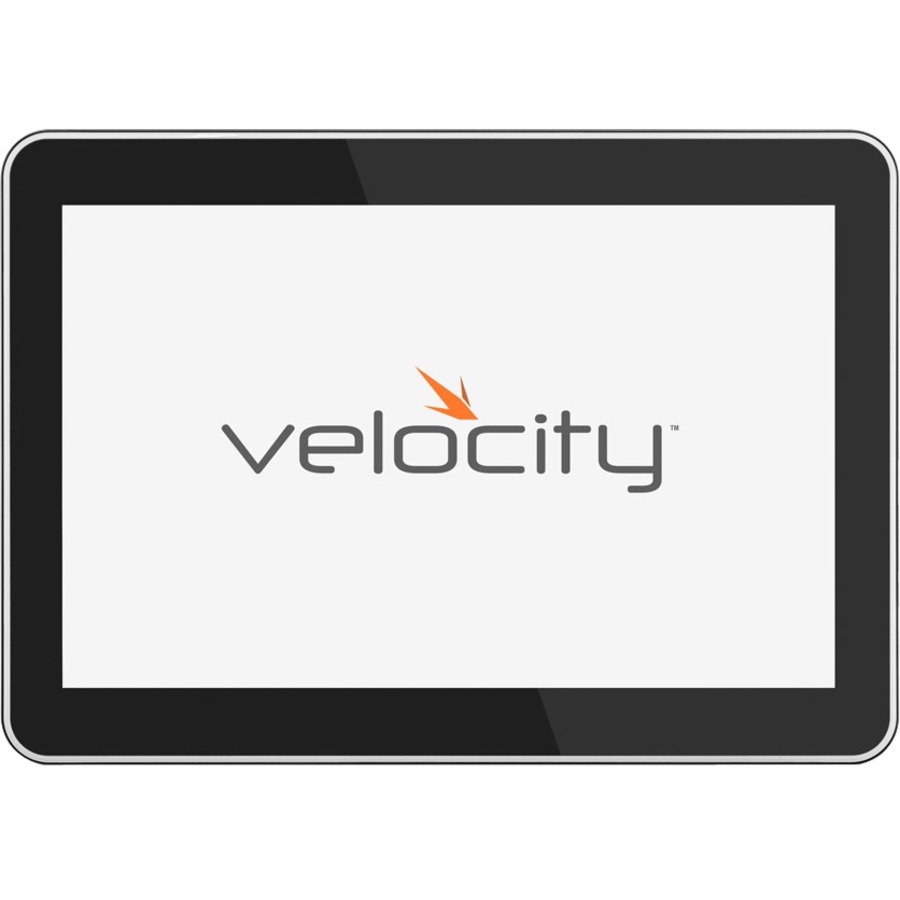

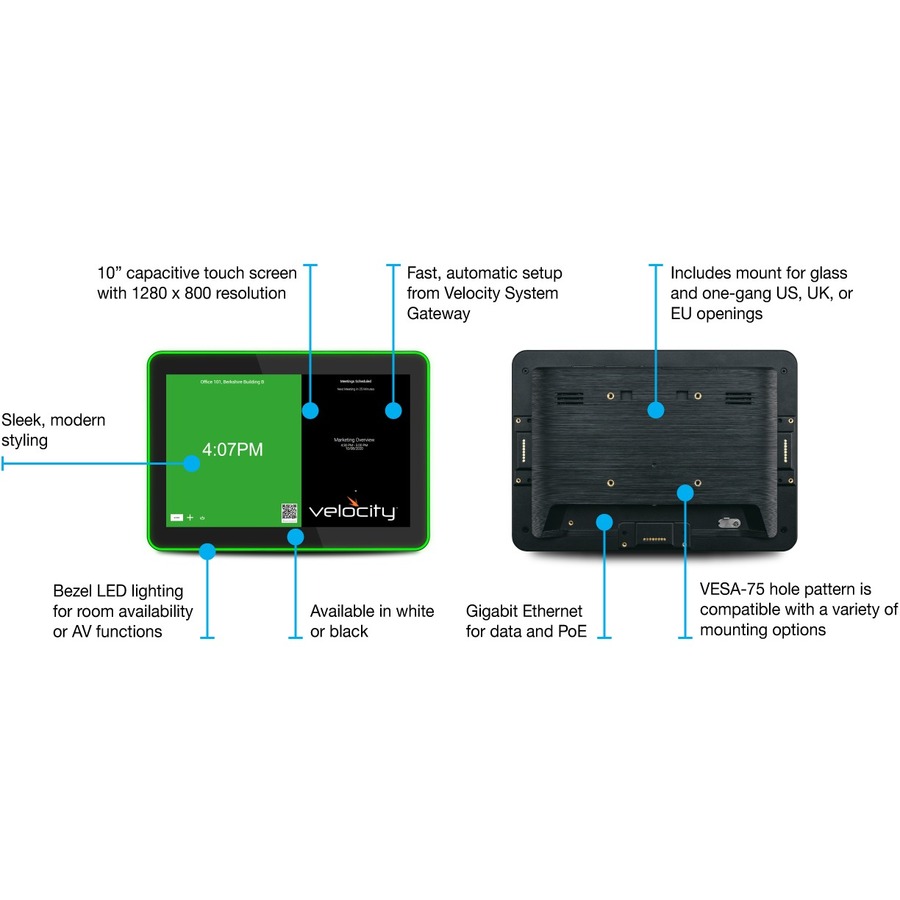

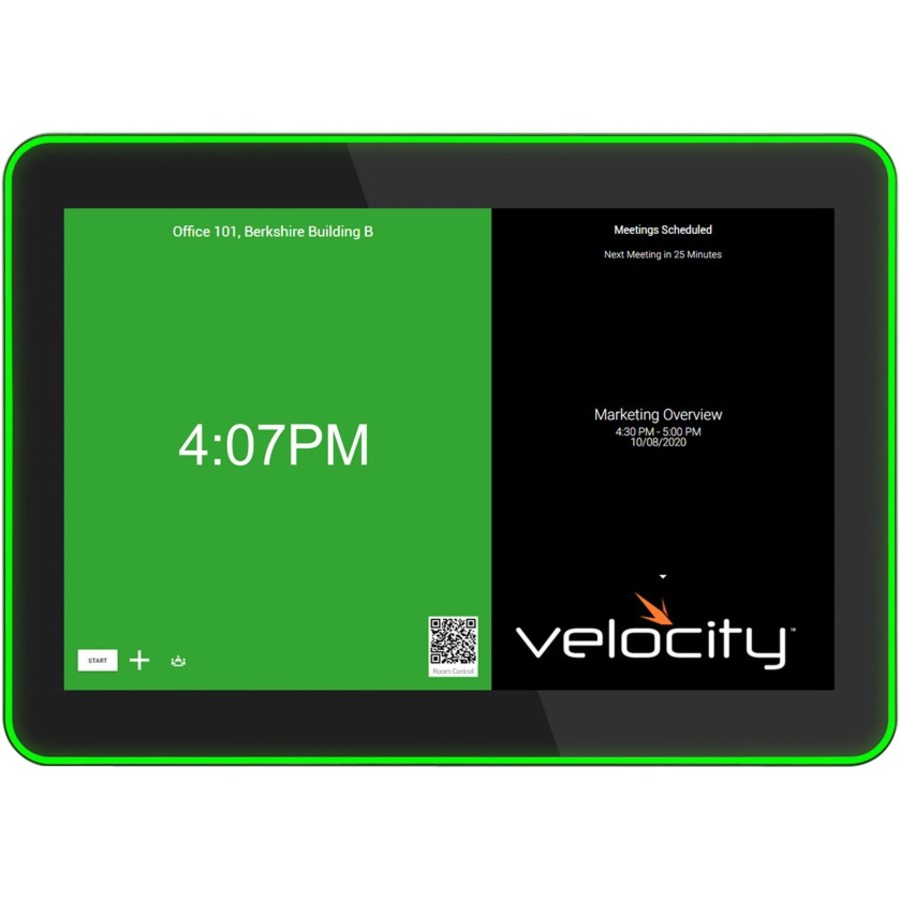

The Atlona AT-VTP-1000VL is a Velocity System 10" touch panel with integrated surround LED lighting. It features contemporary, refined styling with 1280×800 native resolution, and a capacitive glass surface that supports multi-touch. The large 10" touch panel provides additional space for more complex user control of video walls, high density matrix switchers, audio DSP's, or other applications that have greater control function requirements. Bright LED lighting surrounding the edge of the panel is ideal for providing a visual representation of room status in scheduling applications or for adding emphasis to AV control functions. The panel ships with a dual-purpose wall or glass mount kit, and its standard VESA 75 pattern provides compatibly with a wide variety of other options. The optional AT-VTP-VTM tabletop mounting kit is available for placement on a meeting table or lectern. The VTP-1000VL features Power over Ethernet (PoE), enabling a single network connection for data and power. Setting up the touch panel is easy, with room scheduling and AV control GUIs automatically uploaded from the Velocity System hardware or software server gateway during system configuration.

Applications

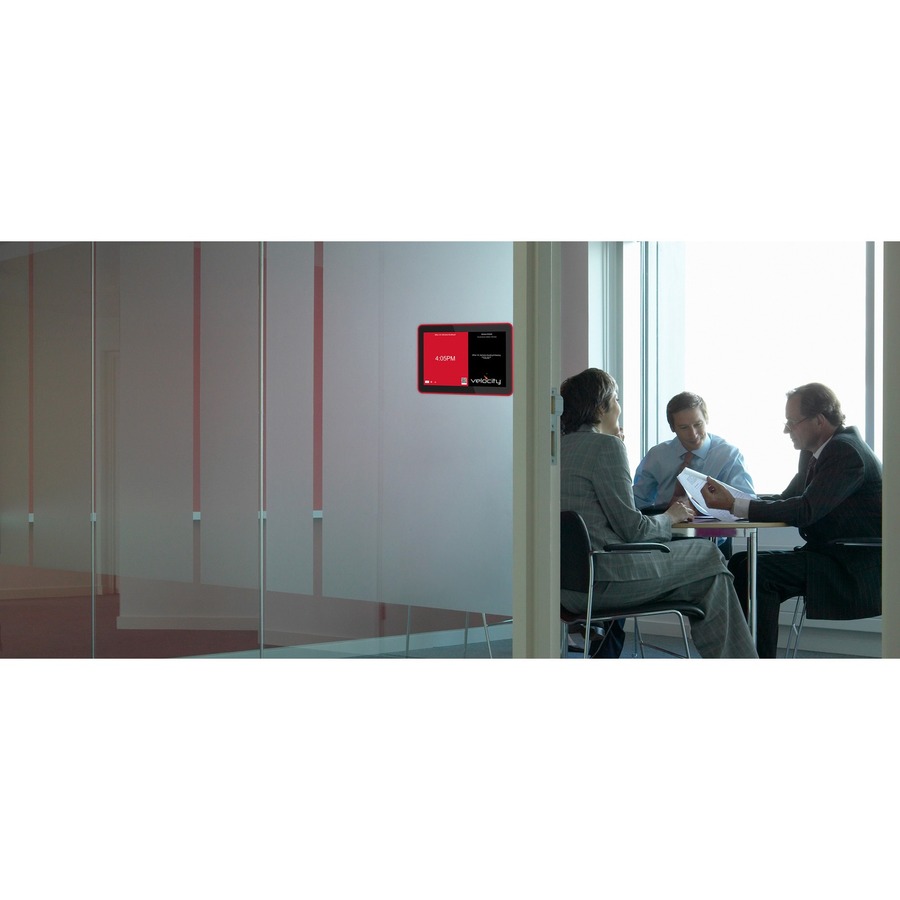

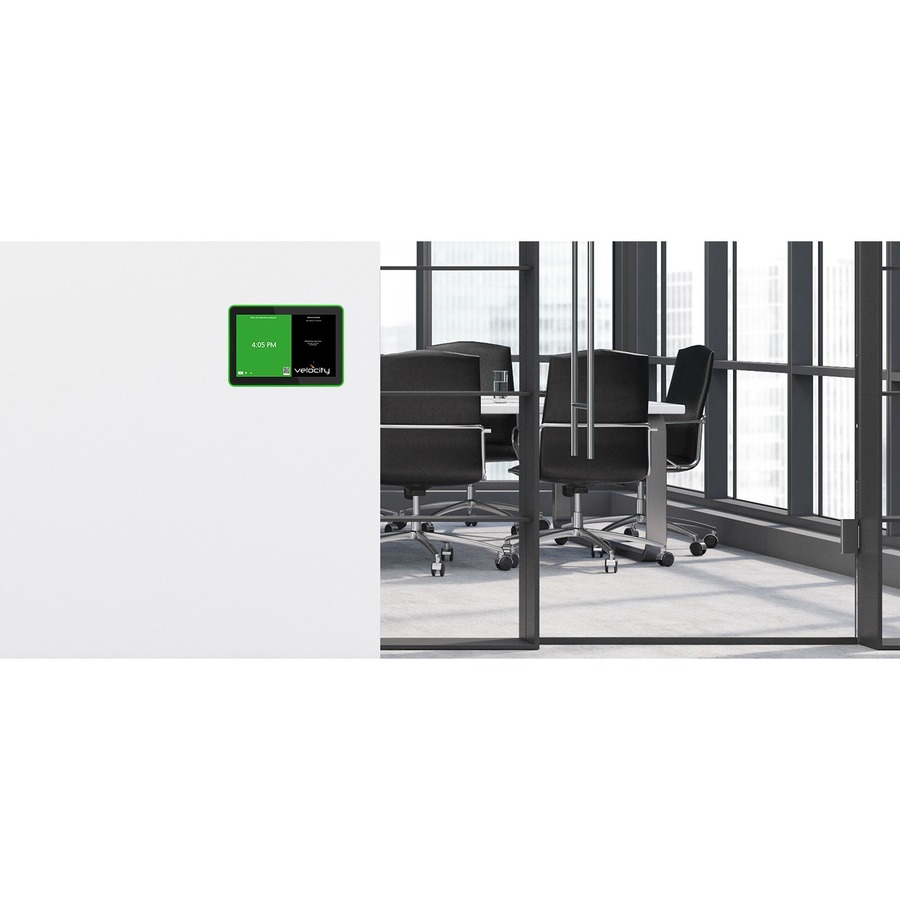

• Scheduling - Ideal for lobbies, hallways, or outside of any meeting space that requires a quick and easy visual means of displaying room availability.
• AV Control - Great for large meeting rooms, board rooms, lecture hall, or video wall locations where more complex control functionality is required

Display

• Panel: 5 point touch projected capacitive
• Resolution: 1280 x 800
• Aspect Ratio: 16:10 wide
• Contrast Ratio: 800:1
• Viewing Angle: H 160o / V 160o
• Viewing Area: 10.1" LCD
• Brightness: 500 cd/m2

Mount

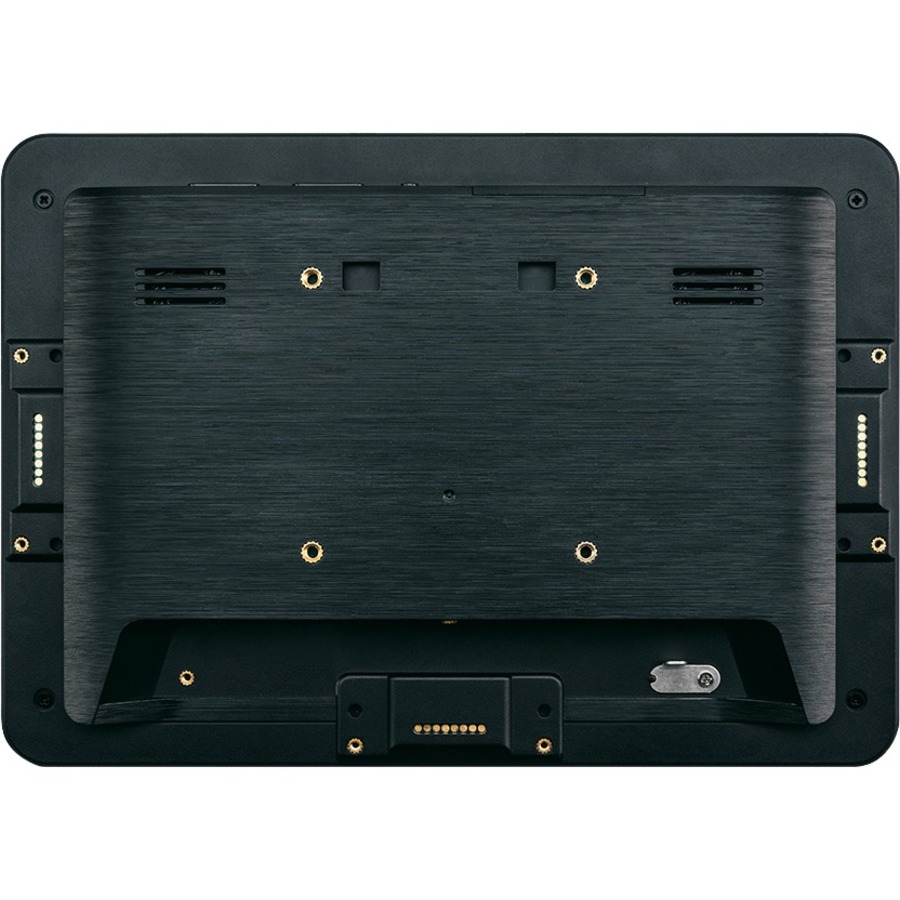

• Standard: VESA 75
• Type: Wall and glass

Audio

• Speaker: 2 x 2 W

Ethernet

• LAN: 1 x RJ45, 10/100/1000Mbps

Power

• PoE: 802.3af/at compliant

• Meeting Room
• Boardroom
• Lecture Hall
