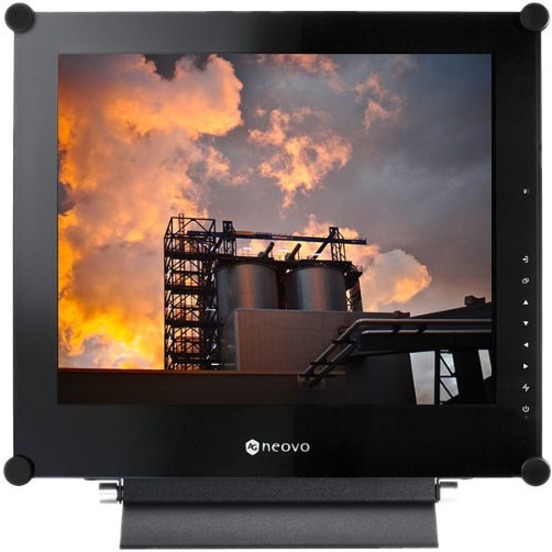

AG Neovo SX-17G 17" Class SXGA LCD Monitor

Part No. SX-17G

by AG Neovo Technology Corporation

AG Neovo SX-17G 17" Class SXGA LCD Monitor

17" Viewable - Twisted nematic (TN) - LED Backlight - 1280 x 1024 - 16.7 Million Colors - 250 cd/m² - 3 ms - Speakers - DVI - HDMI - VGA - DisplayPort

Part No. SX-17G

by AG Neovo Technology Corporation

$757.99
General Information
ManufacturerAG Neovo Technology Corporation
Manufacturer Part NumberSX-17G
Brand NameAG Neovo
Product SeriesSX
Product ModelSX-17G
Product NameSX-17G LCD Monitor
Marketing Information

Ideal for legacy and modern surveillance applications, the SX-Series is equipped with analogue and digital connectivity as well as Composite output for video looping. Built to last and perform in 24/7 operations, it features AG Neovo's Anti-Burn-in™ technology, preventing image ghosting and ensuring professionals view the present, not the past. Coupled with NeoV™ Optical Glass and metal casing, the display is shielded from incidental damage and impact to withstand the most demanding environments. Highly versatile and compatible, the SX-Series is the optimal display solution for seamless video surveillance transition.

Industry-leading Reliability

The SX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo's Anti-Burn-in™ technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoV™ Optical Glass not only protect the SX-Series from damage but also keep maintenance easy.

Optimised for Surveillance and Security

Built with cutting-edge super-resolution technology, the SX-Series can upscale images at a higher and more detailed resolution for better clearness. Besides, geared specifically for a surveillance control room, a user-friendly CCTV mode is pre-configured to maximise image clarity in the scenario of low light surveillance footage at night.

Highly Versatile and Compatible

The SX-Series supports multiple video input sources, from legacy video cameras to the latest HDMI and DisplayPort equipment. Its lockable Composite input and loop through Composite output make it easy to connect to other gear without the need for a splitter.

Product TypeLCD Monitor
Technical Information
Number of Screens1
Screen Size Class17"
Viewable Screen Size17"
Screen ModeSXGA
Panel TechnologyTwisted nematic (TN)
Response Time3 ms
Pixel Pitch0.26400 mm x 0.26400 mm
Horizontal Viewing Angle170°
Vertical Viewing Angle160°
Mount Type
  • Desk Mountable
  • Wall Mountable
  • Ceiling Mountable
Backlight TechnologyLED
Features
  • Security Lock
  • Anti-Burn-in Technology
  • 2D Comb Filter
  • Noise Reduction
  • Deinterlace Motion
Horizontal Frequency24 kHz to 83 kHz
Vertical Frequency50 Hz to 75 Hz
Stand AdjustmentsTilt
Video
Maximum Resolution1280 x 1024
Color Supported16.7 Million Colors
Native Contrast Ratio1,000:1
Dynamic Contrast Ratio20,000,000:1
Brightness250 cd/m²
Audio
Number of Speakers2
SpeakersYes
Interfaces/Ports
DVIYes
HDMIYes
USBYes
VGAYes
DisplayPortYes
Mini DisplayPortNo
Number of HDMI Inputs1
Number of USB Ports1
Number of USB 2.0 Ports1
Number of DisplayPorts1
Power Description
Operating Power Consumption17 W
Physical Characteristics
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Height14.25" (361.90 mm)
Width16.12" (409.40 mm)
Depth2.54" (64.50 mm)
Height with Stand15.68" (398.20 mm)
Width with Stand16.12" (409.40 mm)
Depth with Stand6.89" (175 mm)
Weight (Approximate)11.68 lb (5300 g)
Weight with Stand (Approximate)13.45 lb (6100 g)
