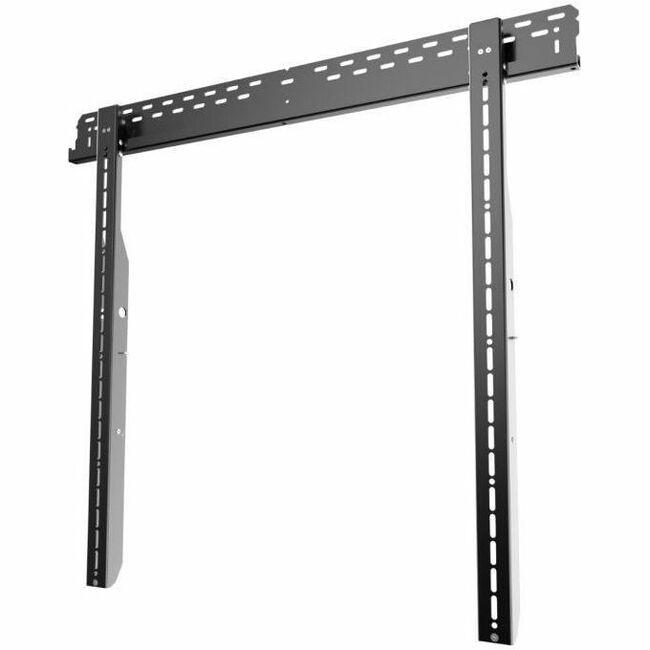

The low profile wall mount consists of a 39.3" (1m) long wall plate and two VESA brackets with universal mounting pattern to 900x800. This wall mount is designed for very large and heavy displays weighing up to 364lb (165kg), often for digital signage applications.

Post-installation horizontal adjustment, screen levelling as well levelling all assist in making the installation process quicker and easier.

• Low profile to wall
• 1.69" , or 2.37" with spacer
• 43mm, or 60mm with spacer
• Simple hook-on installation system

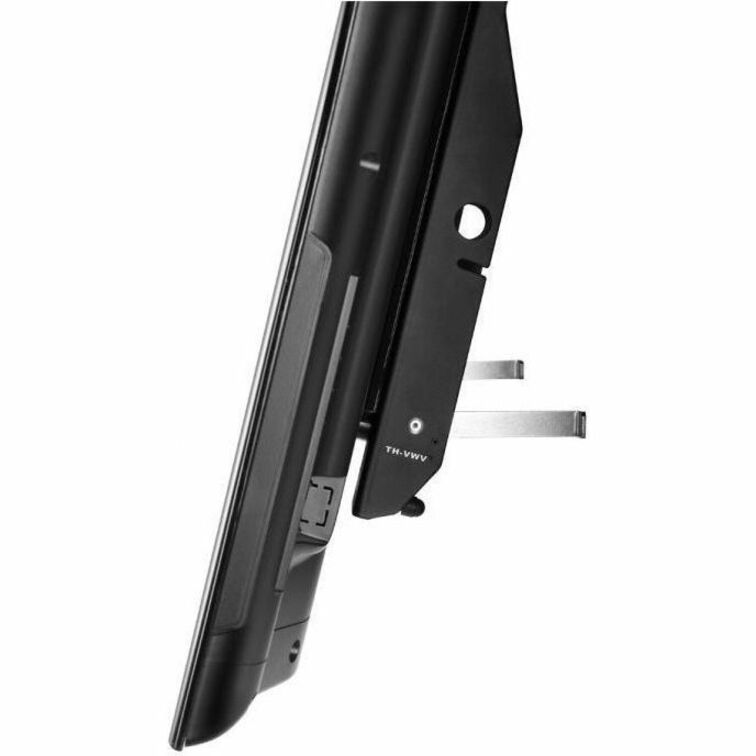

• Struts to wedge installed display angled out from wall;
• Safe technician access
• Easier cabling & service
• VESA & universal mounting pattern
• 200 to 900 wide
• 200 to 800 high

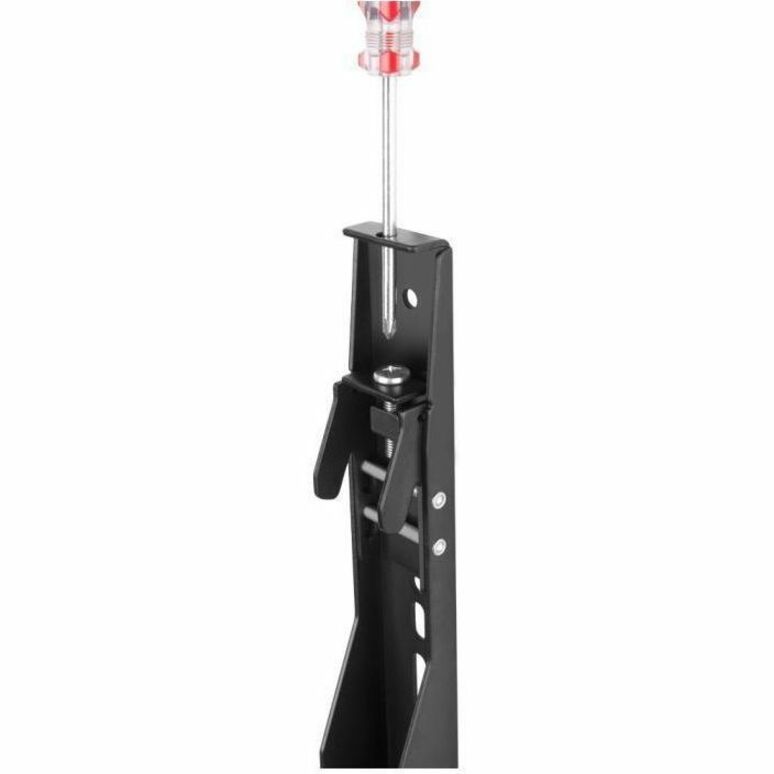

• Height adjustment & levelling after display installation

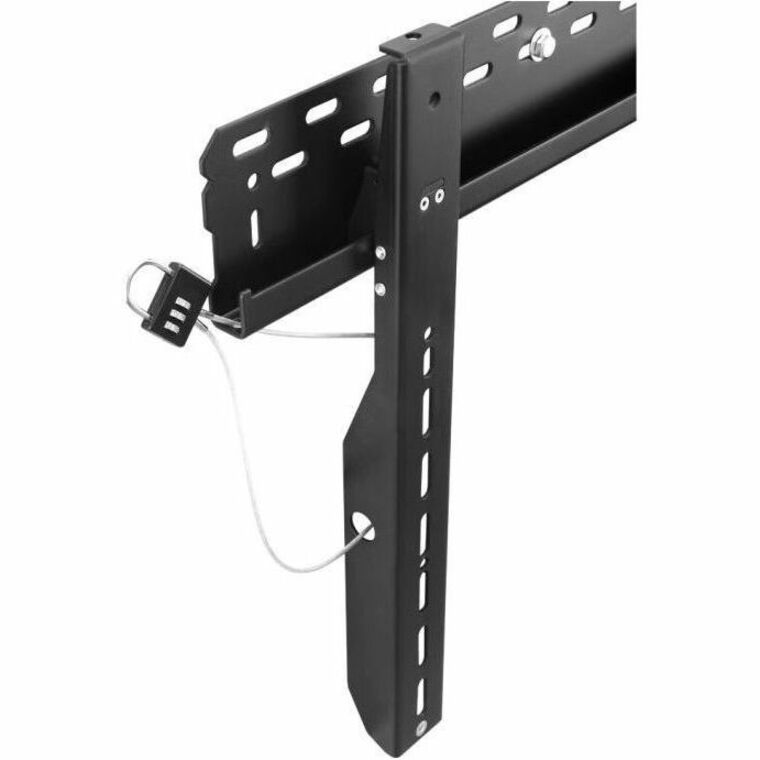

• Can accommodate security padlock & wire
• Steel construction
• 10 Year warranty

Solution includes:

1 xTH-VWP-100mounting rail

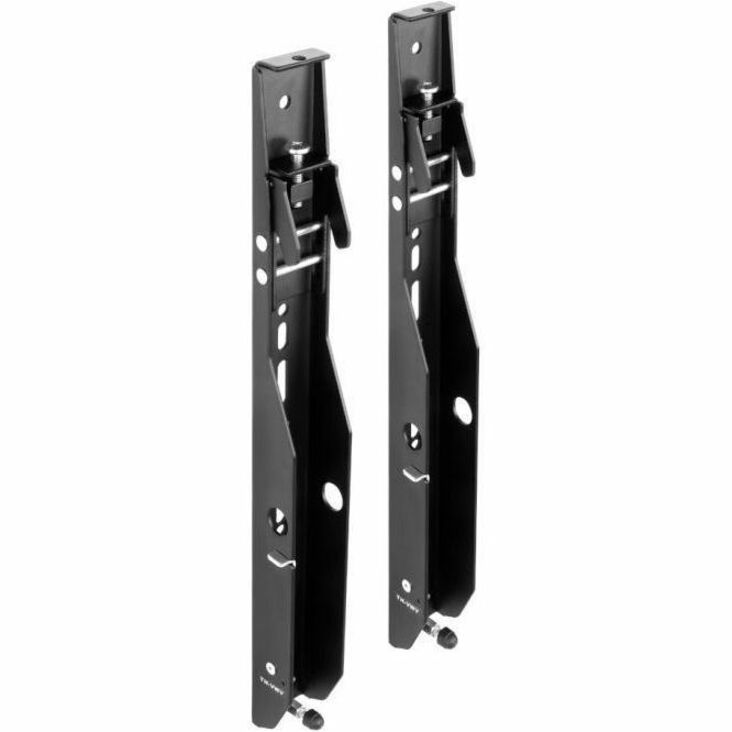

1 xTH-VWVPwall brackets (set of two)

Interested in multi-display wall mounts?Learn moreabout our Universal Modular Video Wall Mounting System.

• Display
• Digital Signage Display

• Horizontal Adjustment
• Screen Level Adjustment
• Padlock

• 200 x 200
• 200 x 300
• 200 x 400
• 200 x 600
• 200 x 800
• 300 x 300
• 400 x 200
• 400 x 300
• 400 x 400
• 400 x 600
• 400 x 800
• 600 x 200
• 600 x 400
• 800 x 200
• 800 x 400
• 800 x 600
• 900 x 600

• Steel
• Aluminum

• 1 x TH-VWP-100 Mounting Rail
• 2 x TH-VWVP Wall Brackets
