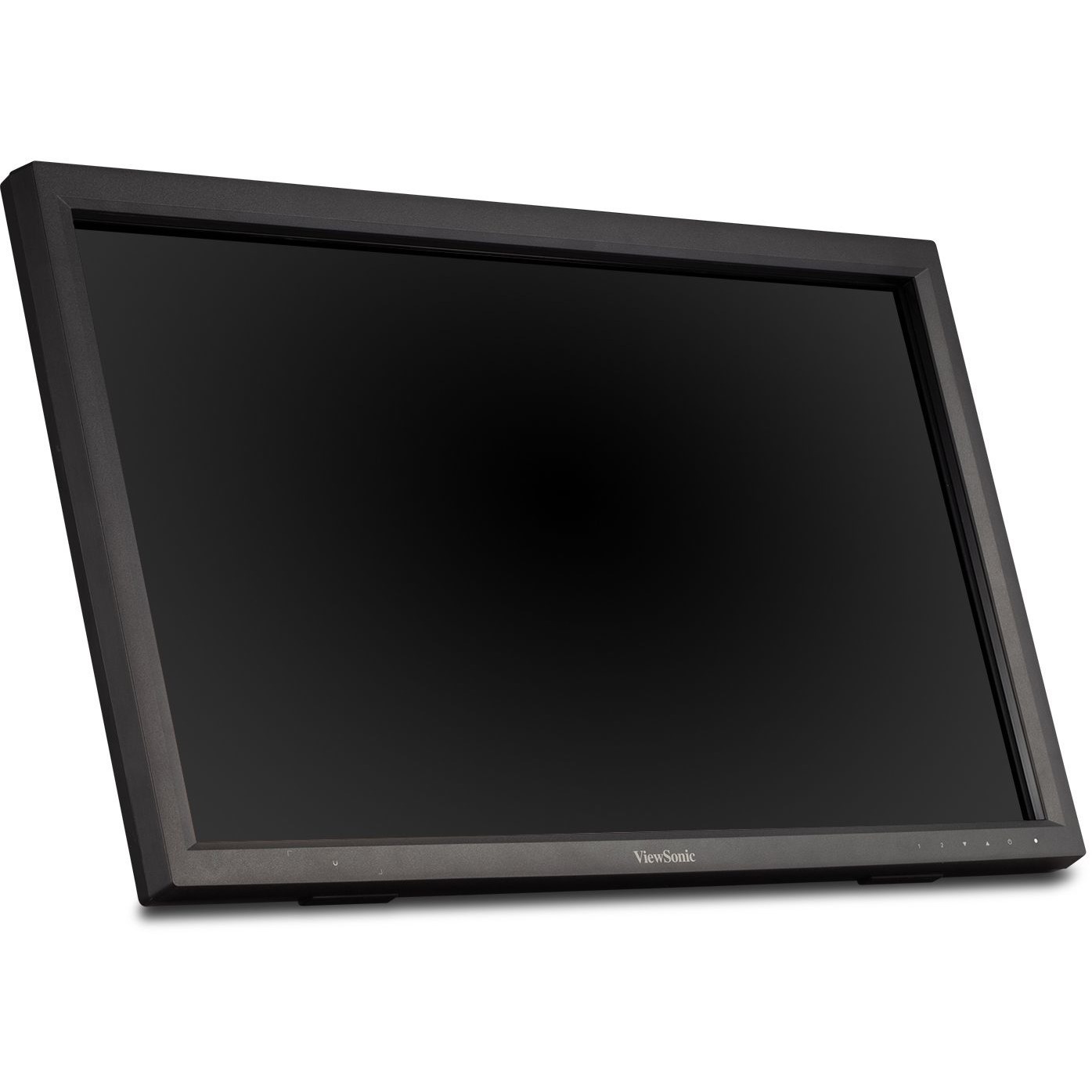

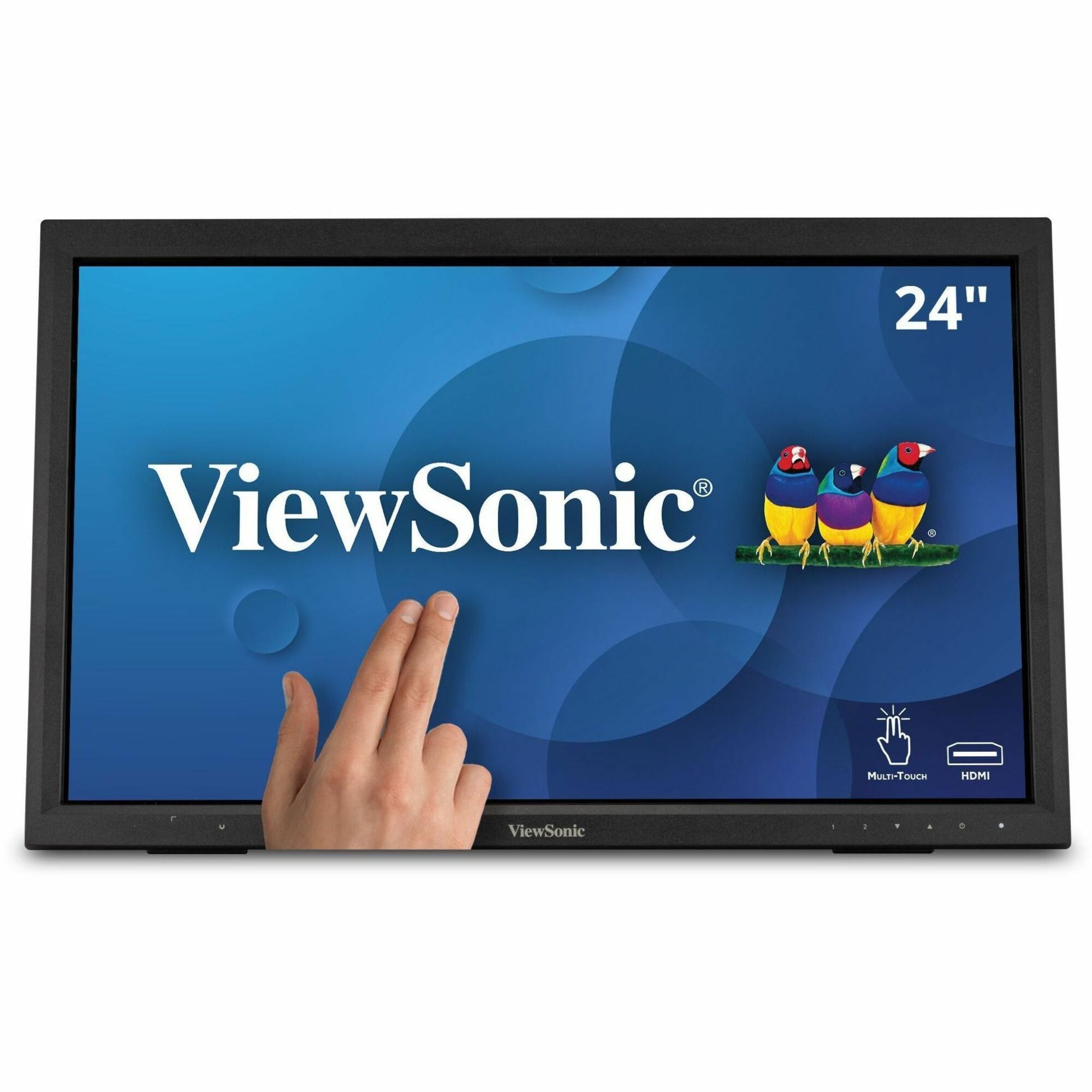

ViewSonic TD2423d 24" Class LCD Touchscreen Monitor - 16:9 - 7 ms

24" Viewable - Infrared - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - MVA technology - 16.7 Million Colors - 250 cd/m² - LED Backlight - Speakers - HDMI - USB - VGA - DisplayPort - 1 x HDMI In - Black - Electronic Product Environmental Assessment Tool (EPEAT) - 3 Year - USB Hub

Part No. TD2423D

by ViewSonic Corporation

$402.99

General Information

Manufacturer	ViewSonic Corporation
Manufacturer Part Number	TD2423D
Brand Name	ViewSonic
Product Model	TD2423d
Product Name	TD2423d - 24" Display, MVA Panel, 1920 x 1080 Resolution
Marketing Information	Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic® TD2423d is a 24" touch display with 10-point IR touch technology that lets users pinch, zoom and swipe for fast and intuitive navigation. With Full HD 1920x1080 resolution, 3000:1 static contrast ratio and 7H screen hardness, the TD2423d delivers sharp and bright images combined with durability for high-traffic applications. Flexible connectivity options include HDMI, DisplayPort, VGA, DVI, and a USB hub to connect your peripherals and accessories. VESA-mount compatibility offers additional convenience and flexibility for 3rd party stands and mounts. What's more, ViewSonic's exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience. Combine this display with ViewSonic's Android and Windows media players for a perfect kiosk solution.
Product Type	LCD Touchscreen Monitor

Technical Information

Screen Size Class	24"
Viewable Screen Size	24"
Screen Mode	Full HD
Screen Surface	Anti-scratch
Panel Technology	MVA technology
Response Time	7 ms
Response Time Details	7 ms GTG
Aspect Ratio	16:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Mount Type	Wall Mountable
Backlight Technology	LED
Features	Cable Lock Slot Touch Controls Dispersive IR Touch Technology Antimicrobial Eco Mode Auto ImageSet On-screen Display (OSD) Flicker-free 7H Surface Hardness
Horizontal Frequency	24 kHz to 82 kHz
Vertical Frequency	50 Hz to 75 Hz

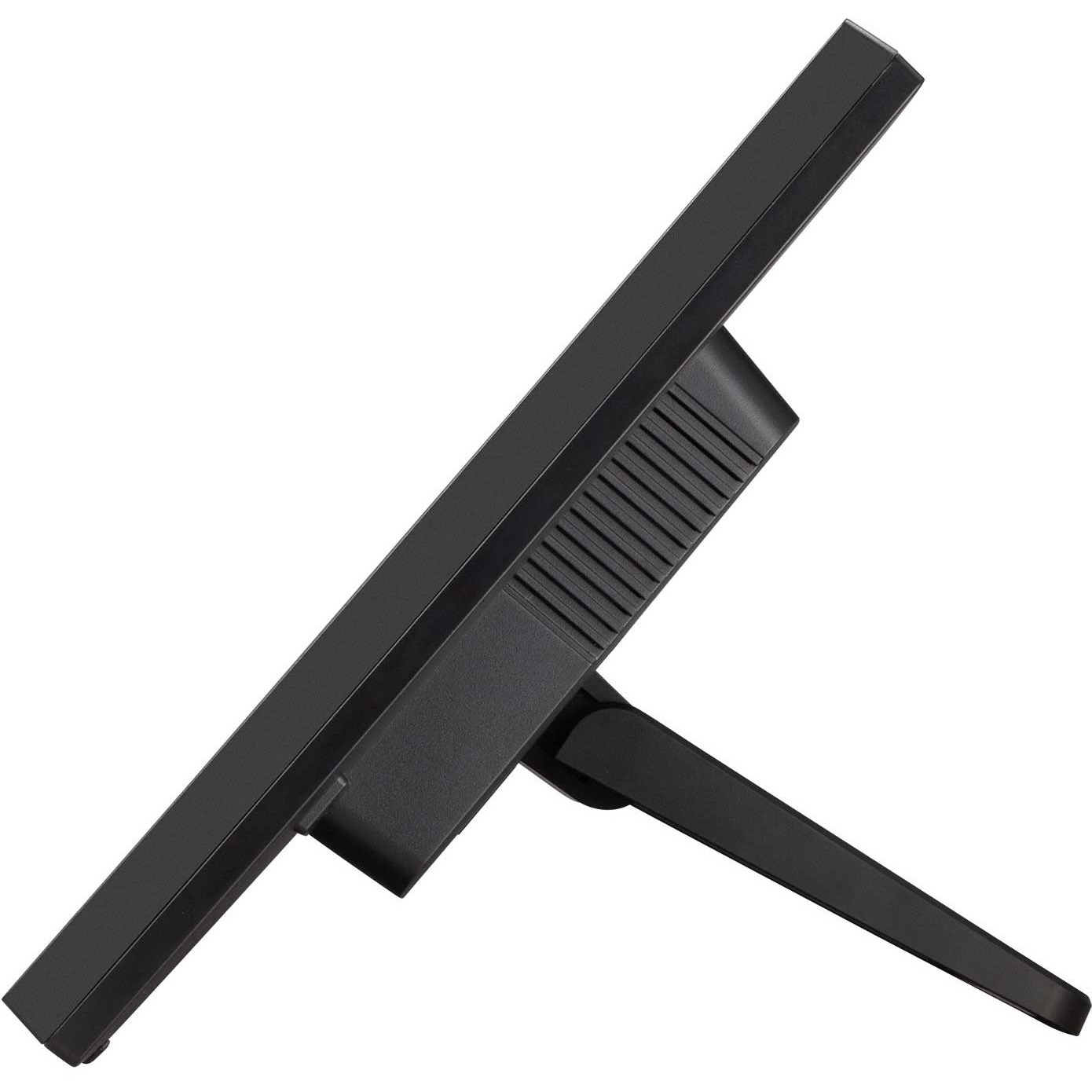

Stand Adjustments	Tilt
Curved Screen	No

Video

Maximum Resolution	1920 x 1080
Standard Refresh Rate	75 Hz
Color Supported	16.7 Million Colors
Native Contrast Ratio	3,000:1
Brightness	250 cd/m²

Audio

Speakers	Yes

Touchscreen Information

Touchscreen Type	Infrared
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10

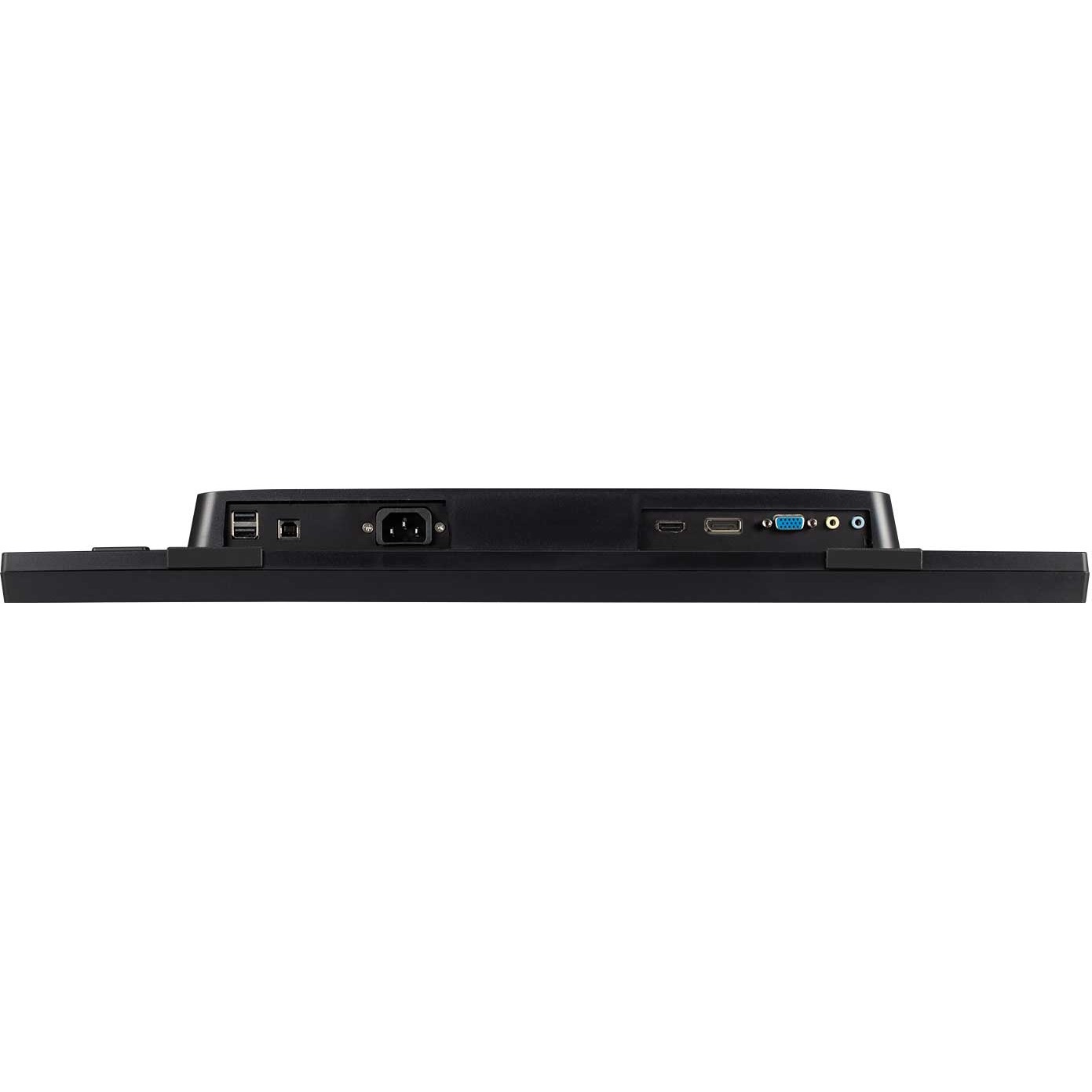

Interfaces/Ports

HDMI	Yes
USB	Yes
VGA	Yes
DisplayPort	Yes
Number of HDMI Inputs	1
Number of USB Ports	3
Number of DisplayPorts	1

Built-in Devices

Built-in Devices	USB Hub

Power Description

Operating Power Consumption	21.50 W
Standby Power Consumption	500 mW

Physical Characteristics

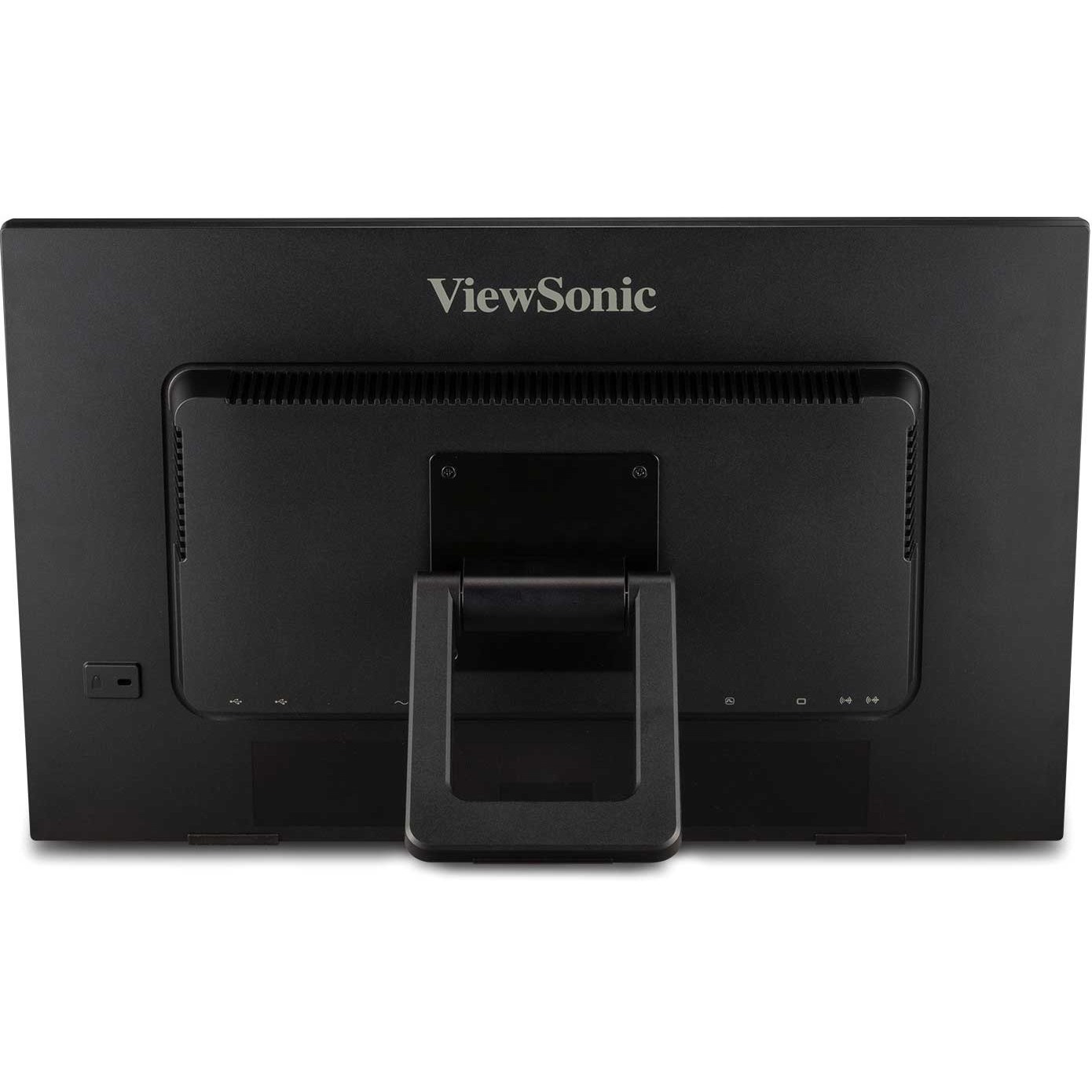

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Color Family	Black
Product Color	Black
Height	13.70" (348 mm)
Width	22.48" (571 mm)
Depth	2.40" (61 mm)
Height with Stand	13.70" (348 mm)
Width with Stand	22.48" (571 mm)
Depth with Stand	3.98" (101 mm)
Weight (Approximate)	10.30 lb (4672 g)
Weight with Stand (Approximate)	11.50 lb (5216.31 g)

Miscellaneous

Package Contents	TD2423d - 24" Display, MVA Panel, 1920 x 1080 Resolution Power Cable HDMI cable USB Type B Uplink Cable Quick Start Guide
Certifications & Standards	cTUVus
Platform Supported	Mac
Energy Star	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool (EPEAT)
Condition	No
UPC	0766907011685
