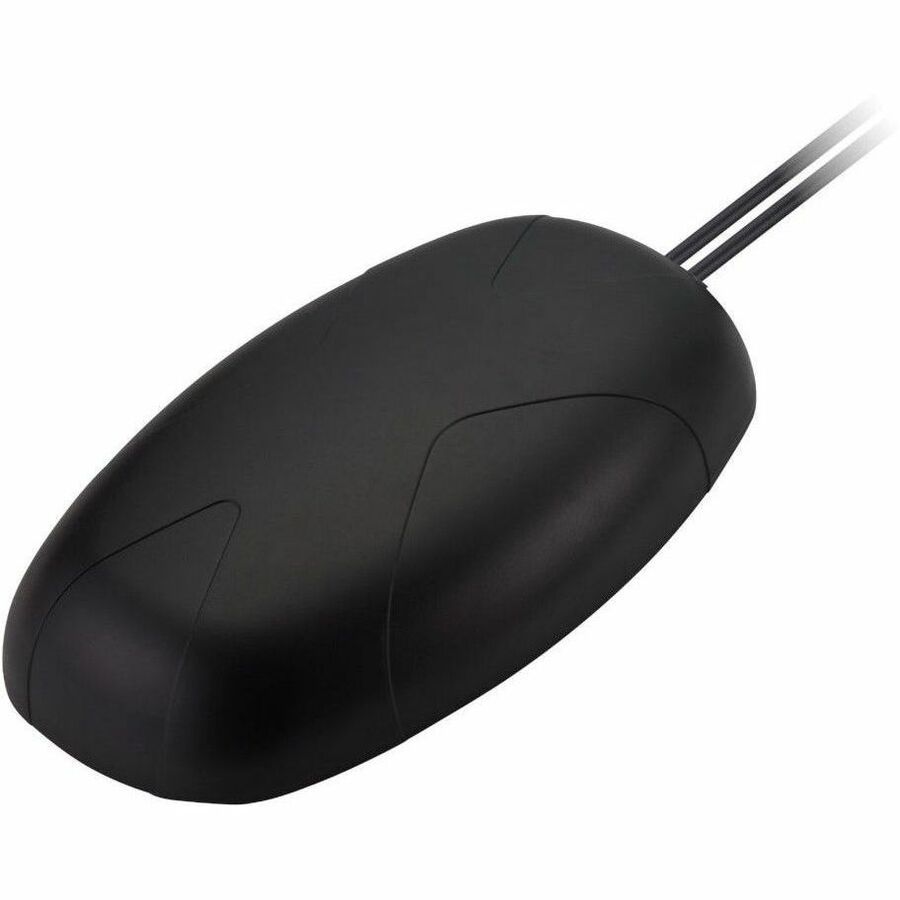

Taoglas Steedan MA351 Antenna
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Taoglas |
| Manufacturer Part Number | MA351.A.BI.001 |
| Brand Name | Taoglas |
| Product Line | Steedan |
| Product Model | MA351 |
| Product Name | Steedan MA351 Antenna |
| Marketing Information | 2-in-1 next-generation low profile magnetic mount combination antenna for vehicle, outdoor building and heavy equipment roof applications The Taoglas Steedan MA351 is a 2-in-1 next-generation low profile magnetic mount combination antenna for vehicle, outdoor building and heavy equipment roof applications. It has a fully IP65 rated waterproof robust ABS enclosure and base. This is an ideal external combination antenna solution that is used where drilling a hole through the roof of a vehicle or a metal panel is not feasible. It can be mounted on steel surfaces and its ultra-strong neodymium magnets. A soft foam cushion on the base protects the mounting surface during installation and removal. Only 52.8mm high it mounts discretely to the target application out of sight of most onlookers. This outstanding antenna delivers powerful MIMO antenna technology 5G/4G. The 3 internal antennas have superior isolation. The 5G/4G antennas also include backward compatibility to work at most worldwide 3G and 2G bands. Typical Applications:
The MA351 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput. The MA351 can also be customized for your particular wireless application and frequency band, subject to NRE and MOQ. There are 2x 3000mm low loss TGC-200 cables, terminating in SMA(M) connectors for LTE MIMO. There is a 3000mm RG-174 cable for GNSS terminating in an SMA(M) connector. All cable lengths and connector types are customizable |
| Product Type | Antenna |
| Operating Frequency Range | 617MHz To 5925MHz |
| Antenna Gain (Isotropic) | 6.9 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Connector Type | SMA |
| Height | 2.08" (52.80 mm) |
| Width | 5.68" (144.30 mm) |
| Form Factor | Magnetic Mount |
| Weight (Approximate) | 1.21 lb (550 g) |
| Application/Usage |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
