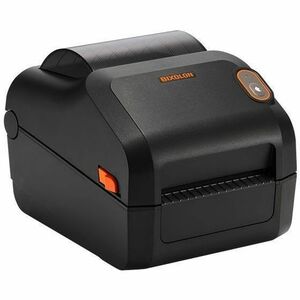

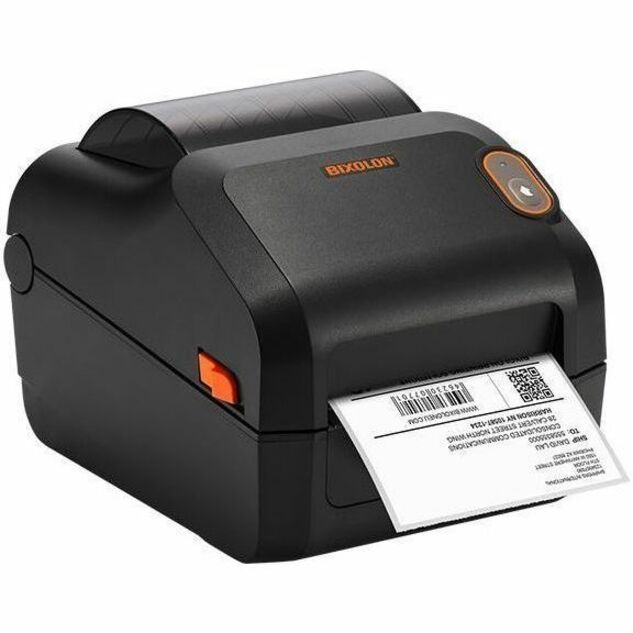

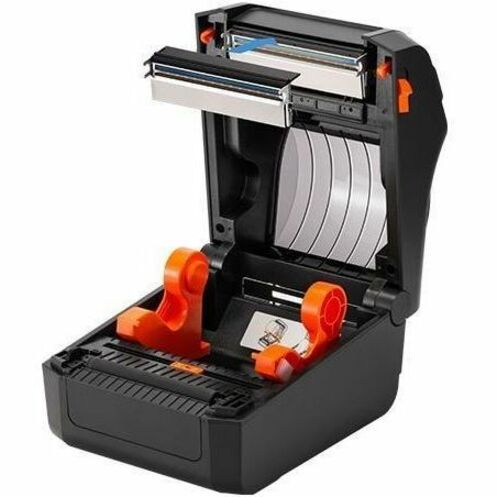

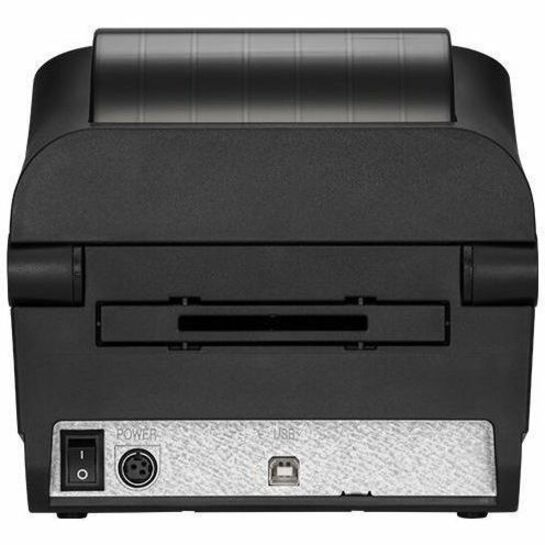

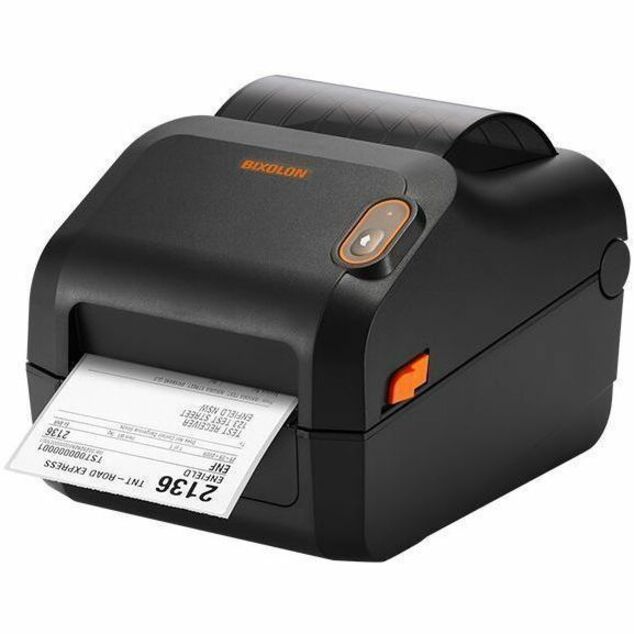

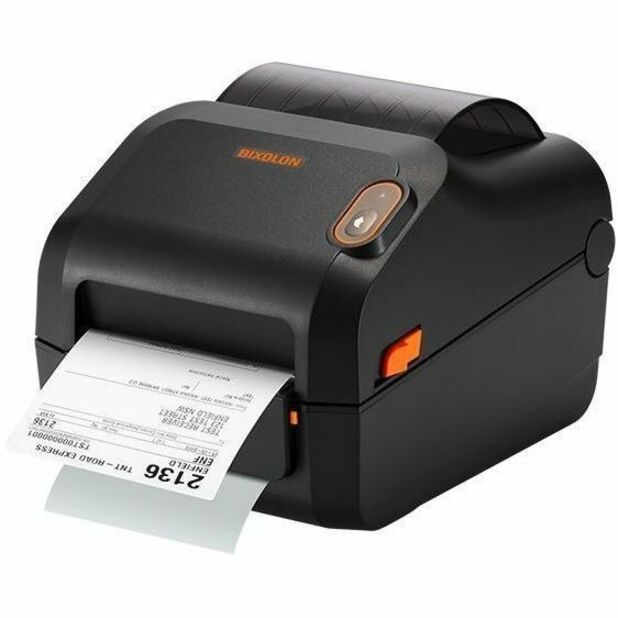

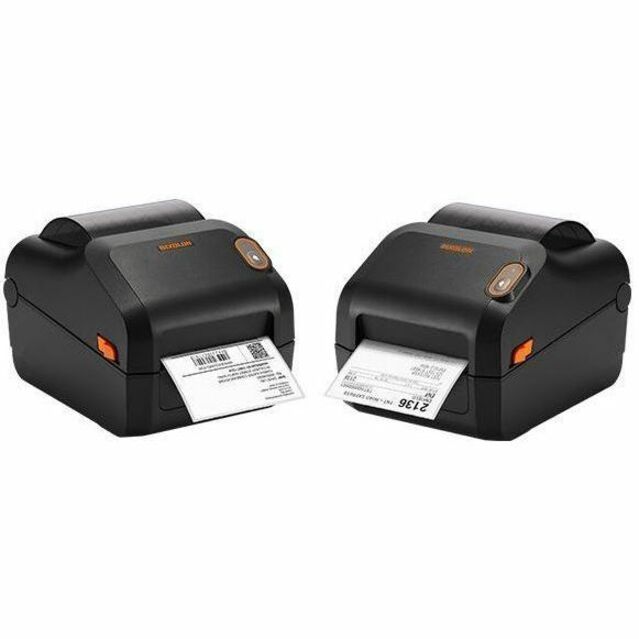

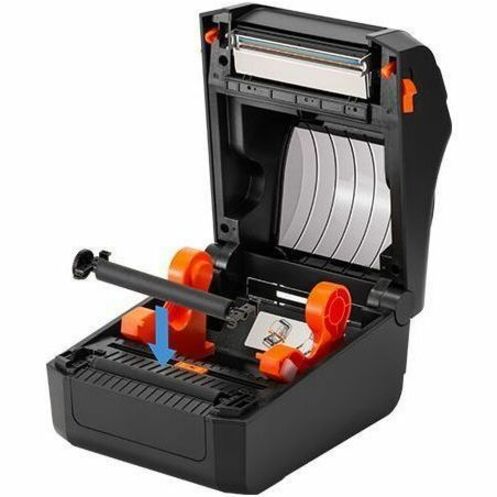

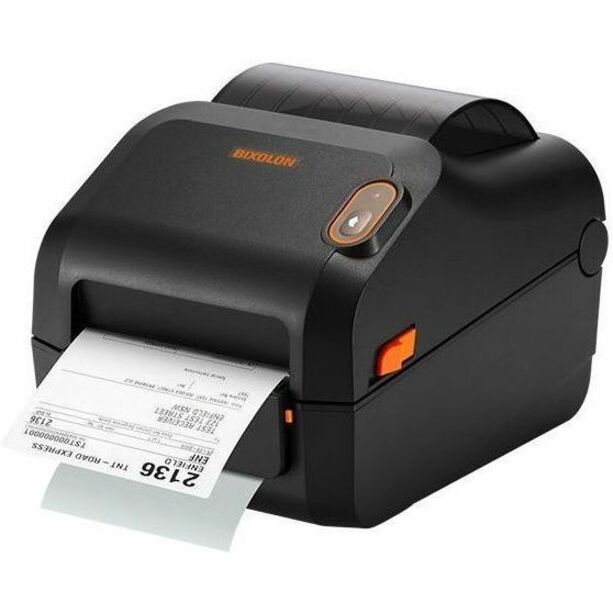

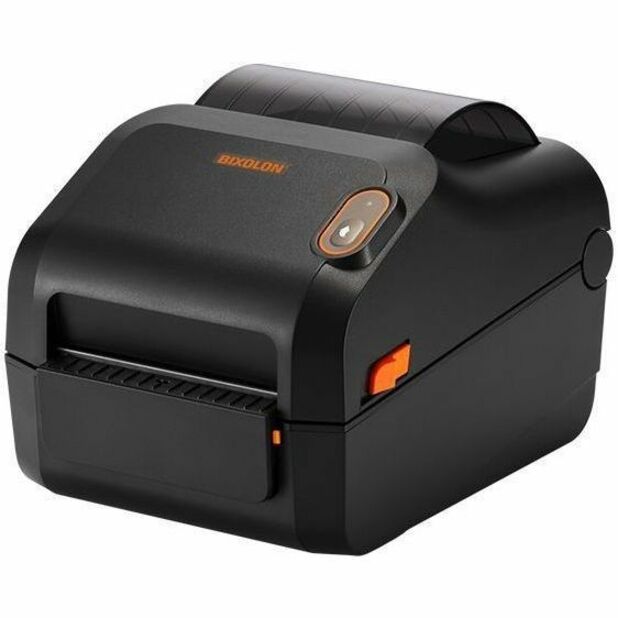

Bixolon XD3-40d Warehouse, Logistic, Manufacturing, Retail Direct Thermal Printer - Monochrome - Label Print - Ethernet - USB - Serial - Black
4" - 39.37" (1000 mm) Print Length x 4.09" (104 mm) Print Width - 5 in/s (127 mm/s) Mono - 203 dpi - 4.65" (118 mm) Label Width - BPL-E, BPL-Z, SLCS, ZPL II, EPL Emulation - For PC, Mac
$265.99
In Stock Availability
- All Locations: (37+)
- Mississuaga, ON (37+)
General Information
| Manufacturer | Bixolon America, Inc |
| Manufacturer Part Number | XD3-40dK |
| Brand Name | Bixolon |
| Product Model | XD3-40d |
| Product Name | XD3-40d 4 inch Direct Thermal Label Printer |
| Marketing Information | Basic Functions - Printing speed up to 5 ips (127 mm/sec) - Fully compatible with market-leading programming languages - Supporting stand-alone configuration mode by visual LED - Smart switch programming languages without setting the mode User-Friendly Design - Easy paper loading with adjustable paper guide and holder - Simply set up media sensor - Optional peeler - Compatible with label design software; BIXOLON's Label Artist™, Seagull's BarTender® and BarTender® UltraLite for BIXOLON All in one Plus™ Interface - Standard: USB - Optional: USB + Serial + Ethernet |
| Product Type | Direct Thermal Printer |
Technical Information
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5 in/s (127 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 39.37" (1000 mm) |
| Maximum Print Width | 4.09" (104 mm) |
| Barcode Symbology Supported |
|
| Real Time Clock | No |
| Application/Usage |
|
| Features | Compact |
| Connectivity Technology | Wired |
| Fonts Included |
|
| Print Technology | Direct Thermal |
Memory
| Standard Memory | 64 MB |
| Flash Memory | 128 MB |
Interfaces/Ports
| Serial Port | Yes |
| USB | Yes |
Network & Communication
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
Display & Graphics
| Screen Size | 4" |
Media Types & Handling
| Media Type |
|
| Media Sensor |
|
| Media Thickness | 7.9 mil (0.2 mm) |
| Maximum Roll Diameter | 5" (127 mm) |
| Maximum Label Width | 4.65" (118 mm) |
Fonts & Emulation
| Language Emulation |
|
Power Description
| Power Source | AC Supply |
| Frequency |
|
Environmental Conditions
| Operating Temperature | 32°F (0°C) - 104°F (40°C) |
| Operating Relative Humidity | 10% - 80% |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Storage Relative Humidity | 10% - 90% |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 6.61" (168 mm) |
| Width | 7.13" (181 mm) |
| Depth | 8.74" (222 mm) |
| Weight (Approximate) | 3.75 lb (1700 g) |
Miscellaneous
| Platform Supported |
|
| Energy Star | Yes |
| COO | KR |
| Condition | No |
