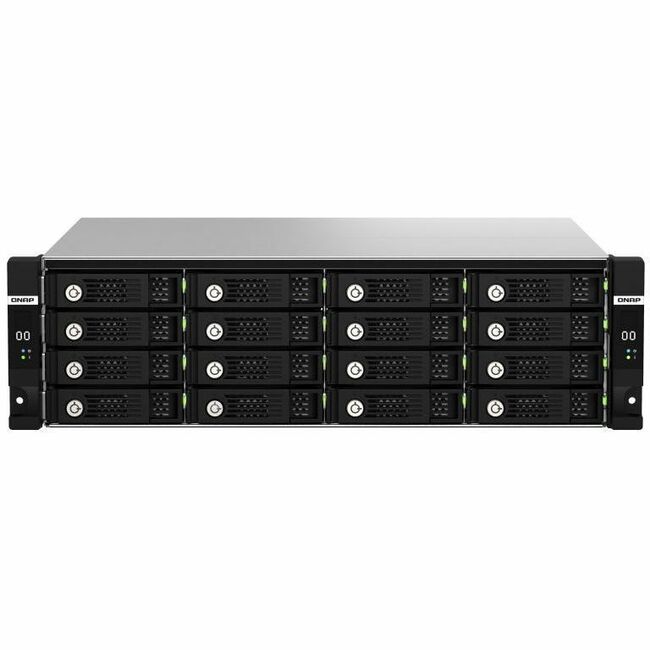

QNAP TL-R1620SDC Drive Enclosure 12Gb/s SAS, SATA/600 - Mini-SAS HD Host Interface - 3U Rack-mountable
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TL-R1620SDC-US |
| Brand Name | QNAP |
| Product Model | TL-R1620SDC |
| Product Name | TL-R1620SDC Drive Enclosure |
| Marketing Information | TL-R1620Sdc | Dual-controller SAS 12Gb/s storage expansion for enterprises Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom® SAS DataBolt™ bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more.
Failure-resistant with a dual-controller, dual-path design Connect the TL-R1620Sdc to a dual-controller QNAP NAS and create a redundant cross loop configuration that provides expansion units with redundant paths to the base NAS and protection between JBOD connections. If one or more paths to the TL-R1620Sdc disconnect, other expansion units can still communicate with the base NAS. This is essential for intermachine data protection and capacity scalability for uninterrupted mission-critical enterprise tasks. Connect up to 7 expansion units for petabyte-level storage capacity The base NAS requires QES 2.1.1 (or later) and either Mini-SAS HD (SAS 12Gb/s SFF-8644), Mini-SAS (SAS 6Gb/s SFF-8088) ports or a PCIe-based SAS expansion card. Highly efficient, reliable and scalable The TL-R1620Sdc is powered by a low-power 28nm SAS35x28R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Both controllers have three Mini-SAS HD (SFF-8644) ports, and each SAS wide port combines four SAS 12Gb/s channels for up to 48Gbps bandwidth. Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sdc has an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sdc uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sdc at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure. |
| Product Type | Drive Enclosure |
| Number of Hard Drives Supported | 16 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 16 |
| Number of Solid State Drive Installed | 0 |
| Non-RAID Mode | JBOD |
| Number of Total Expansion Bays | 16 |
| Number of 2.5"/3.5" Bays | 16 |
| Hot Swappable Bays | Yes |
| Drive Interface |
|
| Host Interface | Mini-SAS HD |
| Operating System Supported | Windows |
| Cooling Fan | Yes |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.17" (131.32 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 16.74" (425.20 mm) |
| Weight (Approximate) | 30.69 lb (13920.75 g) |
| Package Contents |
|
| Compatibility | Qnap Storage Systems |
| Condition | No |
| UPC | 0885022021444 |
| Limited Warranty | 5 Year |
