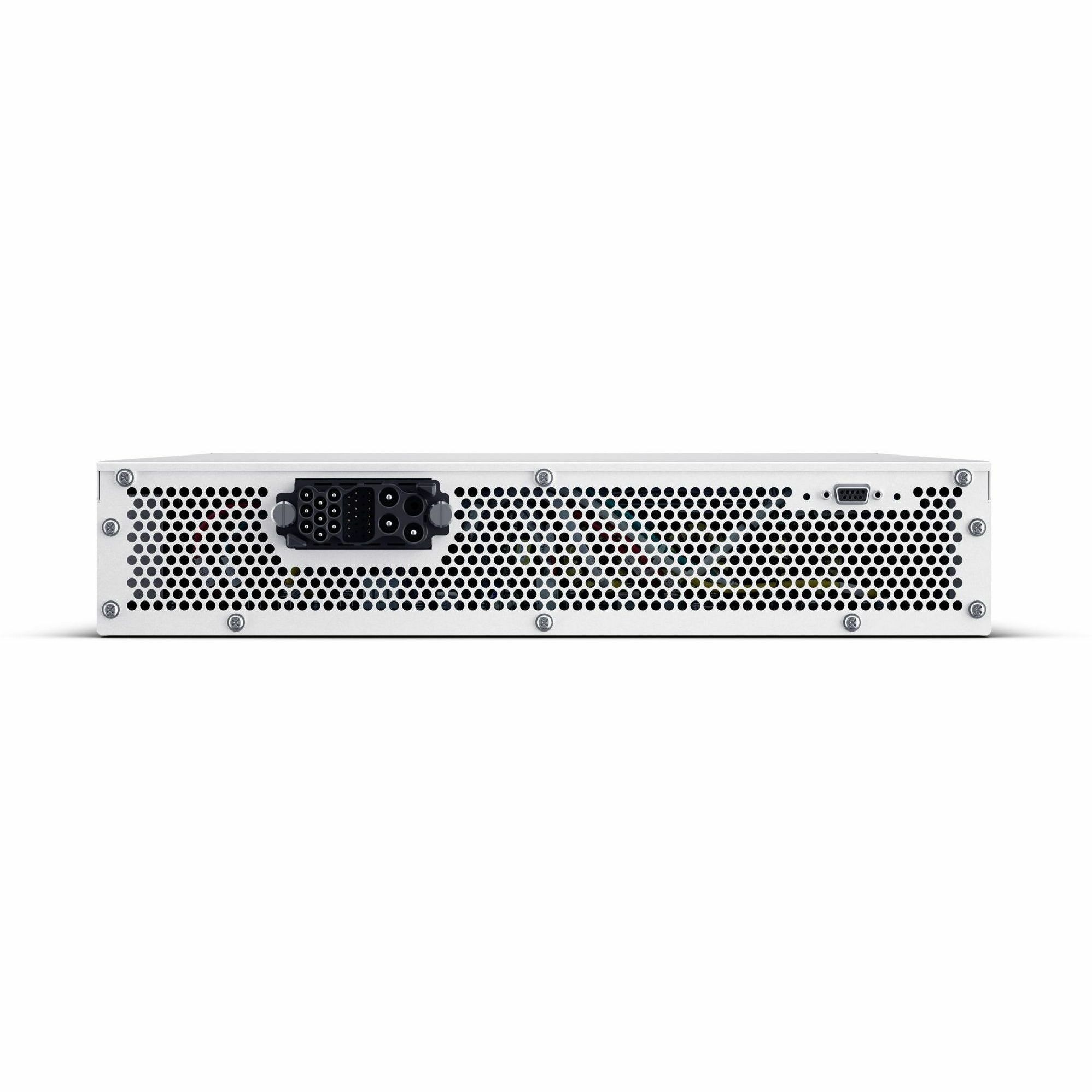

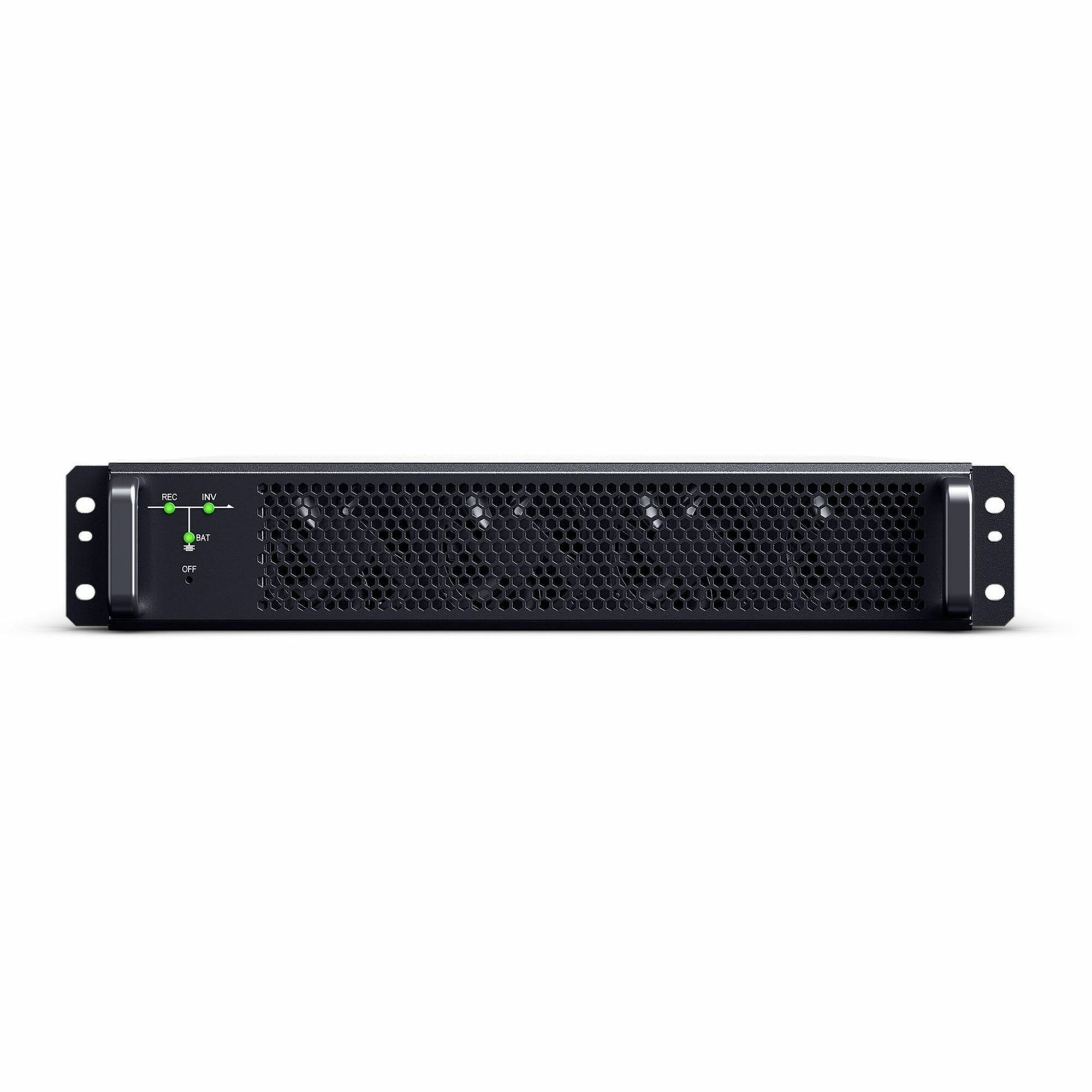

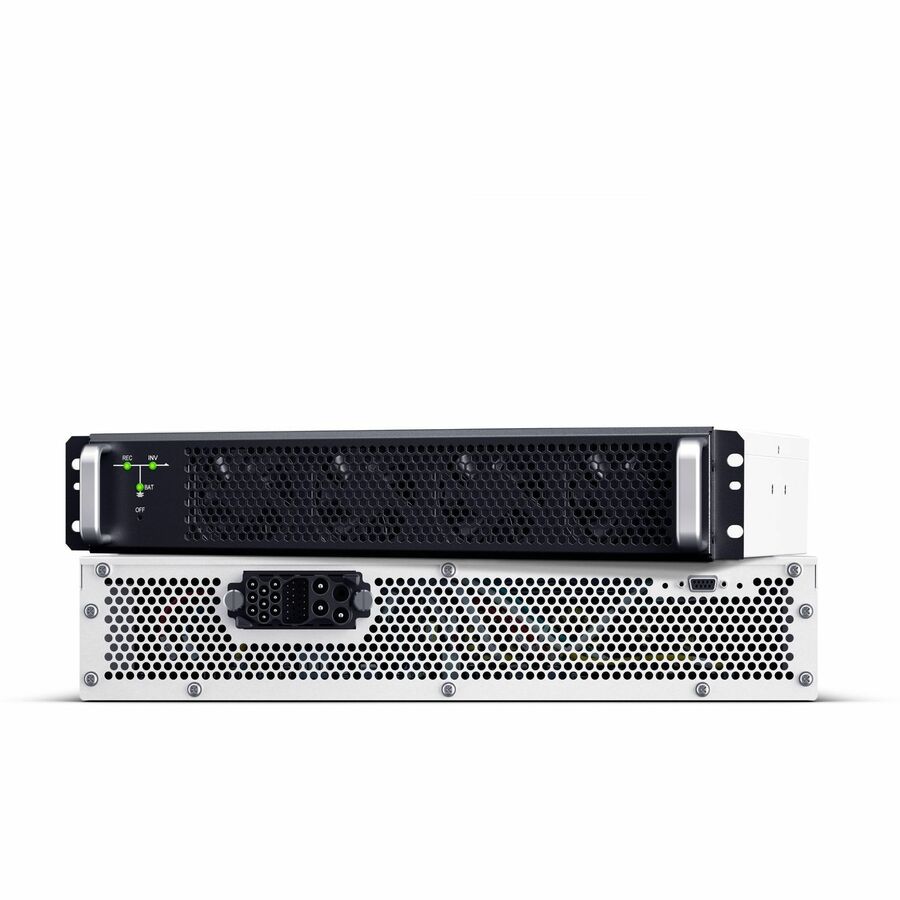

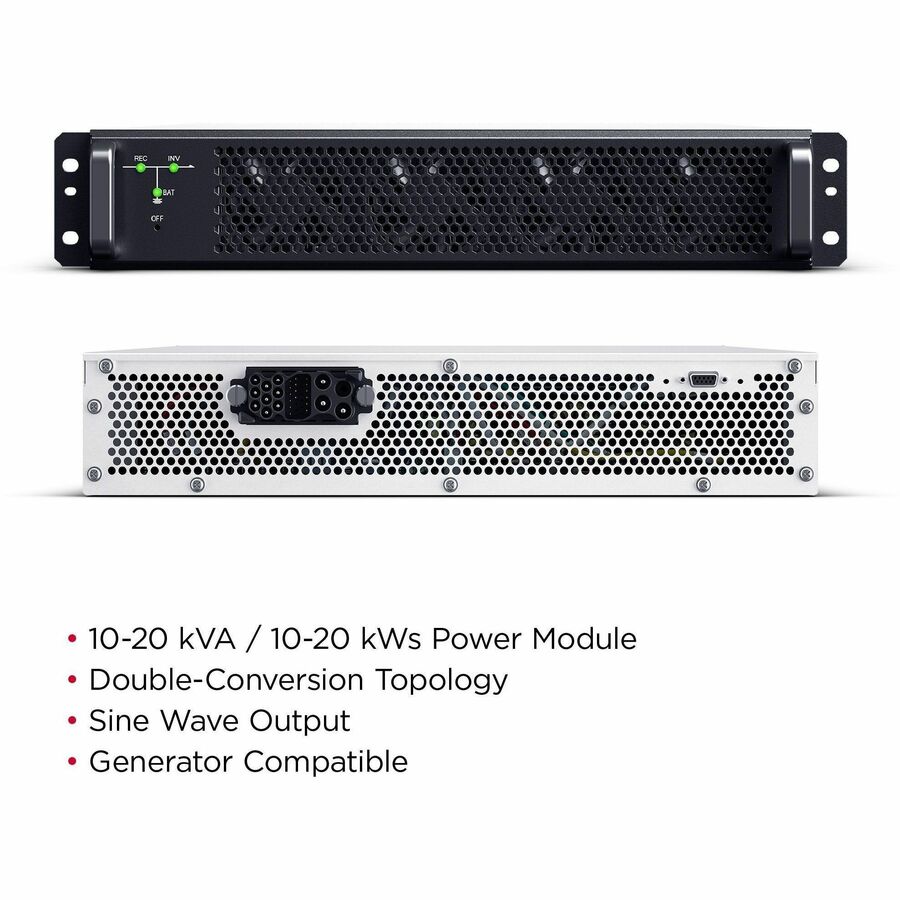

CyberPower SM10KAPMA 3-Phase Modular UPS Power Modules

10000VA / 10000W Power Module, Hot-Swappable, 2U, 1YR Warranty

Part No. SM10KAPMA

by CyberPower Systems, Inc

$5747.99

In Stock Availability

  • All Locations: (9+)
  • Calgary, AB (4+)
  • Mississauga, ON (5+)

General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberSM10KAPMA
Brand NameCyberPower
Product LineSmart App Online
Product Series3-Phase Power Modules
Product ModelSM10KAPMA
Product NameSM10KAPMA 3-Phase Modular UPS Power Modules
Marketing Information

CyberPower 3-Phase Modular UPS SM010KAPMA Power Modules are ultra-robust units capable of handling brief overcurrents of up to 150%. Indicator lights show status of each Power Module and the high-density design puts 10KVA of power in just 2U of space. Includes a One-Year Limited Warranty. For CyberPower 3-Phase Modular UPS Smart App Online Series models SM020KAMFA, SM040KAMFA.

Product TypeDouble Conversion Online UPS
Technical Information
Overload ProtectionYes
PhaseThree Phase
Energy SavingOnline ECO Mode Efficiency >97.5%
Power Description
Load Capacity (VA)10 kVA
Load Capacity (Watt)10 kW
Input Frequency70 Hz
Output Frequency60 Hz
Waveform TypeSine Wave
Controls/Indicators
Status IndicatorsLED Indicators: Rectifier
Battery Information
Battery CharacteristicsHot-swappable
Environmental Conditions
Maximum Operating Temperature104°F (40°C)
Maximum Operating Elevation10000 ft (3048000 mm)
Storage Relative Humidity0% - 95%
Sound Emission (A-Weighted)56 dB(A)
Thermal Dissipation2797.83 BTU/h
Physical Characteristics
Product Color
  • Silver
  • Black
Form FactorModular
Rack Height2U

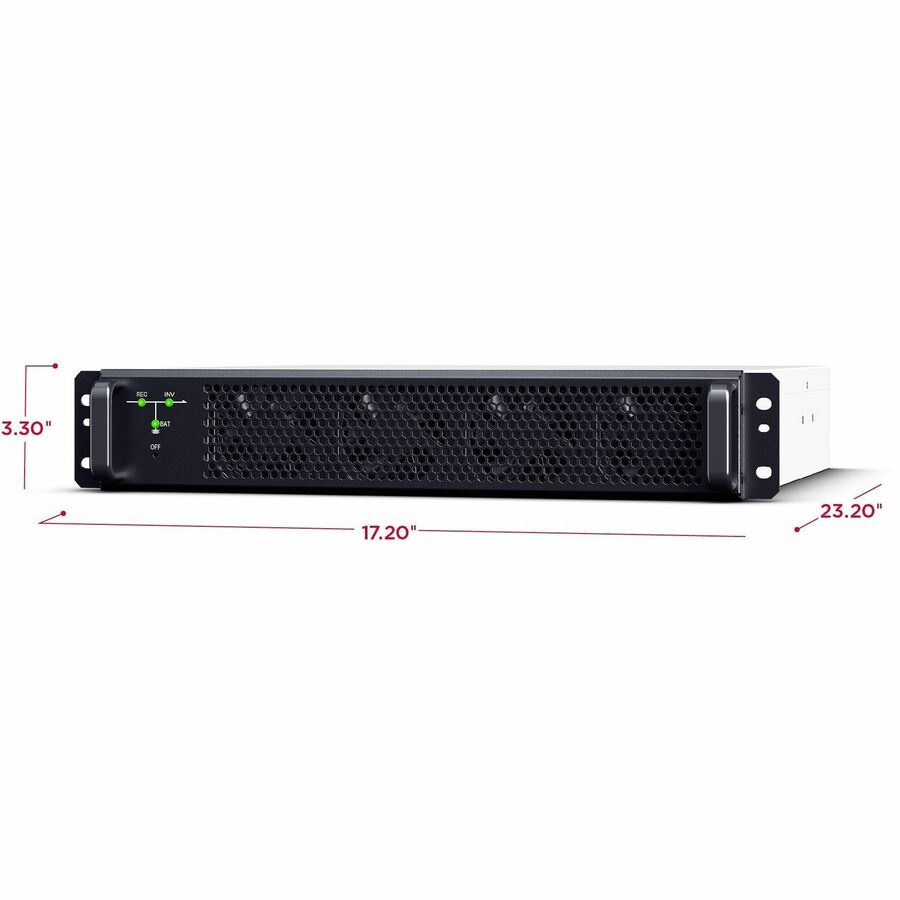

Height3.30" (83.82 mm)
Width17.20" (436.88 mm)
Depth23.20" (589.28 mm)
Weight (Approximate)36.20 lb (16420.04 g)
Miscellaneous
Additional Information
  • Boost Charge Voltage: 2.4 VDC/Cell, Constant Current and Constant Voltage Charge Mode
  • Float Charge Voltage: 2.25 VDC/Cell
  • Input Power Factor: 0.99
  • Output Power Factor: 1
  • Overload Protection: 105 - 110% Load for 60 min
  • Material of Construction: Metal
  • Mounting Hardware: No
  • Maximum Air Exchange: 4.5 m3 /min
  • Operating Elevation Note: At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m
  • Operating Relative Humidity: 0 - 95 % (non-condensing)
  • Operating Temperature Note: Battery life is halved for every 10°C increase above 20°C
  • Storage Battery Temperature Note: Optimum battery storage between -15°C and 20°C
  • UPS Models: SM020KAMFA, SM040KAMFA
Certifications & StandardsSafety: cTUVus
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
Warranty
Limited Warranty1 Year
