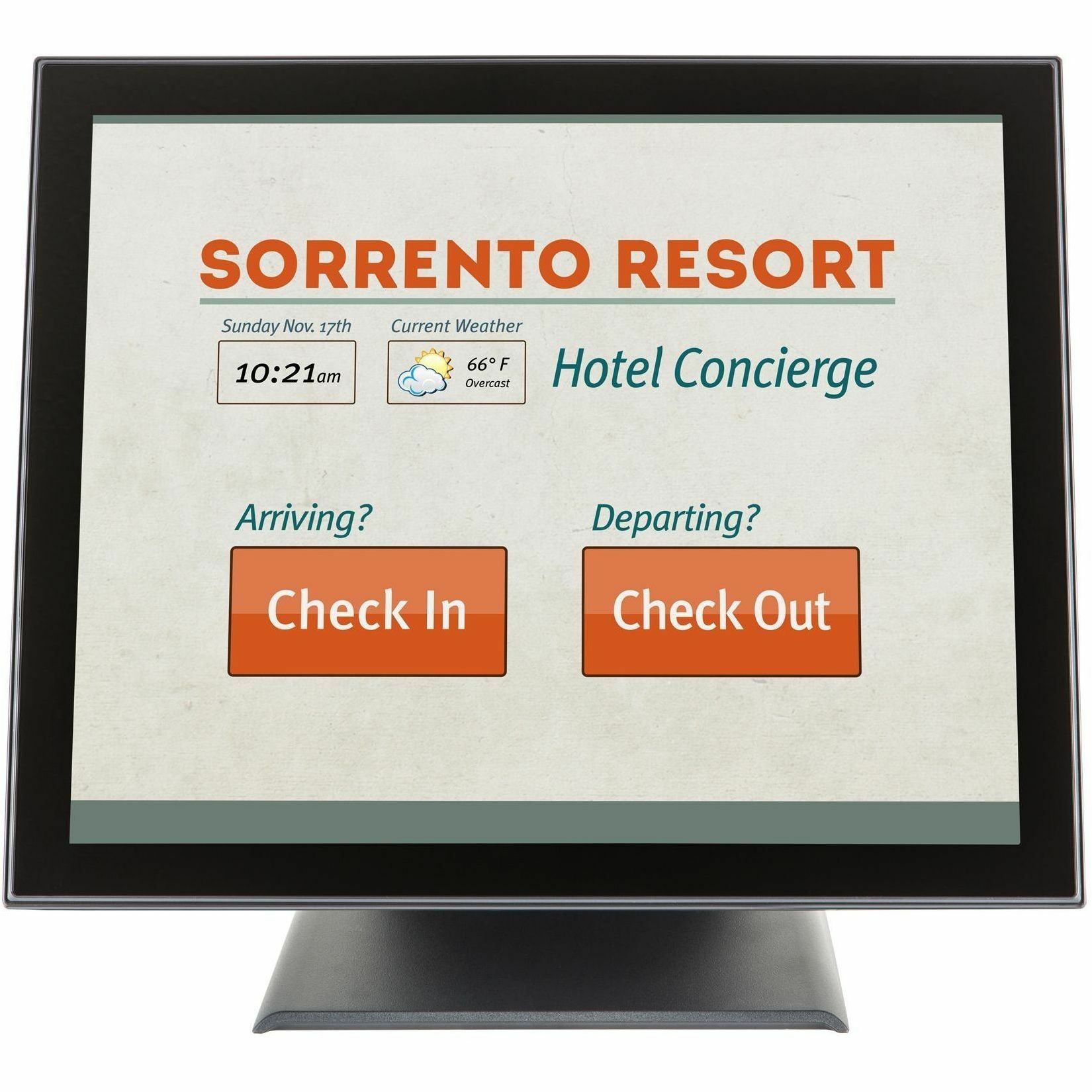

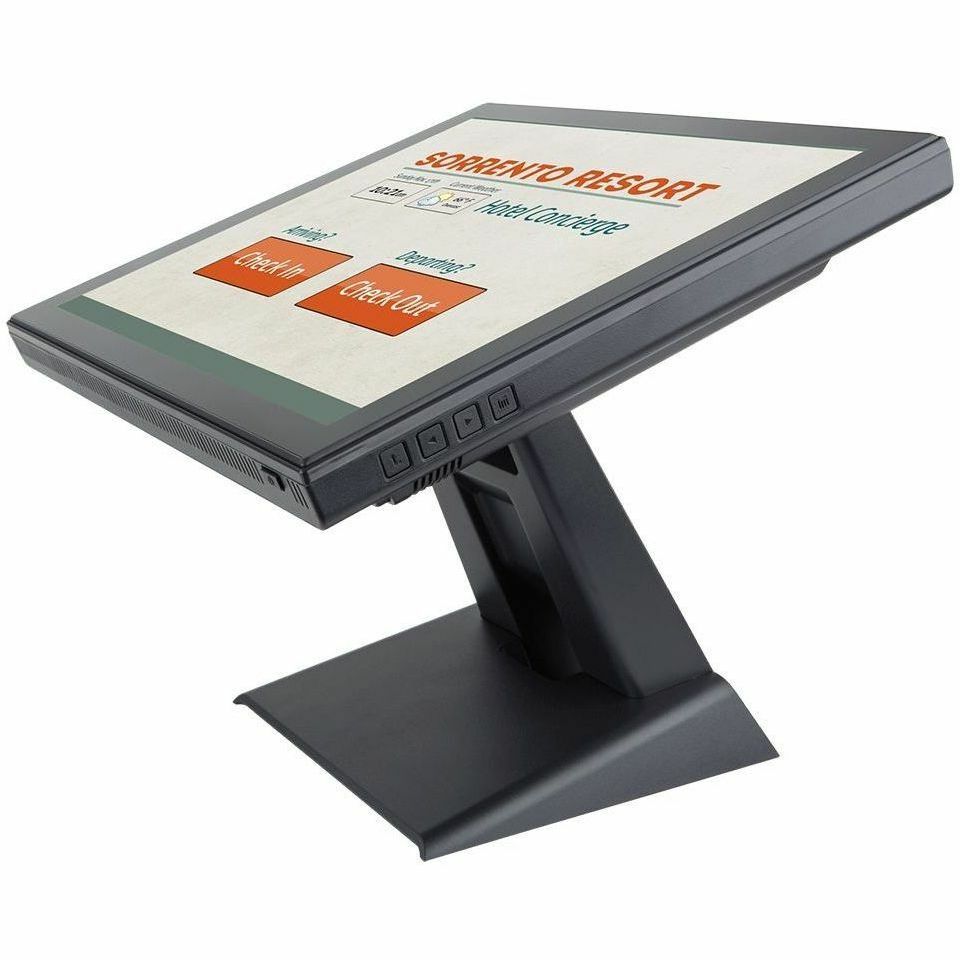

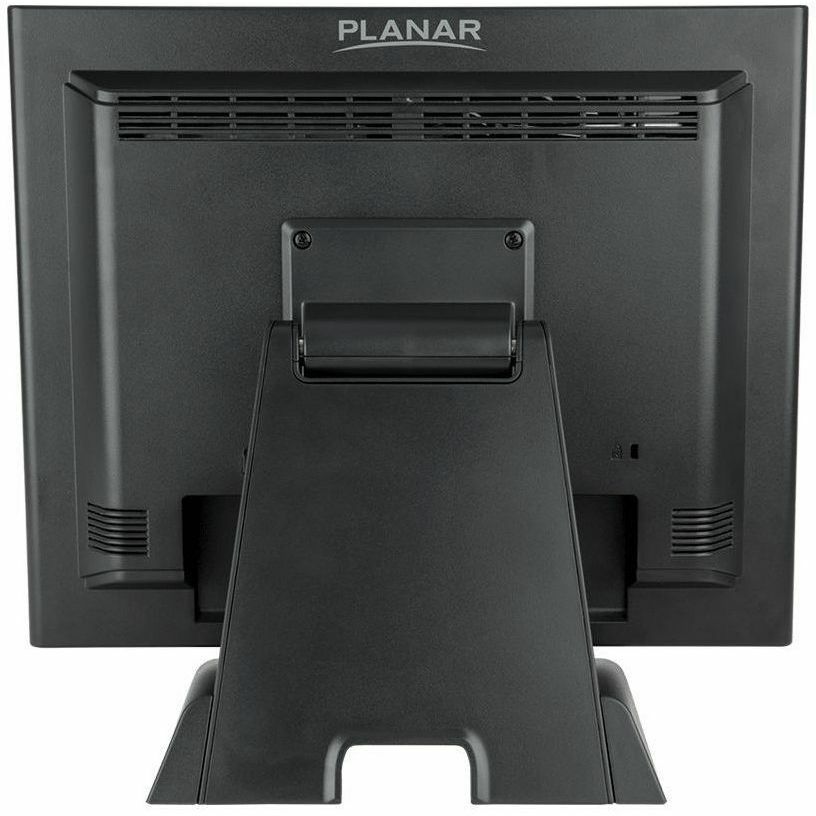

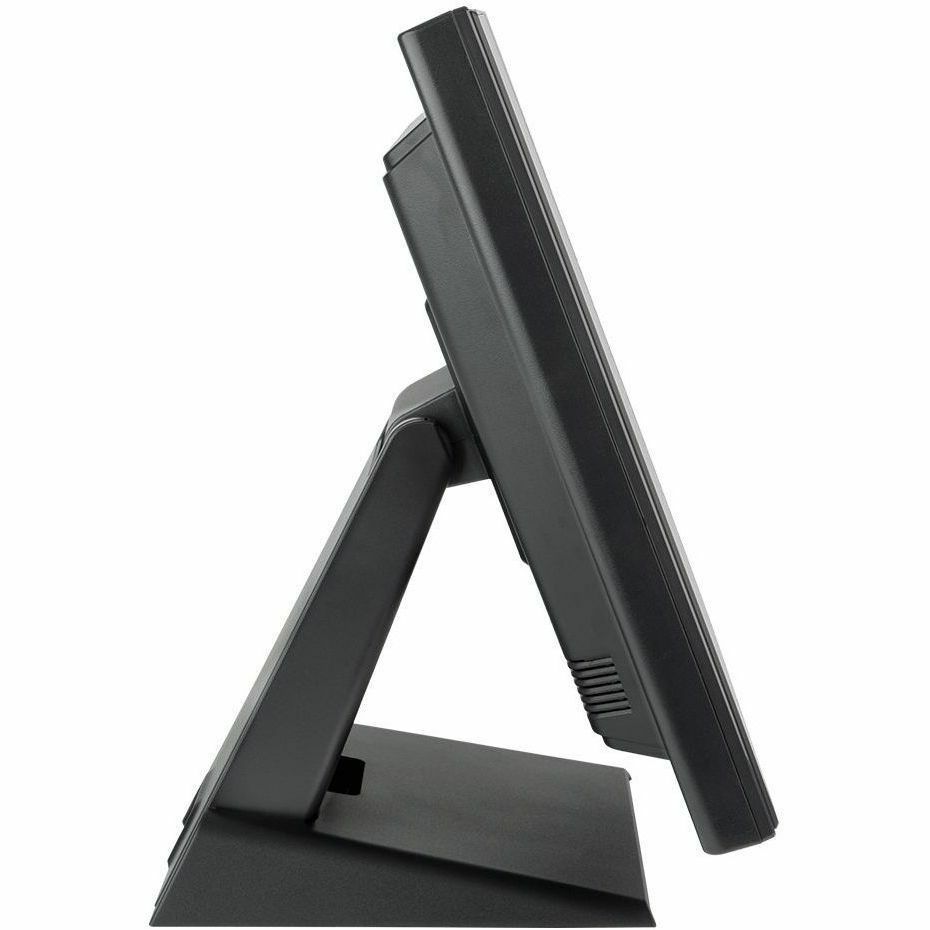

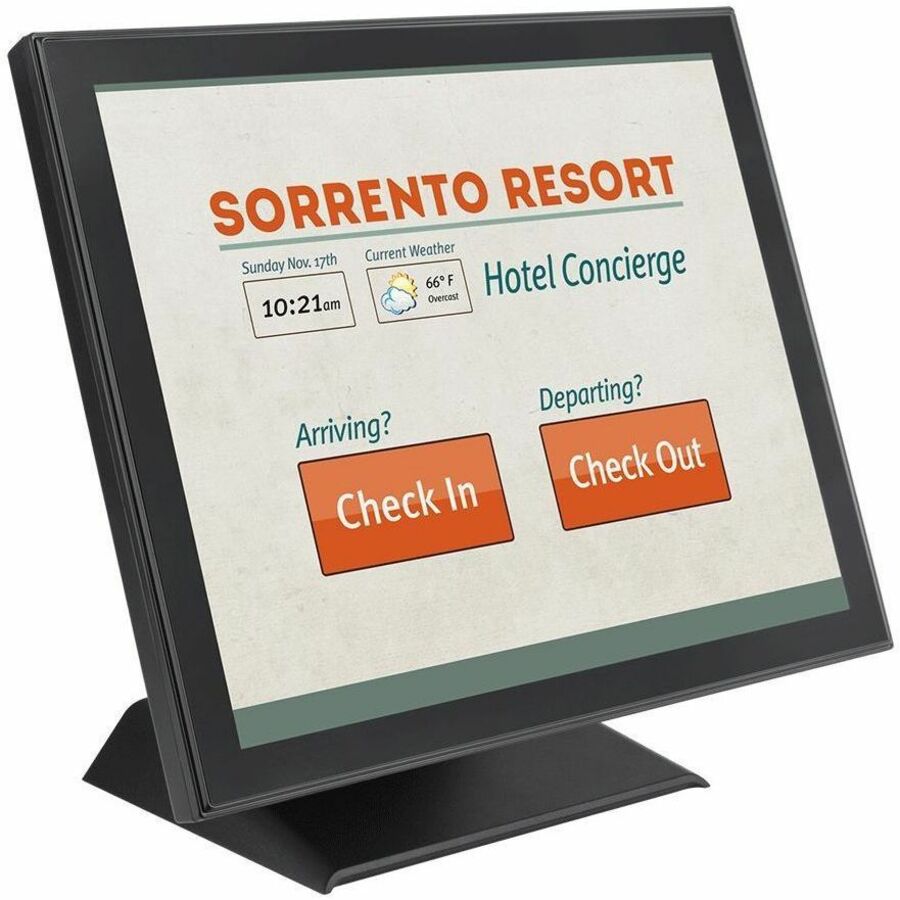

Planar PT1745P 17" Class LED Touchscreen Monitor - 5:4 - 5 ms
17" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1280 x 1024 - SXGA - 16.7 Million Colors - 212 cd/m² - Edge LED Backlight - Speakers - HDMI - USB - VGA - DisplayPort - Black - 3 Year
$729.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Leyard |
| Manufacturer Part Number | 997741401 |
| Brand Name | Planar |
| Product Model | PT1745P |
| Product Name | PT1745P 17" Touch Screen Point of Sale Monitor |
| Marketing Information | The Planar® PT1745P 17" touch screen Point of Sale (POS) monitor is perfect for image-conscious retail, hospitality, or healthcare applications. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1745P provides the ultimate interactive experience and is optimized with multi-touch interactivity for space-constrained settings. The upgraded monitor now comes with HDMI® and DisplayPort input connectivity. |
| Product Type | LED Touchscreen Monitor |
Technical Information
| Screen Size Class | 17" |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Pixel Pitch | 10.39 mil (0.26 mm) |
| Response Time | 5 ms |
| Aspect Ratio | 5:4 |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | Edge LED |
| Features |
|
| Vertical Frequency | 56 Hz to 75 Hz |
| Stand Adjustments | Tilt |
| Operation Hours | 16 Hours/ 7 Days |
| Active Display Area (H x V) | 13.30" (337.82 mm) x 10.60" (269.24 mm) |
Video
| Maximum Resolution | 1280 x 1024 |
| Standard Refresh Rate | 75 Hz |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 212 cd/m² |
Audio
| Speakers | Yes |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
Interfaces/Ports
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
Environmental Conditions
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
Power Description
| Operating Power Consumption | 11.90 W |
| Maximum Power Consumption | 11.90 W |
| Frequency |
|
Physical Characteristics
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Color Family | Black |
| Product Color | Black |
| Height | 12.59" (319.90 mm) |
| Width | 15.23" (386.80 mm) |
| Depth | 2.64" (67 mm) |
| Height with Stand | 13.46" (341.90 mm) |
| Width with Stand | 15.23" (386.80 mm) |
| Depth with Stand | 7.95" (202 mm) |
| Weight (Approximate) | 8.82 lb (4000 g) |
| Weight with Stand (Approximate) | 12.35 lb (5600 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| COO | CN |
| Condition | No |
Warranty
| Limited Warranty | 3 Year |
