Cisco ANT-7-5G4WL2G1-O Antenna
617 MHz to 960 MHz, 1710 MHz to 5925 MHz - 5.8 dBi - Cellular Network, GPS, Wireless Data NetworkVehicle Mount, Direct Mount - Omni-directional - SMA, RP-SMA Connector
$1126.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | ANT75G4WL2G1O |
| Brand Name | Cisco |
| Product Model | ANT-7-5G4WL2G1-O |
| Product Name | ANT-7-5G4WL2G1-O Antenna |

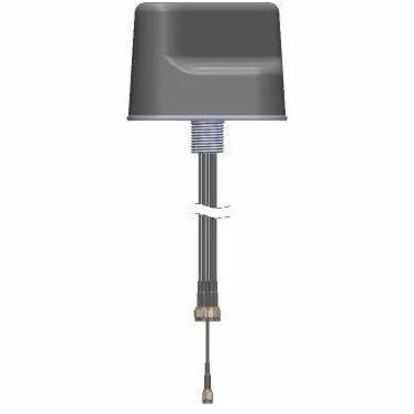

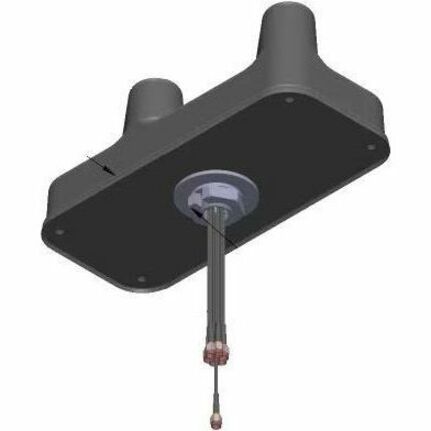

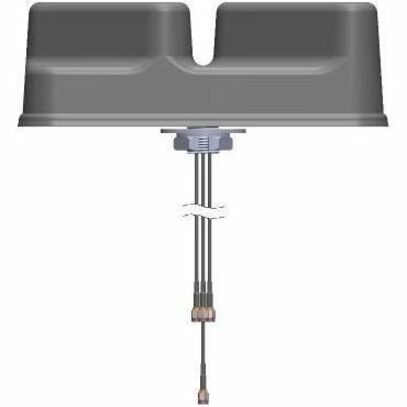

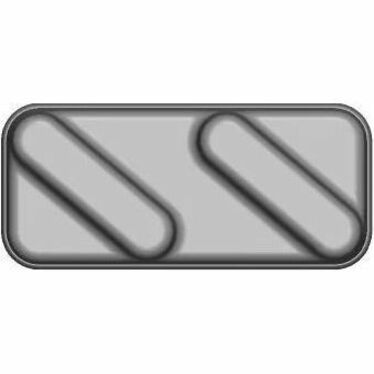

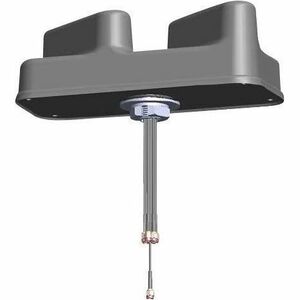

| Marketing Information | This section describes the technical specifications and installation instructions for the Cisco Multi-element, 7-in-1, LTE/Wi-Fi/GNSS antenna (ANT-7-5G4WL2G1-O), hereafter referred to as the antenna. The antenna features:
The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications. |
| Packaged Quantity | 1 |
| Product Type | Antenna |
Technical Information
| Directivity | Omni-directional |
| Operating Frequency Range |
|
| Antenna Gain (Isotropic) | 5.8 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
Interfaces/Ports
| Connector Type |
|
Power Description
| Power Source | DC Power |
Physical Characteristics
| Height | 3.63" (92.20 mm) |
| Width | 4.86" (123.44 mm) |
| Form Factor |
|
| Weight (Approximate) | 1.85 lb (839.15 g) |
Miscellaneous
| Application/Usage |
|
| Condition | No |
Warranty
| Limited Warranty | 5 Year |
