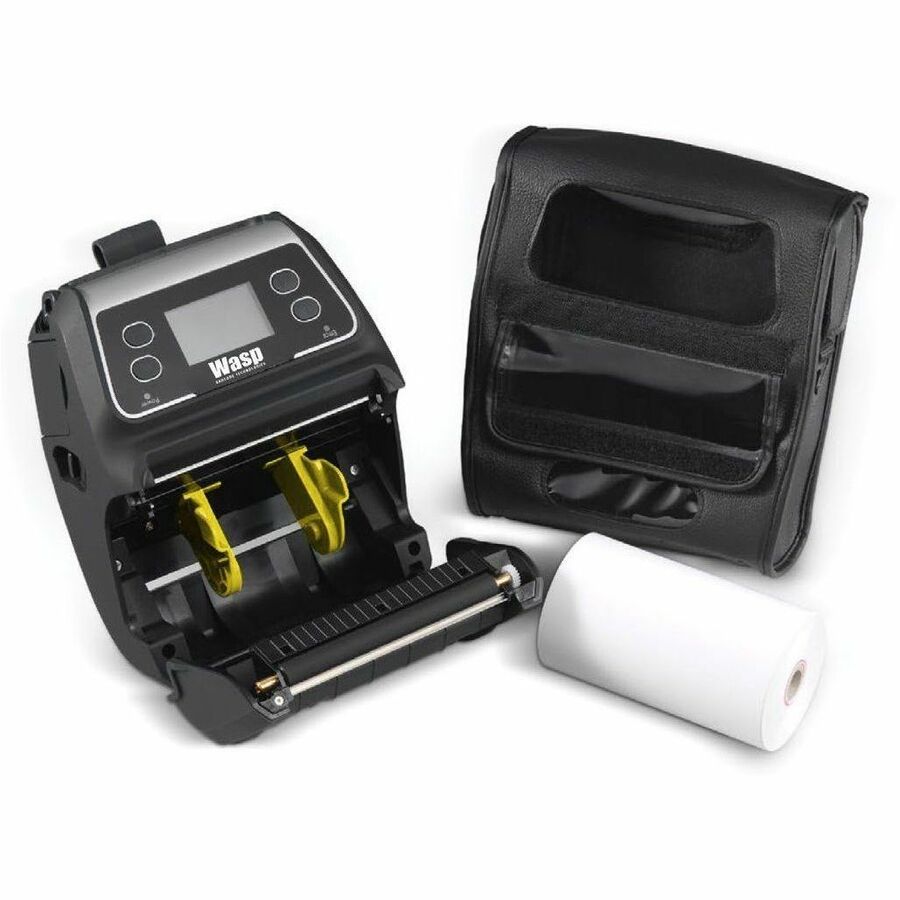

Wasp WPL4M Warehouse, Retail, Mobile, POS System, Distribution Center, Packaging Label Direct Thermal Printer - Portable - Label Print - USB - USB Host - Serial - Bluetooth - IEEE 802.11a/b/g/n Wireless LAN

90" (2286 mm) Print Length x 4.09" (104 mm) Print Width - 4.02 in/s (102 mm/s) Mono - 203 dpi - 4.41" (112 mm) Label Width - WPL, EPL, ZPL, ZPL II, ESC/POS, CPCL Emulation - For iOS, Android

Part No. 633809009419

by Wasp Barcode Technologies

$1088.99

Specifications

General Information

Manufacturer	Wasp Barcode Technologies
Manufacturer Part Number	633809009419
Brand Name	Wasp
Product Model	WPL4M
Product Name	Mobile Label Printer
Marketing Information	WPL4M \| Mobile Label Printer Quick And Reliable Portable Printer With a Ruggedized Design For the Mobile Worker. Key Features Up to 4 inches per second (102 mm) print speed 16 MB Flash memory, 32 MB SDRAM microSD Flash memory expansion up to 4 GB Portable and user-friendly design USB 2.0, Bluetooth and 802.11 a/b/g/n Wireless interfaces (depending on the model) Label capacity up to 2.5 inches (67.3 mm) OD WPL firmware for plug-n-play ease
Product Type	Direct Thermal Printer

Technical Information

Recommended Use	Label Print
Maximum Mono Print Speed	4.02 in/s (102 mm/s)
Maximum Print Resolution (dpi)	203
Maximum Print Length	90" (2286 mm)
Maximum Print Width	4.09" (104 mm)
Barcode Symbology Supported	1D Code 11 Code 39 Code 93 Code 128 UCC Code 128 (A/B/C) Codabar Interleaved 2 of 5 EAN-8 EAN-13 EAN-14 EAN-128 UPC-E UPC-A EAN and UPC 2(5) Digits Add-On MSI Plessey POSTNET China Post ITF-14 Telepen Deutsche Post Identcode Deutsche Post Leitcode LOGMARS 2D Code 49 PDF-417 Micro PDF-417 Maxi Code Data Matrix QR Code AZTEC CODABLOCK F Mode GS1 DataBar
Application/Usage	Warehouse Retail Mobile POS System Distribution Center Packaging Label
Features	Rugged Plug and Play Lightweight Dust Resistant Water Resistant
Mobile Device Printing	Yes
Connectivity Technology	Wired & Wireless
Print Technology	Direct Thermal

Memory

Standard Memory	32 MB
Flash Memory	16 MB

Interfaces/Ports

Serial Port	Yes
USB Host	Yes
USB	Yes
USB Standard	USB 2.0

Network & Communication

Bluetooth	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11a/b/g/n

Media Types & Handling

Media Type	Label Continuous Label Die-cut Label Black Mark Fanfold Notch
Media Sensor	Transmissive Media Sensor Gap Sensor Black Mark Sensor Reflective Media Sensor Head Open Sensor
Media Thickness	6.3 mil (0.16 mm)
Maximum Roll Diameter	1" (25.40 mm)
Maximum Label Width	4.41" (112 mm)

Fonts & Emulation

Language Emulation	WPL EPL ZPL ZPL II ESC/POS CPCL

Software

Operating System Supported	Android Windows

Power Description

Power Source	Battery

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Capacity	5800 mAh

Environmental Conditions

Operating Temperature	14°F (-10°C) - 122°F (50°C)
Operating Relative Humidity	10% - 90%
Storage Temperature	-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity	10% - 90%

Physical Characteristics

Form Factor	Portable
Height	7.54" (191.60 mm)
Width	6.30" (160 mm)
Depth	3.11" (79 mm)
Weight (Approximate)	2.43 lb (1100 g)

Miscellaneous

Compatibility	iPhone iPad
Platform Supported	iOS Android
COO	US
Condition	No
