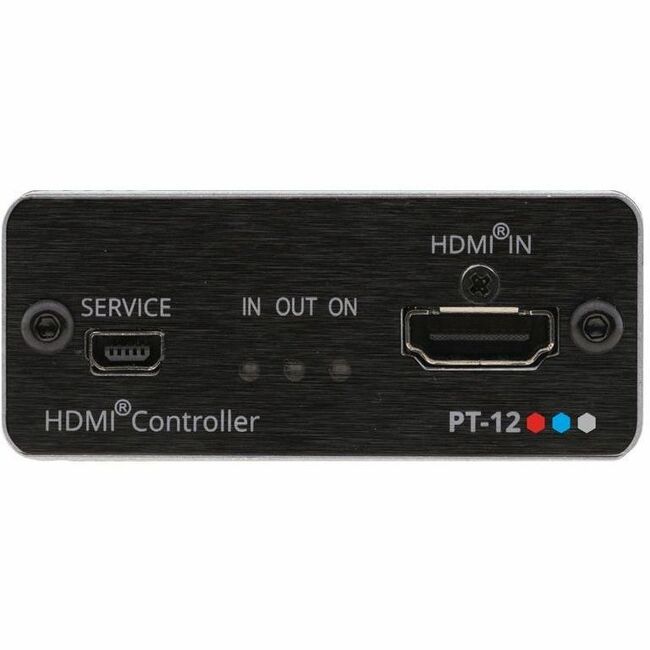

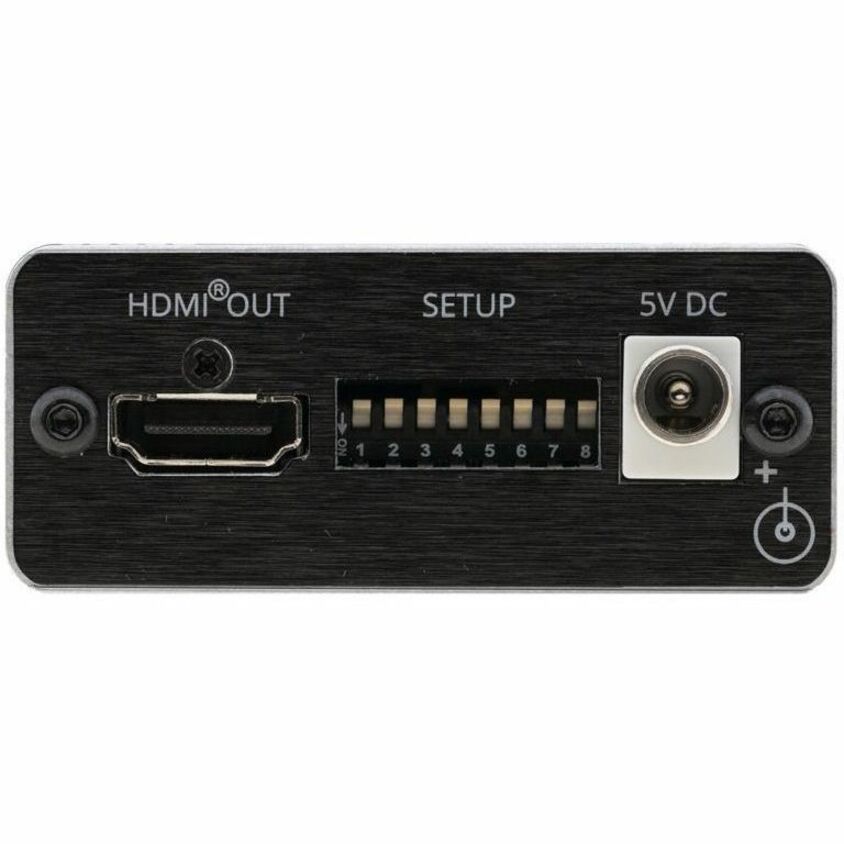

Kramer 4K60 4:2:0 HDMI Controller
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | PT12 |
| Brand Name | Kramer |
| Product Model | PT-12 |
| Product Name | 4K60 4:2:0 HDMI Controller |
| Marketing Information | PT-12 is a CEC-enabled TV/display ON/OFF controller and extended EDID processor for HDMI signals up to 4K@60Hz (4:2:0) resolution. When PT-12 detects an HDMI cable plug, it automatically turns on the connected display, and automatically shuts down the display when signal loss is detected. PT-12 is an EDID processing tool for controlling the EDID functions FEATURES | Plug-and-Play Display Operation - Simplifies meeting presentation operation by automatically turning ON/OFF a CEC-enabled display when the presentation source is plugged in / unplugged with user-defined shut-down delay High-Performance HDMI Controller - Supports pass-through of signals up to 4K@60Hz (4:2:0) resolution with user control on signal capabilities and functions HDCP Authorization - Controlled device appearance as HDCP authorized to allow unsecured content display by all market-available computer sources Video Signal Control - Controlled color depth attributes and color space forcing capabilities of passing-through video signal, along with EDID locking configuration to ensure proper video display Audio Signal Control - Controlled audio-channels limitation of passing-through audio signal Display Control - Display auto shut-down upon no signal detection with user-defined delay, as controlled by end-user settings Simple Operation - DIP-switches available for simple controller functions by end-user Cost-Effective Maintenance - Status LED indicators for HDMI ports and power facilitate easy local maintenance and troubleshooting. Local device management and firmware upgrade via mini-USB port and DIP-switches, ensure lasting, field-proven deployment Easy Installation - Compact PicoTOOLS® fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the recommended Kramer rack adapter |
| Product Type | Signal Converter |
| Functions | Signal Conversion |
| Screen Mode Supported | 4K UHD |
| Frequency Range | 60 |
| USB | Yes |
| HDMI | Yes |
| Power Source | DC |
| Form Factor | Rack-mountable |
| Height | 0.96" (24.40 mm) |
| Width | 2.45" (62.20 mm) |
| Depth | 2.04" (51.80 mm) |
| Weight (Approximate) | 3.53 oz (100 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
