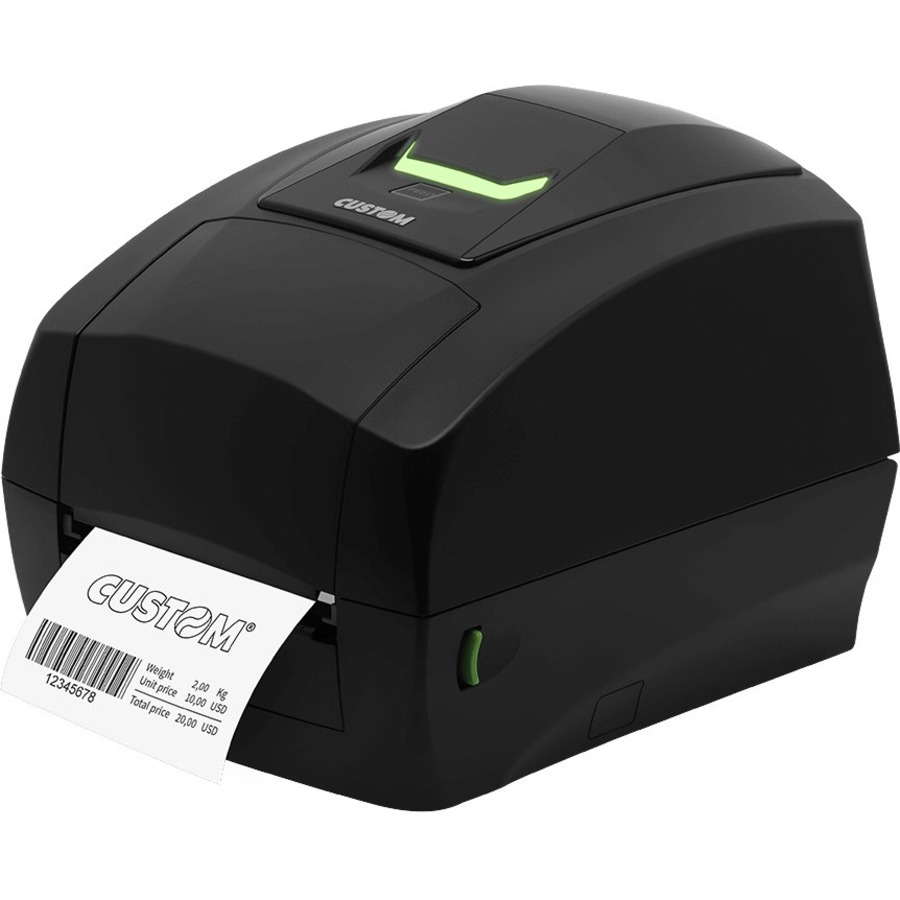

Custom D4 102 Desktop Direct Thermal/Thermal Transfer Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Black

12.50 ft (3810 mm) Print Length x 4.09" (104 mm) Print Width - 5 in/s (127 mm/s) Mono - 203 dpi - 4.33" (110 mm) Label Width - EPL, PEPL, PDPL, PZPL Emulation - For PC

Part No. 911MK010500J33

by Custom S.p.A

$243.99

Specifications

General Information

Manufacturer	Custom S.p.A
Manufacturer Part Number	911MK010500J33
Brand Name	Custom
Product Model	D4 102
Product Name	D4 102 Label Printer
Marketing Information	D4 102 is a compact size 4" desktop label printer with a industrial level equipments and high performance. Multiple communication ports, 1 multi function key and LED light to easily operate and show the error status are some of the main features that makes this label printer ideal for labelling application.
Product Type	Direct Thermal/Thermal Transfer Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	127 mm/s
Maximum Print Resolution (dpi)	203
Maximum Print Length	12.50 ft (3810 mm)
Maximum Print Width	4.09"
Barcode Symbology Supported	Code 39 Code 93 Extended Code 39 Code 128 Code 128 UCC Codabar EAN-8 EAN-13 2 and 5 Digits Add-on Interleaved 2 of 5 Interleaved 2 of 5 With Check Digit UCC/EAN 128 UPC-A UPC-E UPC-E with 2 or 5 Digit Extension Code 11 Data Matrix Maxi Code PDF417 QR Code
Application/Usage	Desktop
Features	Compact
Connectivity Technology	Wired
Fonts Included	5 internal expandable bitmap fonts (alpha-numeric) Downloadable soft font 4 directions: O, 90, 180, 270 degrees 2 internal expandable bitmap fonts (numeric only)
Print Technology	Direct Thermal /Thermal Transfer

Memory

Standard Memory	128 MB

Interfaces/Ports

USB Host	Yes
USB	Yes

Network & Communication

Ethernet	Yes
Ethernet Technology	Fast Ethernet

Media Types & Handling

Media Type	Label Continuous Label Die-cut Label Tag Fanfold Black Mark
Media Sensor	Moveable Reflective/Black Mark Sensor Cover Open Sensor
Media Thickness	7.9 mil
Maximum Roll Diameter	5"
Maximum Label Width	4.33" (110 mm)

Fonts & Emulation

Language Emulation	EPL PEPL PDPL PZPL

Power Description

Power Source	Power Adapter AC Supply
Input Voltage	120 V AC 230 V AC

Environmental Conditions

Operating Temperature	41°F (5°C) - 113°F (45°C)
Operating Relative Humidity	10% - 90%
Storage Temperature	-4°F (-20°C) - 122°F (50°C)
Storage Relative Humidity	5% - 95%

Physical Characteristics

Color Family	Black
Product Color	Black
Height	7.40" (188 mm)
Width	7.87" (200 mm)
Depth	10.35" (263 mm)
Weight (Approximate)	2 kg

Miscellaneous

Platform Supported	PC
COO	TW
Condition	No
