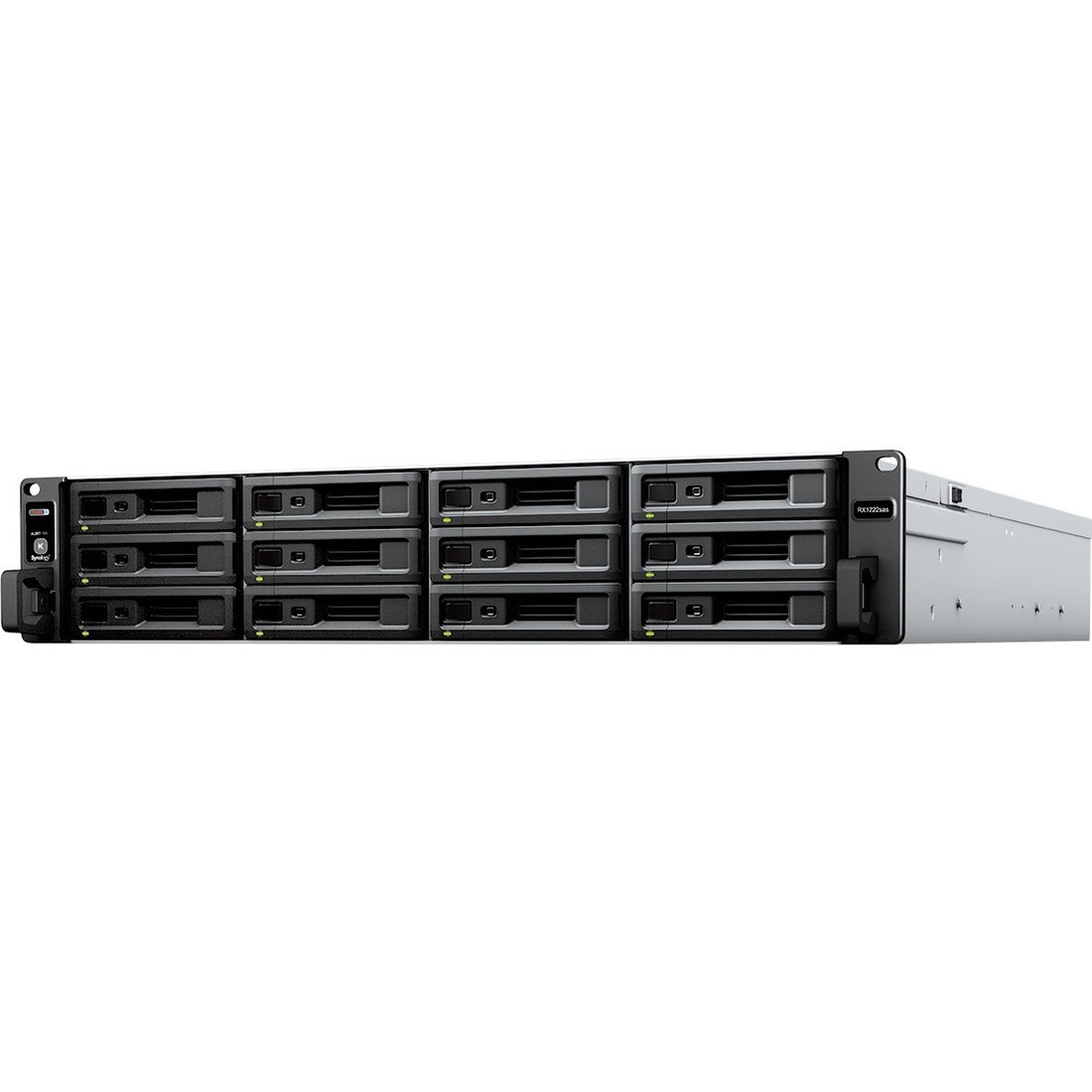

Synology RX1222SAS Drive Enclosure Serial Attached SCSI (SAS), SATA - SAS Host Interface - 2U Rack-mountable

Part No. RX1222sas

by Synology, Inc

Synology RX1222SAS Drive Enclosure Serial Attached SCSI (SAS), SATA - SAS Host Interface - 2U Rack-mountable

Hot Swappable Bays - 12 x HDD Supported - 192 TB Total HDD Capacity Supported - 12 x SSD Supported - 192 TB Total SSD Capacity Supported - 12 x Total Bay - 12 x 2.5"/3.5" Bay

Part No. RX1222sas

by Synology, Inc

$4867.99
General Information
ManufacturerSynology, Inc
Manufacturer Part NumberRX1222sas
Brand NameSynology
Product ModelRX1222SAS
Product NameExpansion Unit RX1222sas
Marketing Information

Accommodate massive storage growth

Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units.1 Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)'s online volume expansion and powerful volume management options.

Easy setup and management

Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.

Fast and stable with Synology drives

Achieve higher levels of reliability with Synology's SAS and SATA enterprise drives. Backed by hundreds of thousands of hours of rigorous testing, they ensure maximum integration and optimal performance when paired with your Synology deployment.

Built with service uptime in mind

RX1222sas's hot-swappable drive trays, fans, and power supplies reduce the impact of maintenance on service availability, while the redundant power supply units keep your system online even in case one power source fails.

Packaged Quantity1
Product TypeDrive Enclosure
Technical Information
Number of Hard Drives Supported12
Number of Hard Drives Installed0
Total Hard Drive Capacity Supported192 TB
Number of Solid State Drive Supported12
Number of Solid State Drive Installed0
Total Solid State Drive Capacity Supported192 TB
I/O Expansions
Number of Total Expansion Bays12
Number of 2.5"/3.5" Bays12
Hot Swappable BaysYes
Interfaces/Ports
Drive Interface
  • Serial Attached SCSI (SAS)
  • SATA
Host InterfaceSAS
Physical Characteristics
Cooling FanYes
Form FactorRack-mountable
Rack Height2U
Height3.46" (88 mm)
Width18.98" (482 mm)
Depth28.50" (724 mm)
Weight (Approximate)29.76 lb (13500 g)
Miscellaneous
CompatibilitySA series:
  • SA3600
  • SA3400
ConditionNo
UPC846504004362
