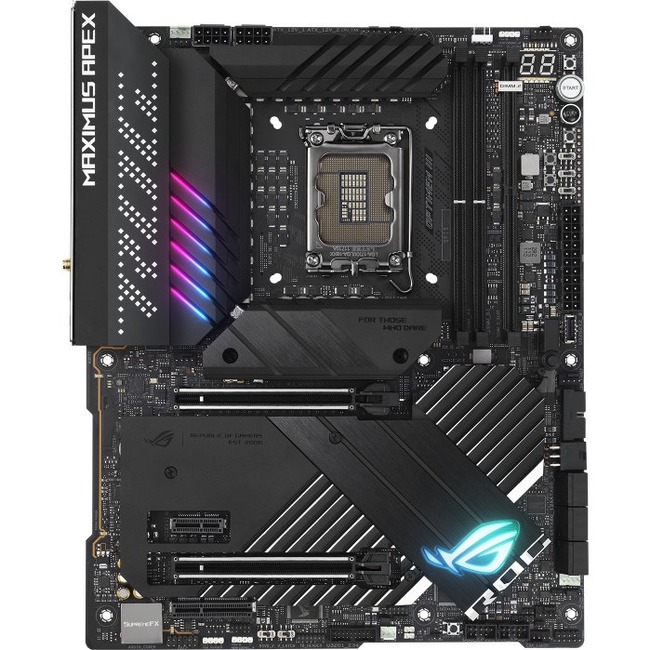

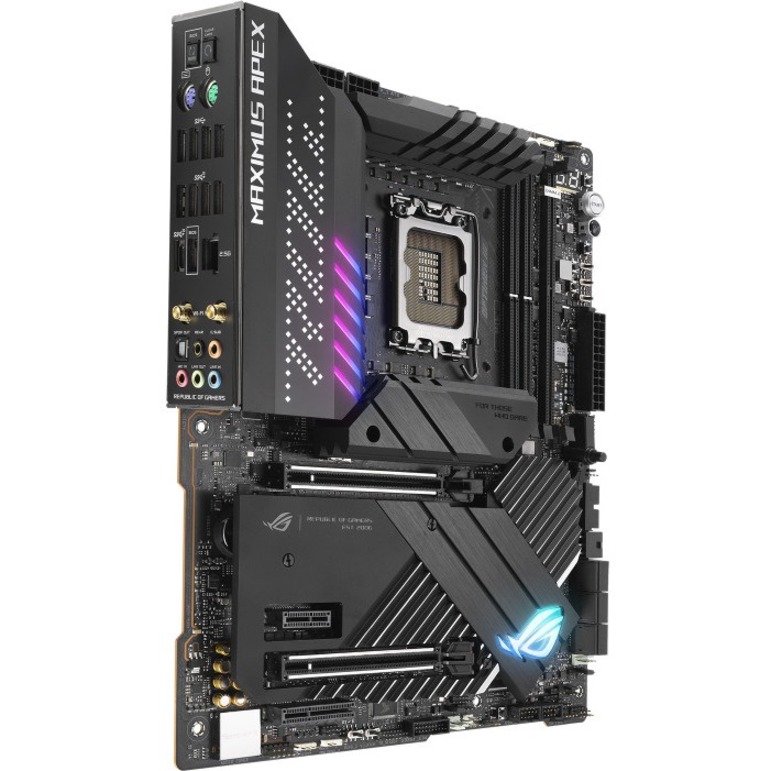

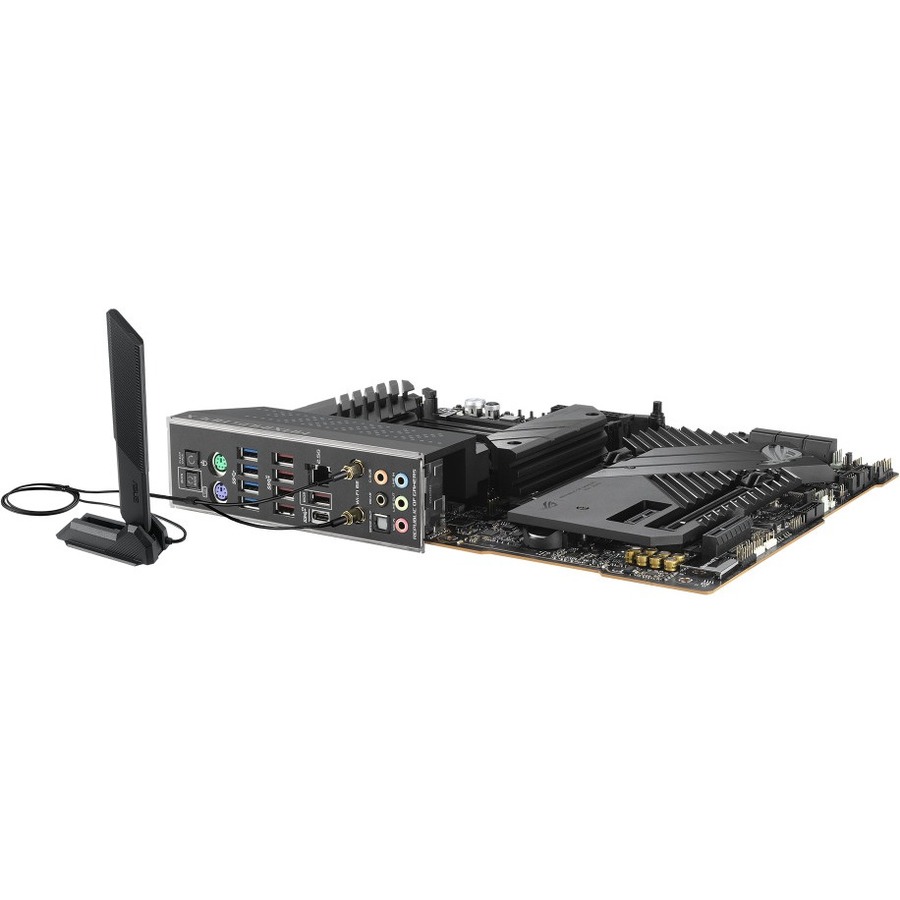

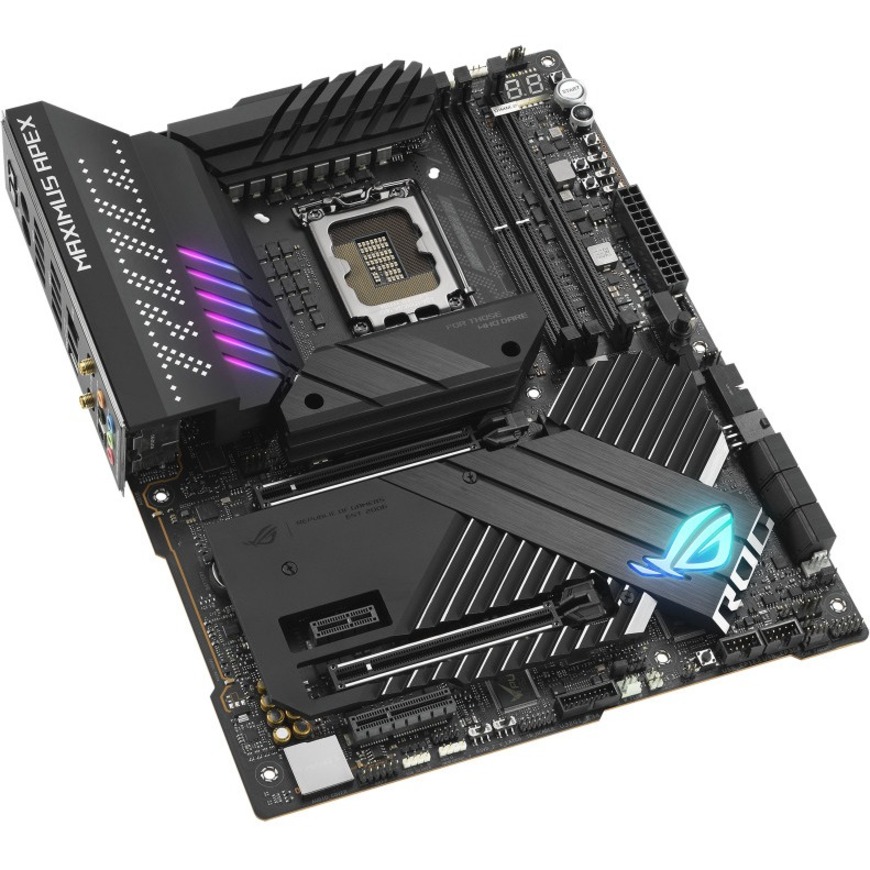

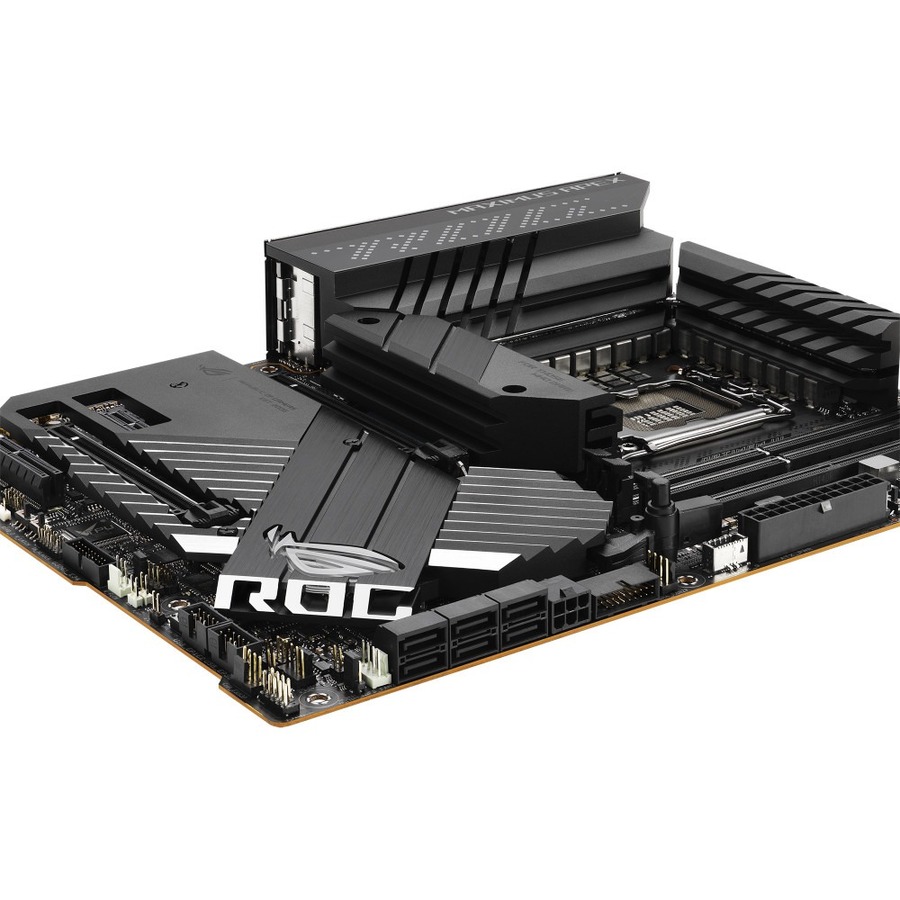

Asus ROG Maximus Z690 Apex Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROGMAXIMUSZ690APEX |
| Brand Name | Asus ROG |
| Product Line | Maximus Z690 Apex |
| Product Name | Maximus Z690 Apex Desktop Motherboard |
| Marketing Information | Intel® Z690 ATX motherboard with 24+0 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, PCIe® 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting
ROG Maximus Z690 Apex ROG Maximus Z690 Apex is the premiere choice for those who seek a combination of raw speed and cutting-edge tech like DDR5 memory, PCIe 5.0, and truckloads of power delivery for the most performant 12th Gen Intel Core processors available. Its streamlined layout is engineered for ultra-low latency and maximal bandwidth, to empower users to discover the limits of performance and define new world records. AUTO-EXTREME TECHNOLOGY Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. OVERCLOCKING ROG Maximus Z690 Apex makes overclocking accessible to both beginners and seasoned enthusiasts alike. Its beef-up power solution caters to the demands of 12th Gen Intel processors, while ASUS Enhanced Memory Profile technology makes it easy to ramp up DDR5 performance. COOLING A comprehensive cooling solution is vital to a pursuit of performance. ROG Maximus Z690 Apex includes robust heatsinks and the ROG Water-Cooling Zone, a set of fan and sensor headers that help keep temperatures in check. CONNECTIVITY Maximus Z690 Apex delivers supersmooth WiFi 6E connectivity, extensive M.2 slots, and high-end audio - the essentials for any setup. OPTIMIZATION ROG Maximus Z690 Apex is packed with intuitive and flexible tools like 5-Way Optimization and a UEFI BIOS interface, giving users next-level control of system performance. |
| Product Type | Desktop Motherboard |
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported |
|
| Number of Memory Slots | 2 |
| Memory Form Factor |
|
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported |
|
| Intel Optane Memory Ready | Yes |
| Controller Type | Serial ATA/600 |
| Intel RST | Yes |
| RAID Supported | Yes |
| RAID Levels |
|
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of USB Ports | 10 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 5 |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 5 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.2 Ports | 5 |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 9.61" (244 mm) |
