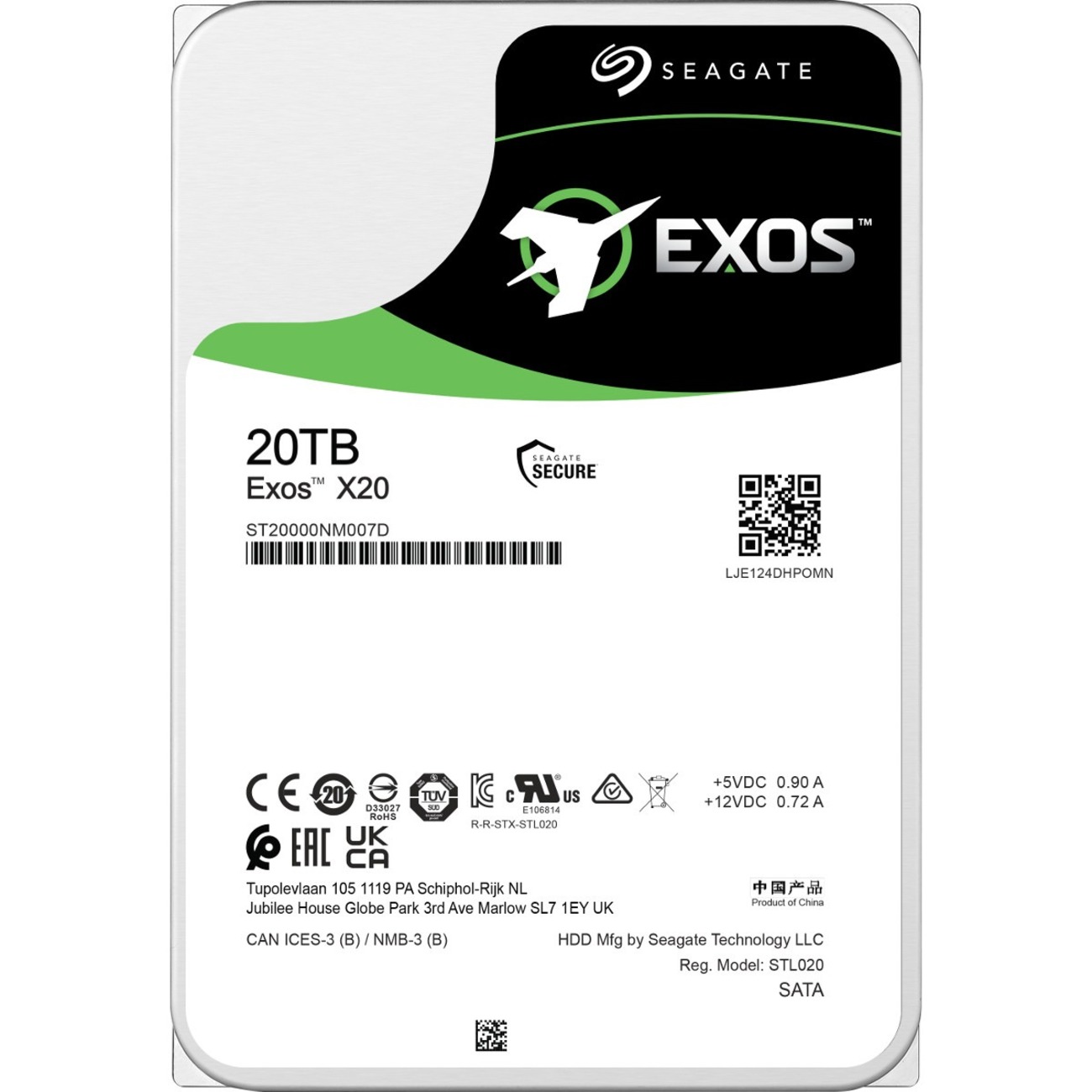

Seagate Exos X20 ST20000NM007D 20 TB Hard Drive - Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method

Part No. ST20000NM007D

by Seagate Technology

Seagate Exos X20 ST20000NM007D 20 TB Hard Drive - Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method

Storage System, Video Surveillance System Device Supported - 7200rpm - Hot Pluggable - 512e/4Kn Format

Part No. ST20000NM007D

by Seagate Technology

$774.99
General Information
ManufacturerSeagate Technology
Manufacturer Part NumberST20000NM007D
Brand NameSeagate
Product LineExos
Product SeriesX20
Product ModelST20000NM007D
Product NameExos X20 ST20000NM007D Hard Drive
Marketing Information"Designed with the highest rack-space efficiency and protected with Seagate Secure™ Exos X20 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind."

Maximum Storage Capacity for Highest Rack Space Efficiency

Market-leading 20 TB HDD offering the highest capacity available for more petabytes per rack

Highly reliable performance with enhanced caching, making it the logical choice for cloud data centre and massive scale-out data centre applications

Hyperscale SATA model tuned for large data transfers and low latency

PowerBalance™ feature optimises Watts/TB

Maximise total cost of ownership savings through lower power and weight with helium sealed-drive design

Proven helium side-sealing weld technology for added handling robustness and leak protection

Digital environmental sensors to monitor internal drive conditions for optimal operation and performance

Data protection and security - Seagate Secure features for safe, affordable, fast and easy drive retirement

Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
Product TypeHard Drive
Technical Information
Storage Capacity20 TB
Recording TechnologyConventional Magnetic Recording (CMR)
Disk Format512e/4Kn
Drive Performance
Random 4KB Read168000IOPS
Random 4KB Write550000IOPS
Spindle Speed (rpm)7200
Buffer256 MB
Network & Communication
Wireless LANNo
Interfaces/Ports
Drive InterfaceSATA
Drive Interface StandardSATA/600
Physical Characteristics
Drive TypeInternal
Hot PluggableYes
Height1.03" (26.10 mm)
Width4.01" (101.85 mm)
Depth5.79" (147 mm)
Weight (Approximate)1.48 lb (670 g)
Miscellaneous
Device Supported
  • Storage System
  • Video Surveillance System
ConditionNo
UPC0763649153116
