Atlona Velocity All-In-One Touch Panel with Gateway

Part No. AT-VTPG-1000VL-BL

by Atlona Technologies

Atlona Velocity All-In-One Touch Panel with Gateway

Wired

Part No. AT-VTPG-1000VL-BL

by Atlona Technologies

$2814.99
General Information
ManufacturerAtlona Technologies
Manufacturer Part NumberAT-VTPG-1000VL-BL
Brand NameAtlona
Product ModelAT-VTPG-1000VL-BL
Product NameVelocity All-In-One Touch Panel with Gateway
Marketing InformationThe Atlona AT-VTPG-1000VL is a Velocity System 10" touch panel with integrated Velocity gateway. This all-in-one touch panel solution simplifies configuration and deployment for installations that only require control of a single room or AV system. Setup of the VTPG-1000VL is easy. The intuitive, browser-based configuration guides you through adding AV equipment to the room, creating user interfaces, and specifying control macros.

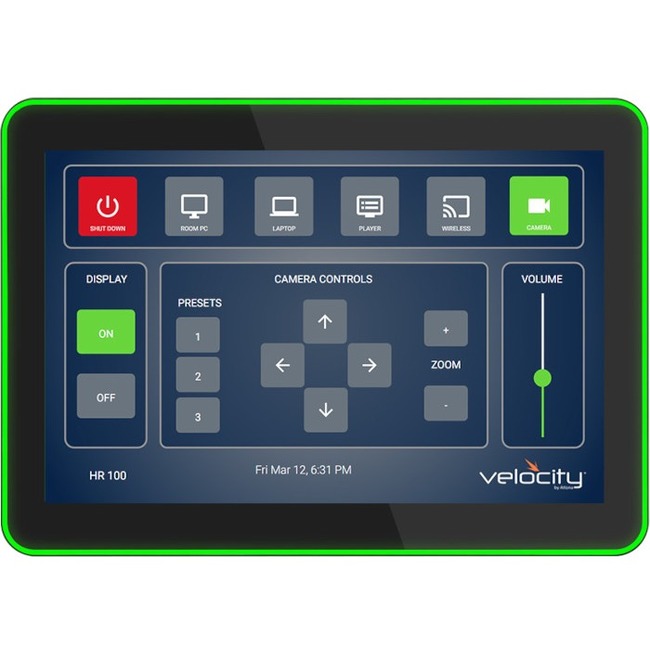

The large 10" touch panel features contemporary, refined styling with 1280×800 native resolution, and a capacitive glass surface. Bright LED lighting surrounding the edge of the panel is ideal for providing a visual representation of room status or for adding emphasis to AV control functions.

Applications

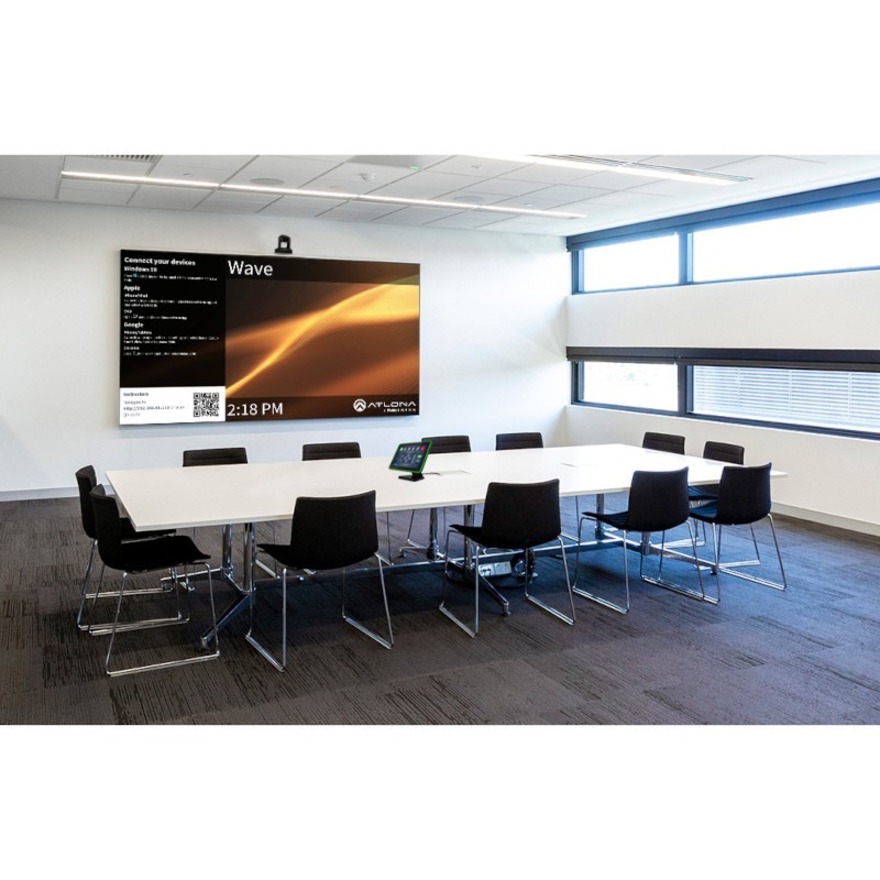

  • Conference room / Classroom
Ideal for meeting and education spaces that would benefit from a self-contained touch panel AV control system.

  • Divisible Room
All-in-one AV control and user interface solution for rooms that support multiple configurations via movable walls.

  • Hospitality / Retail
Allows restaurants, bars, hotels, or retail locations to have all-in-one touch panel control of displays, background music, digital signage, or video walls.
Product TypeA/V Control Panel
Technical Information
Connectivity TechnologyWired
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Form FactorWall Mountable
Height10.04" (255.02 mm)
Width7.13" (181.10 mm)
Depth0.98" (24.89 mm)
Weight (Approximate)648.6 g
Miscellaneous
Additional Information

Display

  • Panel 5 point touch projected capacitive
  • Resolution 1280 x 800
  • Aspect Ratio 16:10 wide
  • Contrast Ratio 800:1
  • Viewing Angle H 160o / V 160o
  • Viewing Area 10.1" LCD
  • Brightness 500 cd/m2

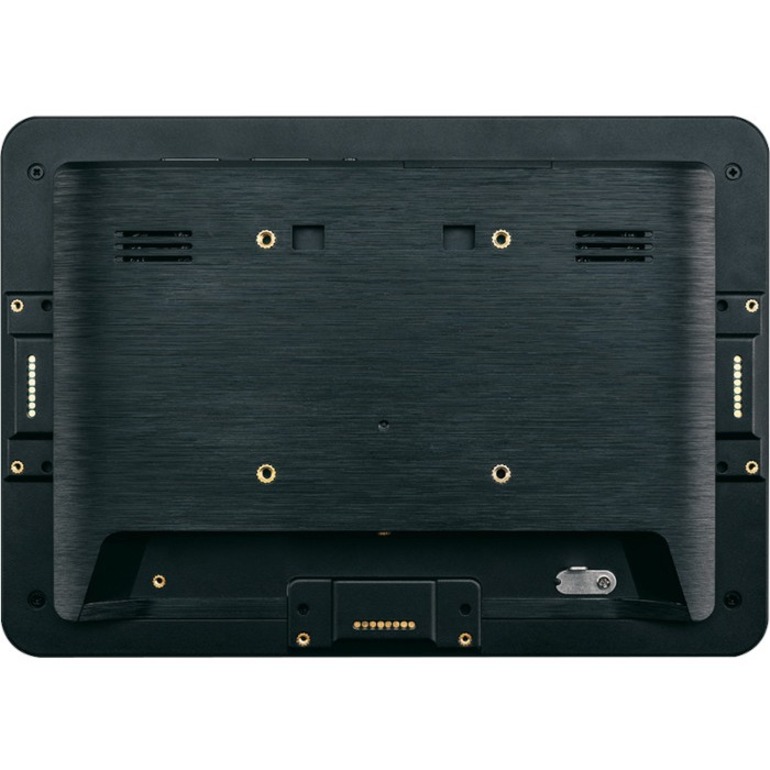

Mount
  • Standard VESA 75
  • Type Wall and glass
Audio
  • Speaker 2 x 2 W
IP
  • Port 1 x RJ45
  • Standards and Protocols DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, IEEE 802.1x
  • Ethernet Speed 10/100/1000 Mbps
  • Addressing DHCP, static
Temperature

Fahrenheit
  • Operating 14 to 122
  • Storage -5 to 149
  • Humidity (RH) 10% to 90%, non-condensing
Celsius
  • Operating -10 to 50
  • Storage -15 to 65
  • Humidity (RH) 10% to 90%, non-condensing
Power
  • PoE 802.3af/at compliant
Application/Usage
  • Conference Room
  • Classroom
  • Restaurant
  • Bar
  • Hotel
Environmentally FriendlyYes
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
ConditionNo
UPC846352007102
