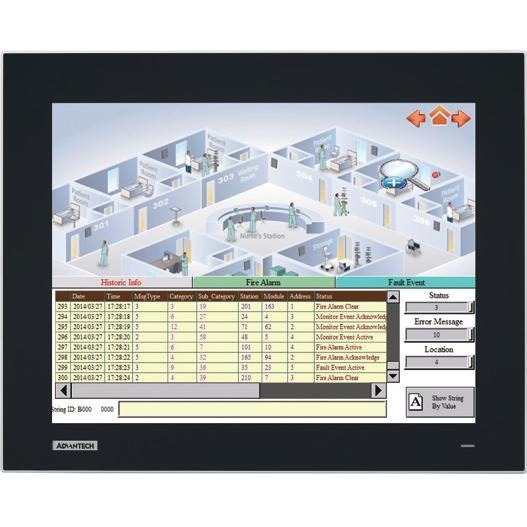

Advantech FPM-219 19" Class Open-frame LCD Touchscreen Monitor
19" Viewable - 5-wire Resistive - 1280 x 1024 - SXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 350 cd/m² - LED Backlight - HDMI - USB - VGA - DisplayPort
$1471.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | FPM-219-R9AE |
| Brand Name | Advantech |
| Product Series | FPM-200 |
| Product Model | FPM-219 |
| Product Name | 19" SXGA Industrial Monitor with Resistive Touch Screen (24Vdc) |
| Marketing Information | In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications. |
| Product Type | Open-frame LCD Touchscreen Monitor |
Technical Information
| Screen Size Class | 19" |
| Viewable Screen Size | 19" |
| Screen Mode | SXGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Mount Type |
|
| Backlight Technology | LED |
| Features |
|
| Ingress Protection (IP) Rating | IP66 |
Video
| Maximum Resolution | 1280 x 1024 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 350 cd/m² |
Touchscreen Information
| Touchscreen Type | 5-wire Resistive |

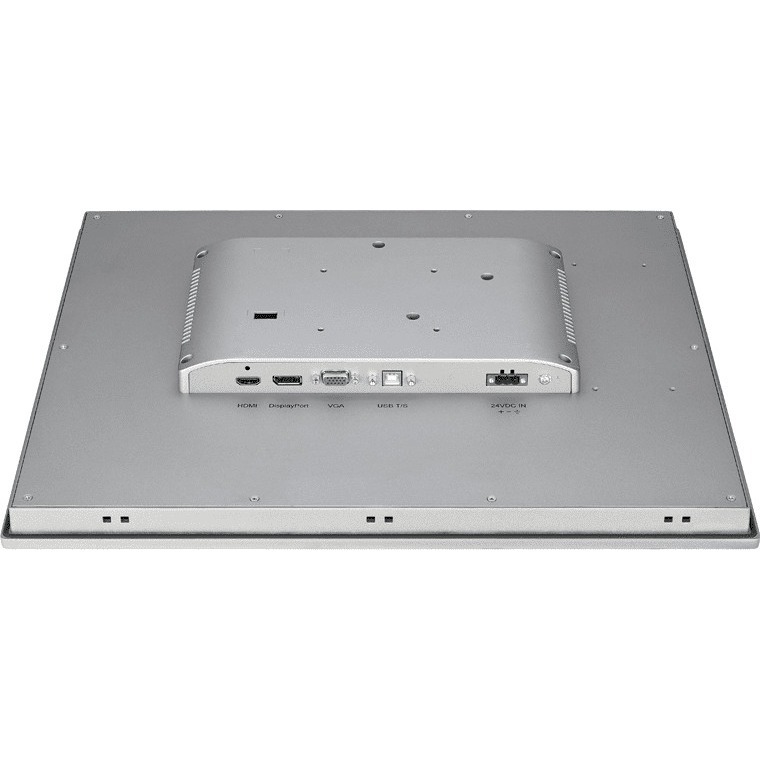

Interfaces/Ports
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of VGA Ports | 1 |
Physical Characteristics
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Height | 14.95" (379.80 mm) |
| Width | 17.87" (454 mm) |
| Depth | 2.03" (51.50 mm) |
| Weight (Approximate) | 13.67 lb (6200 g) |
