Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock

Part No. 40B10135US

by Lenovo Group Limited

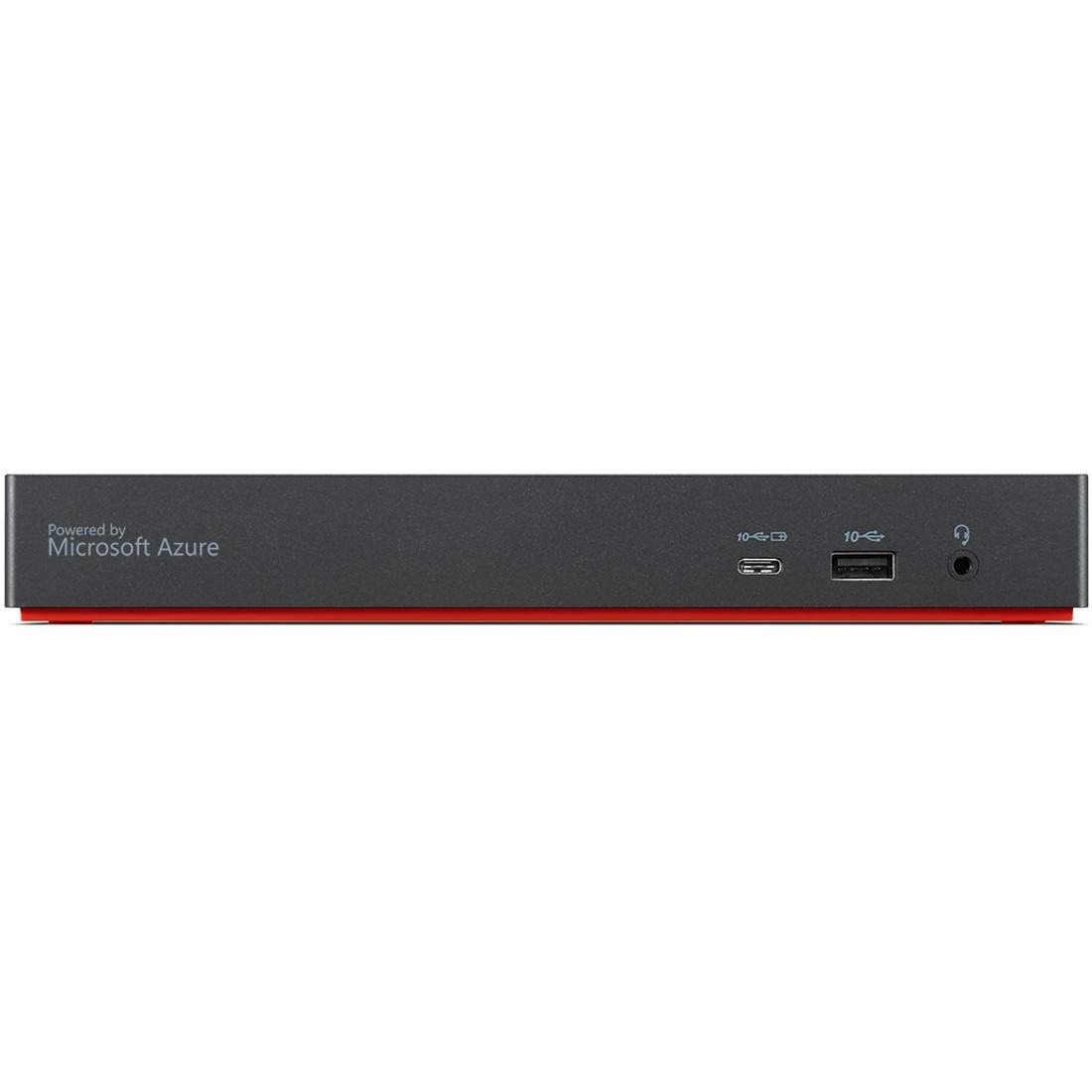

Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock

for Notebook, Desktop PC - 100 W - USB Type C, Thunderbolt 4 - 4 Displays Supported - 4K, 8K - 3840 x 2160, 7680 x 4320 - 5 x USB Ports - 4 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - DisplayPort - Black, Red - Thunderbolt - Wired - Gigabit Ethernet - Windows

Part No. 40B10135US

by Lenovo Group Limited

$506.99
General Information
ManufacturerLenovo Group Limited
Manufacturer Part Number40B10135US
Brand NameLenovo
Product NameThinkPad Universal Thunderbolt 4 Smart Dock
Marketing Information

A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it's all powered by Microsoft Azure Sphere.

Features include:

  • One Cable For All Your Needs: The ThinkPad Universal Thunderbolt™ 4 Smart Dock adds 11+ productivity-enhancing ports to your PC in a single cable. With support for one 8K monitor or up to four 4K monitors, 40 Gbps data speeds via Thunderbolt™ 4,
    and 10 Gbps via USB-A, and rapid-charging for up to 100W laptops, you can drastically expand the potential of your workspace with ease.
  • Universal Dock Compatibility: Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt™ 4 Smart Dock that supports Thunderbolt™ 3 and 4, USB 4™, USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks.
  • Innovative Remote Management: Enter a new age of dock management with efficiency-enhancing innovations such as remote firmware updates without a PC connected, remote port management, data analytics reporting, diagnostic tools, and Microsoft Azure Sphere security solution that aim to streamline the workflow of IT managers and boosts their productivity.
Product TypeDocking Station
Technical Information
Connectivity TechnologyWired
Device Supported
  • Notebook
  • Desktop PC
Number of Displays Supported4
Screen Mode Supported
  • 4K
  • 8K
Supported Resolutions
  • 3840 x 2160
  • 7680 x 4320
Network & Communication
Ethernet TechnologyGigabit Ethernet
Interfaces/Ports
Host Interface
  • USB Type C
  • Thunderbolt 4
Total Number of USB Ports5
Number of USB Type-A Ports4
Number of USB Type-C Ports1
USB Type-AYes
USB Type-CYes
Network (RJ-45)Yes
Number of RJ-45 Ports1
Number of DisplayPort Outputs2
DisplayPortYes
DisplayPort Version1.4
Headphone/Microphone Combo PortYes
Number of HDMI Outputs1
Number of HDMI Ports1
HDMIYes
HDMI Version2.1
ThunderboltYes
Thunderbolt Ports Quantity2
Software
Operating System SupportedWindows
Power Description
Maximum Power Supply Wattage100 W
Physical Characteristics
Color FamilyDual Color
Product Color
  • Black
  • Red
Height1.18" (30 mm)
Depth3.15" (80 mm)
Weight (Approximate)1.01 lb (460 g)
Miscellaneous
Package Contents
  • ThinkPad Universal Thunderbolt 4 Smart Dock
  • 135W Adapter
  • 1 x Power Cable
  • Standard Thunderbolt Cable
Compatibility

Lenovo ThinkPad Notebook

Brand CompatibilityLenovo
ConditionNo
UPC0195348677332
Warranty
Limited Warranty3 Year
